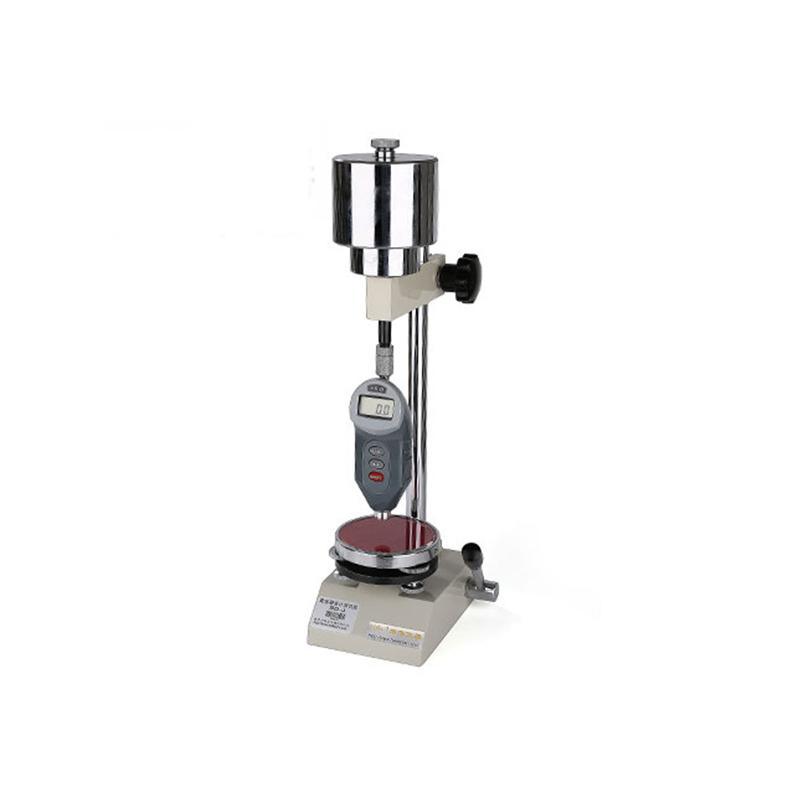

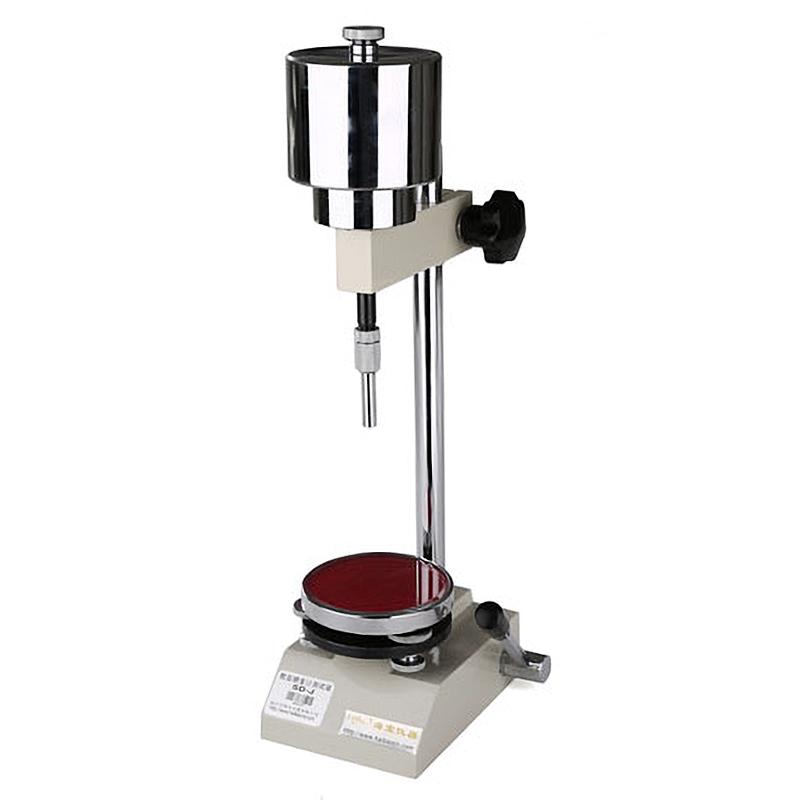

Digital Shore Durometer Test Rack SD-J Hypertherm, specially equipped with digital display type D Shore Durometer

SD-J

Digital Hardness Gauge

Column lifting space ≤ 180mm, Dimension 165 * 145 * 400mm, weight 9kg, with reference to "JB/T6148-2017", "GBT531.1-2008/ISO7619-1:2004" standard.

product description

Haibao SD-J digital display Shore Hardness Tester test stand is a new D-type digital display Shore Hardness Tester special support produced by Haibao. It has the advantages of good test stability, scientific structure design, and firm test platform. D When the digital display Shore Hardness Tester is installed on the SD-J digital display Shore Hardness Tester for hardness testing, the user does not need to equip a special test hardness block, and can directly test, which makes the test not only economical but also convenient.

Instructions

1. Put the sample on the circular platform, loosen the star-shaped handle on the cross arm of the SD-J digital display Shore hardness Tester ;

2. Adjust the height of the cross arm until the bottom surface of the indenter of the Shore Hardness Tester is about 5mm away from the tested surface of the sample;

3. Tighten the star-shaped handle on the cross arm of the SD-J digital display Shore hardness Tester ;

4. Press down the handle to make the Shore Hardness Tester read within 1 second when the presser foot and the sample are fully in contact with the weight of the fixed load. The value displayed by the Hardness Tester is the hardness value of the tested sample.

5. In order to improve the test accuracy, test about 5 times at different positions with a distance of at least 6mm between the measuring points and take the average value.

Pictures

maintenance measures

Every moving part of Haibao SD-J digital display Shore hardness test stand should always be filled with No. 20 lubricating oil. After the test, the Shore hardness test stand should be wiped clean to prevent moisture, and a small amount of anti-rust oil should be applied.

Packing list：Testing device rack x1, warranty card x1, certificate x1, manual x1, instrument case x1

[Note]Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
