OHAUS ohaus PX6201ZH/E Intelligent Analytical Balance External Calibration, weighing 6200g

SE
OHAUS PX6201ZH/E Intelligent Analytical Balance is imported from the United States, using stainless steel pan, PX6201ZH/E Weighing range of 20~6200g, is a one percent electronic intelligent Analytical Balance, external calibrated standard test weight.
Model：
Contact
Details SPEC VIDEO CAT OI

Ohaus PX6201ZH/E Precision BalanceSPEC

Ohaus PX6201ZH/E Precision BalanceDetails

Ohaus PX6201ZH/E Precision BalancePacking list

SKU
NB014079
Weighing range
20g~6200g
Minimum Weight
20g
Readability
0.1g
Nonlinear error
±0.2g
Repeatability Error
0.1g
Test Weight
Standard
Adjustment
Externally calibrated
Stabilization time
1s
Operating Conditions
10~30 ℃, 80% RH, non-condensing
Pan Size
120mm
Power supply Voltage
AC adapter (standard)
Net Weight of instrument
3500g
Dimensions
98*321*209mm
Packaging Dimensions
507*387*531mm
Interface
RS-232、USB
monitor
Backlit dual-row LCD display
Pan Material
stainless steel
Tare Range
De-tare Weight function
Measurement unit
Carat; Custom; Grain; Gram; Two (Hong Kong, China); Kilogram; Mesghal; Milligram; Momme; Newton; Ounce; Ounce (Balanced); Bennywitt; Pound; Two (Singapore); Two (Taiwan, China, China); Tikka; Drag
temperature drift
±3PPM/K
Minimum Weight
0.82g
PX6201ZH/E
Precision Balance

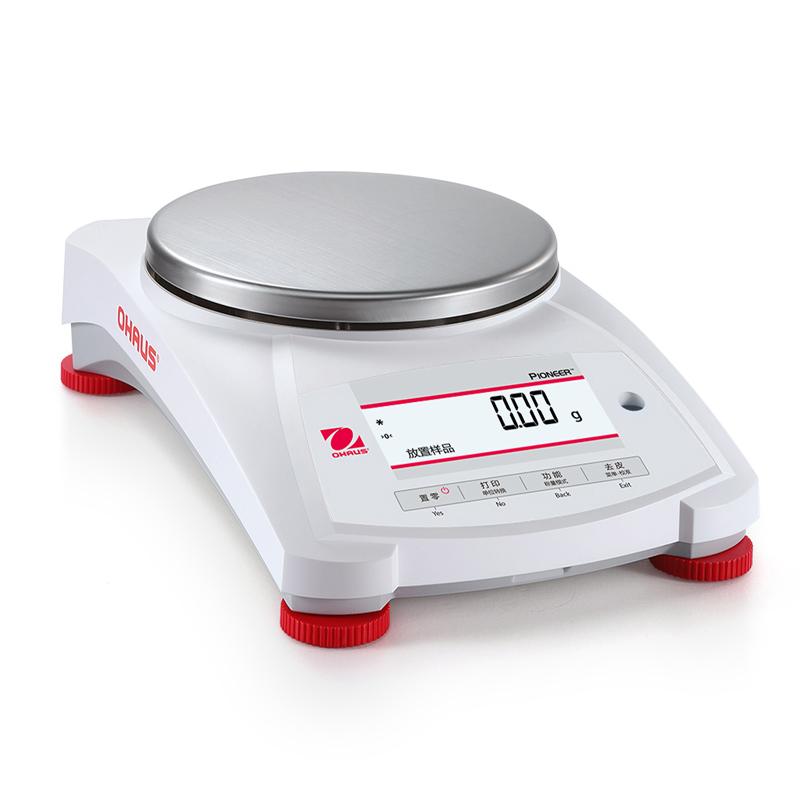

OHAUS ohaus PX6201ZH/E Intelligent Analytical Balance External Calibration, weighing 6200g Picture

OHAUS Precision Analytical Balances are available in the full range of models

Introduction

OHAUS OHAUS PX5202ZH/E precision analytical balances are designed to meet the precise needs of a wide range of applications in the laboratory, industry and education, with affordable PX balances, intuitive displays, Chinese tips on the second line, and USB and RS232 communication interfaces as standard.

Product structure diagram

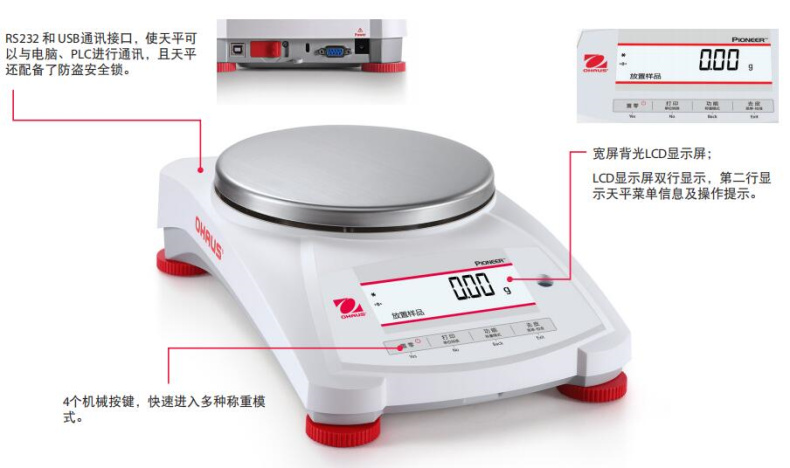

OHAUS PX6201ZH/E intelligent analysis balance structure diagram

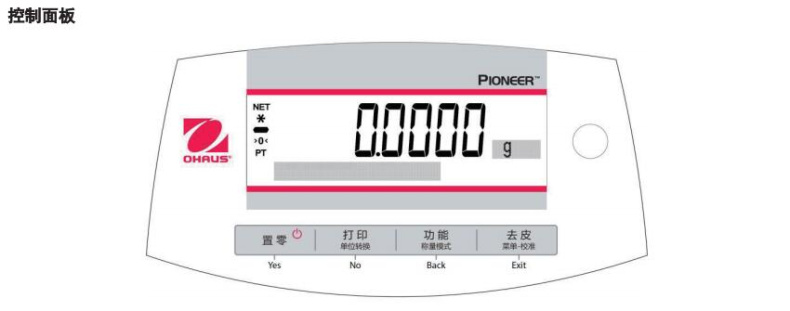

Detail of the control panel of the OHAUS PX6201ZH/E Intelligent Analysis Balance

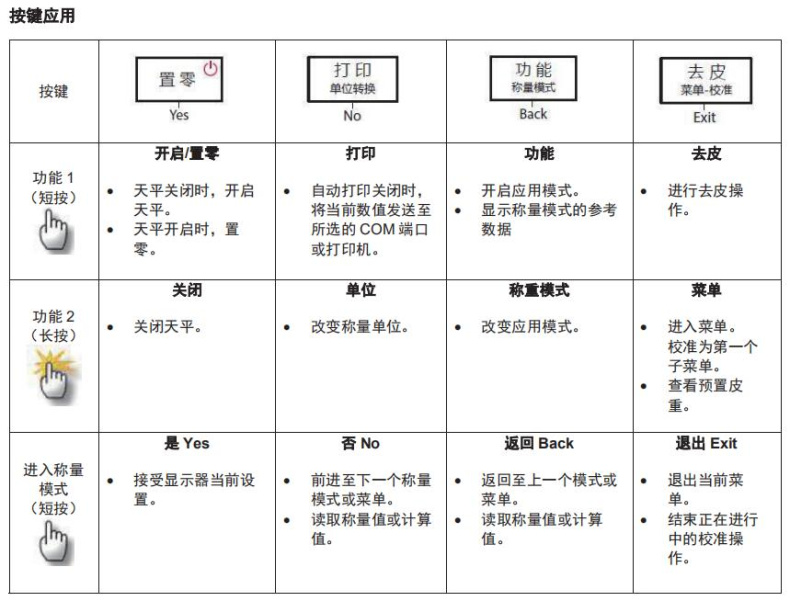

OHAUS PX6201ZH/E intelligent analysis balance button application diagram

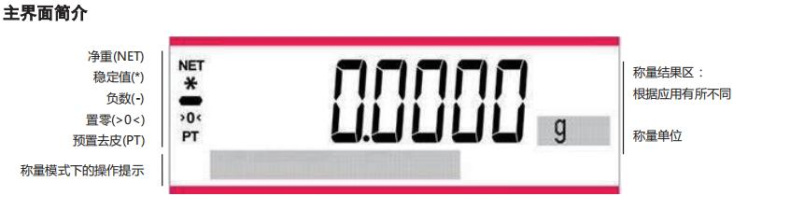

Description of the parameters of the main interface of the OHAUS PX6201ZH/E intelligent analysis balance

Features

1. Application

Basic weighing, piece weighing, percentage weighing, checkweighing, animal weighing, density determination

2. Display screen

Widescreen backlit LCD display, second line showing balance menu information and operating tips.

3. Power supply

Power adapter (standard)

4. Communication

RS232 and USB communication interface (standard), GLP/GMP real-time clock

5. Structure

Aluminum die-cast metal base, plastic case, detachable stainless steel weighing pan, glass Wind Shield, under-hanging scale hook, anti-theft lock, protective cover, dust cover

6. Design features

User-adjustable environmental parameters and brightness, auto-tare and auto-dimming, range-configurable calibration points, software lock and reset menus, adjustable communication settings and data printing options, user-definable project name and user ID, software overload/underload indicator, stability indicator, four operating languages.

Comparison of OHAUS PX series models

Comparison of the parameters of the OHAUS PX6201ZH/E intelligent analysis balance with the model series

FAQ
QMeet JB/T7443 Precision Balance
A PX6201ZH/E Precision Balance, please refer to it.
QMay I ask the United States Ohaus analytical balance shows underload, how to solve?
A Put the pan on the Balance.
QDoes the OHAUS analytical balance PX6201ZH/E have a weighing unit for grains?
A Hello, yes.
