Digital Microscope LD6184 TQC LCD display 20~500 times
LD6184
TQC sheen LD6184 USB MicroscopeSPEC
TQC sheen LD6184 USB MicroscopeDetails

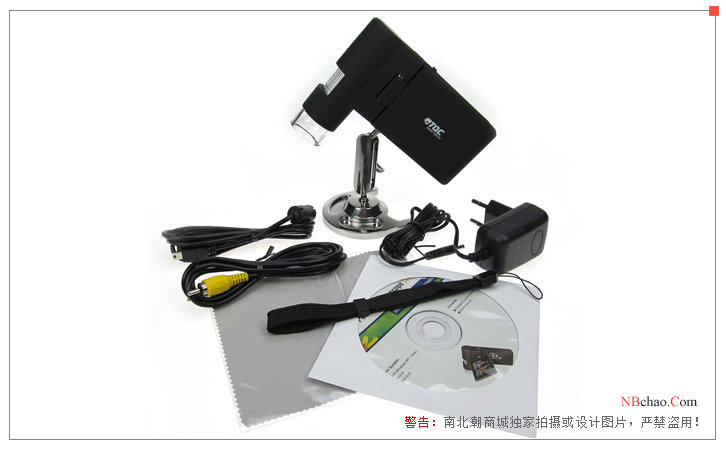

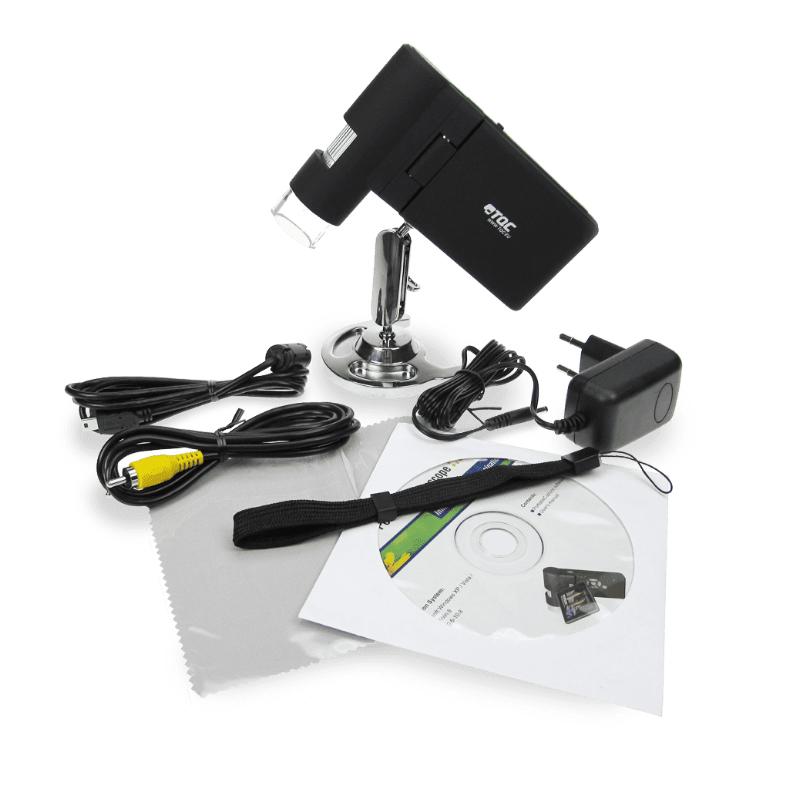

TQC sheen LD6184 USB MicroscopePacking list
- SKU
- NB001412
- Picture Sensors
- 5M High Quality Image Sensors
- Total Magnification
- 20X~200X~500X
- Resolution
- 12M，8M，5M，3M，1.3M，VGA
- lens
- High Quality Microscope
- Display
- 3-Inch TFT screen, 4:3 ratio
- Light source
- 8 LEDs with adjustable luminance
- Power Supply
- Lithium-ion battery 3.7V/800mAh
- Working time
- 4 hours (Charging time 5 hours)
- frame rate
- 30fps
- Transformer
- Input: 100-240V, 50/60HZ - Output: 5V, 1A
- OSD language
- English/German/French/Spanish/Italian/Portuguese/Japanese/Chinese
- software language
- English/German/French/Spanish
- Measurement
- Through software
- Dimensions
- 130x130x29mm

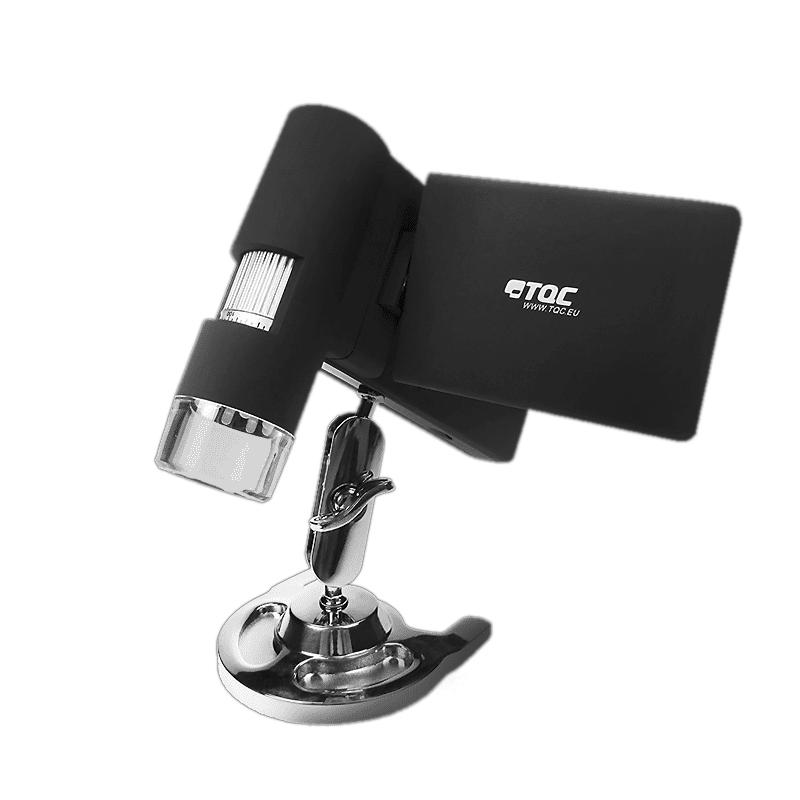

Overview
The TQC LD6184 USB Digital Microscope is a portable digital microscope with LCD display, through:brightnessadjustabletargetThe 8 integrated white LEDs are illuminated and connected to a PC via a USB interface for observation and detection using dedicated software.LD6184 USB digital microscope is availableAt 200x magnification (500x digital), it is possible to observe microstructures or other very obvious objects on the surface.The LD6184 USB digital microscope is ideal for analyzing coating failures, defects, pre-treatment quality, and other issues. This USB digital microscope can be used in direct contact with the viewing surface or at a large distance.
LD6184 USB Digital MicroscopeEquipped withYesEditing and productionVideotargetDedicated software. With this software,The length, width, height, and radius angle of the measurement sample radius can be determined.
Application
The LD6184 USB digital microscope is suitable for:Protective Coatings, Corrosion Control, Coatings Laboratory, Coatings Production, Decorative Coatings, Constructionmaintenance and other fields.
Features
1、LD6184 USB Digital MicroscopeSimple to use
2. 3-inch TFT display
3. Magnification 20 times ~ 200 times ~ 500 times (digital)
4. Data form: pictures and videos
5. Support MicroSD card, up to 32GB
6. Free driver download for Windows XP SP2 / VISTA / Win7 / Win8 and MAC OS 10.6 to 10.8 system
7. Clear vision without reflection
8. Lithium battery (rechargeable and replaceable)
9. Professional but easy-to-use software to edit and detect analysis

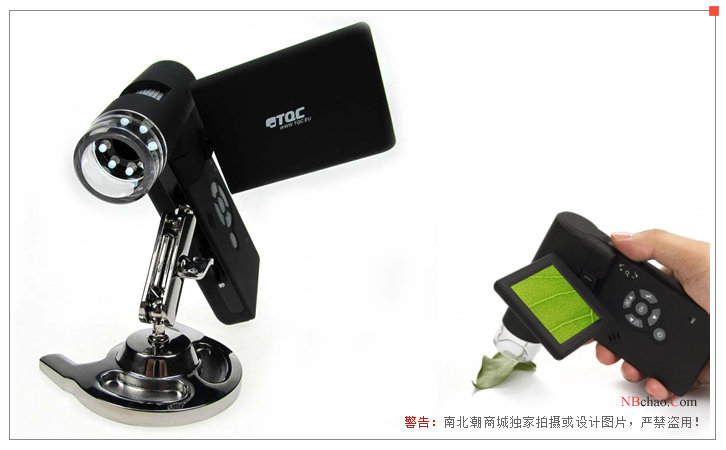

Product structure features
| 1. Catcher | 7、lens | 13. a battery compartment | 19. Left/backward |
| 2. Zoom in/out | 8. Install the tripod | 14. TFT display | 20. Power on/off |
| 3. TV output | 9. MicroSD card slot | 15. UP color mode switch | 21. a speaker |
| 4. USB interface | 10. a wristband hook | 16. Menu settings | 22、Microphone |
| 5. DC input | 11. a focus wheel | 17. OK OK OK key | 23. a battery charging indicator |
| 6. AUX LED light | 12. LED brightness dial | 18. Downward |

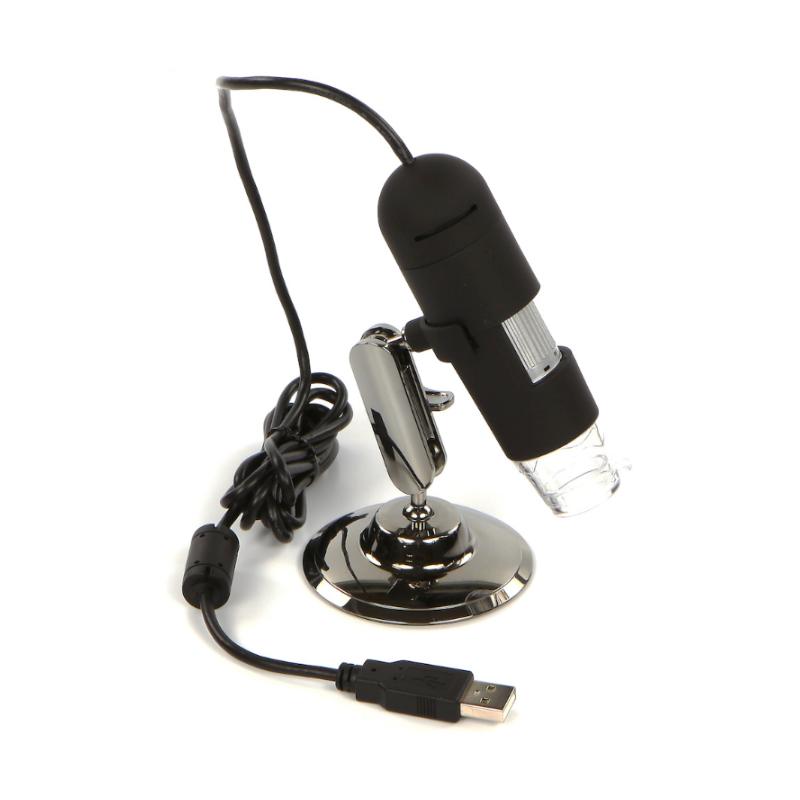

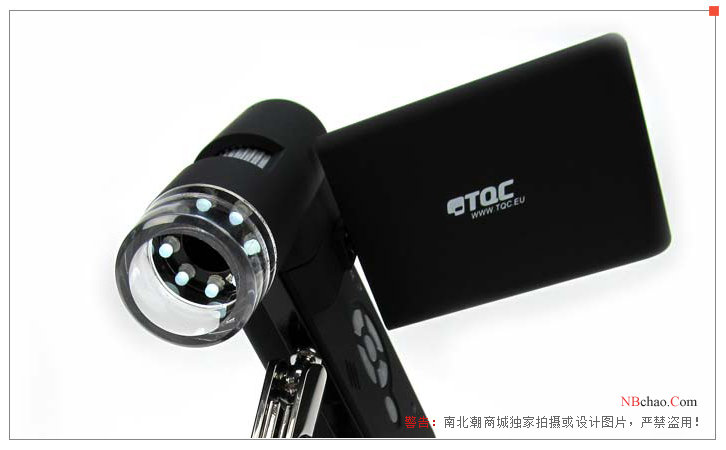

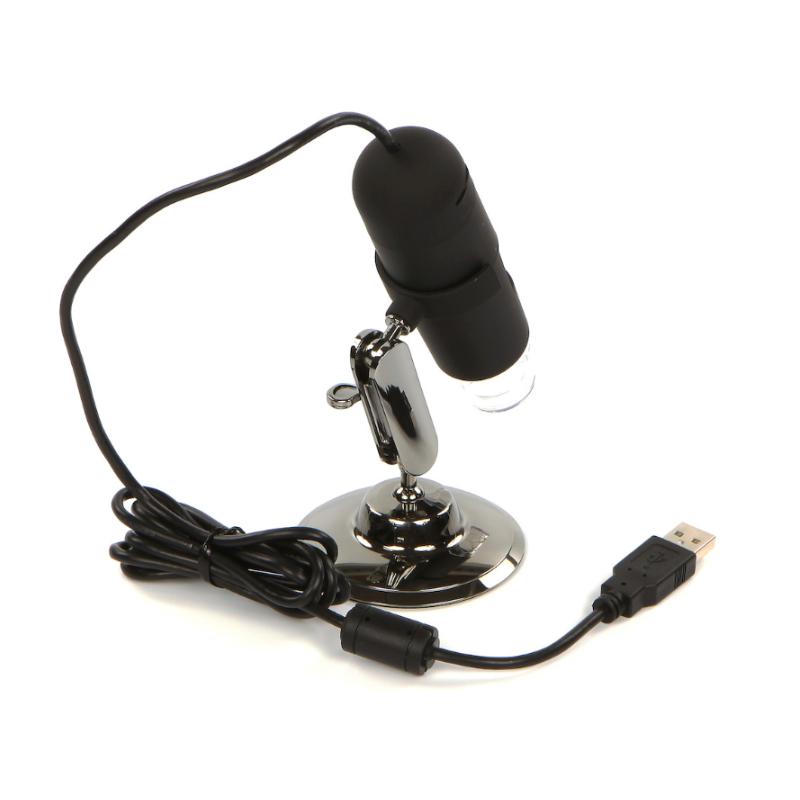

Product display diagram
