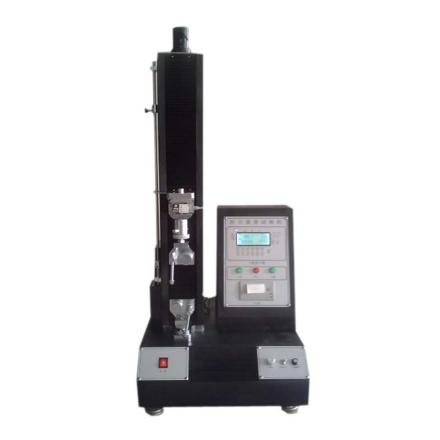

FaRui FR-108 Desktop touch screen Tensile Tester Electronic tensile machine Specifications
Search
Brand：FaRui
Model：FR-108
Name：Desktop touch screen Tensile Tester Electronic tensile machine
Specifications
| Maximum load | 100KG American Shiquan High Precision Sensors |
| Capacity selection | 1Kg, 5KG, 10KG, 20KG, 50KG, 100kg can be selected |
| Force unit | Kg 、 lb 、 N |
| Measurement system | Load cell + monitor |
| Load measurement Accuracy | Load cell + monitor ± 0.5% (5% -100% of full scale) |
| Force value resolution | 1/100000 |
| 力值Accuracy | ±0.1%(20～100％FS) |
| Force Sensors Type | 1mV/V,2mV/V,3mV/V,4mV/V,8mV/V,9.6mV/V |
| Applicable Force Sensors Range | 1～1000000N |
| Extensometer resolution | 1/100000, sampling frequency 50 times/sec |
| Extensometer Accuracy | Indication ± 0.1% (20~100% FS) |
| displacement resolution | Determined by the mechanical system and photoelectric encoder, generally up to 0.001mm |
| displacement resolution | Instrumentation system without error |
| Test speed range | 50~500mm/min |
| Speed Accuracy | Indication ± 1% |
| Force channel | Four. |
| Displacement channel | two |
| Control frequency conversion motor | 0～10V |
| Pulse output mode | Stepless speed regulation of servo motor |
| Micro printer | optional |
| Adapt to a variety of raster encoders, pulse number range | 100~65535 |
| Force unit | <--sep--0/>: kNNkgfgftlbf<--sep--0/>: mmcmin |
| Return function | automatic |
| Overload protection | Configurable |
| Safety Devices | Overload, emergency stop device, up and down stroke limiting device |
| Column shell material | Electrostatic paint material |
| Power System | AC motor |
| power | 120W |
| Dimensions | 450*550*1400mm |
| Weight | 55kg |
| Power | 1F ， 220V ， 15A |
| Displacement unit | mm/cm/in |
Packing list
Host X1, manual X1, certificate X1, warranty card X1, fixture X1 (set)
After-sales instructions
Warranty days: 365 days
1. The manufacturer provides 1 year warranty, and the manufacturer will repair any product quality problems during the warranty period;
2. The manufacturer provides door-to-door delivery, installation and training services (corresponding travel expenses need to be charged);
[Note] For after-sales services outside the Chinese mainland, if the instrument requires repair, the shipping and possible associated taxes shall be borne by the sender. Generation address of the manual: http://en.nbchao.com/p/14126/Specification.html , which is only used by users who purchase commodities from the NBCHAO.
