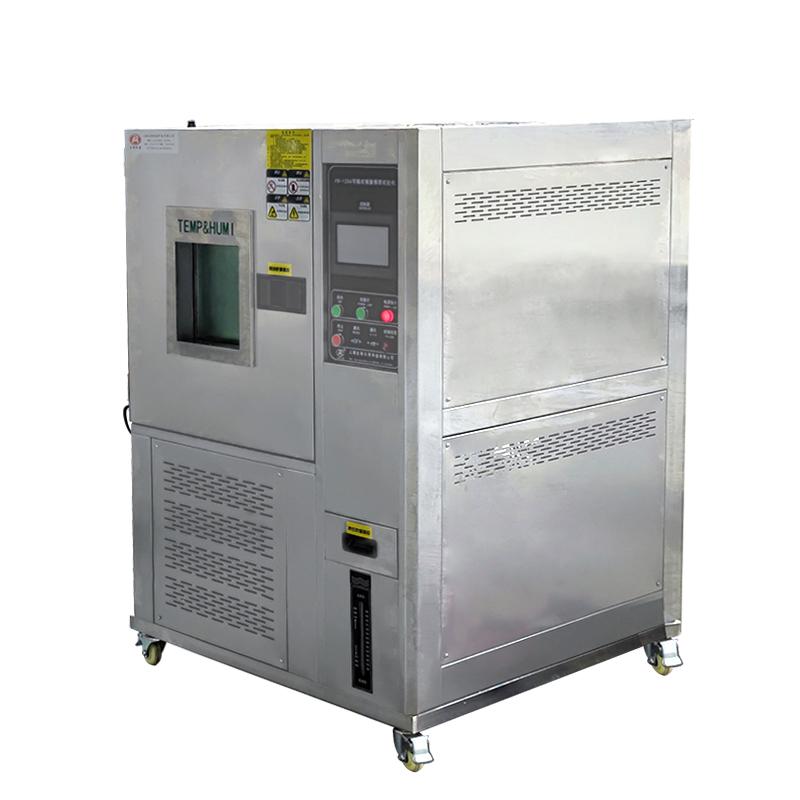

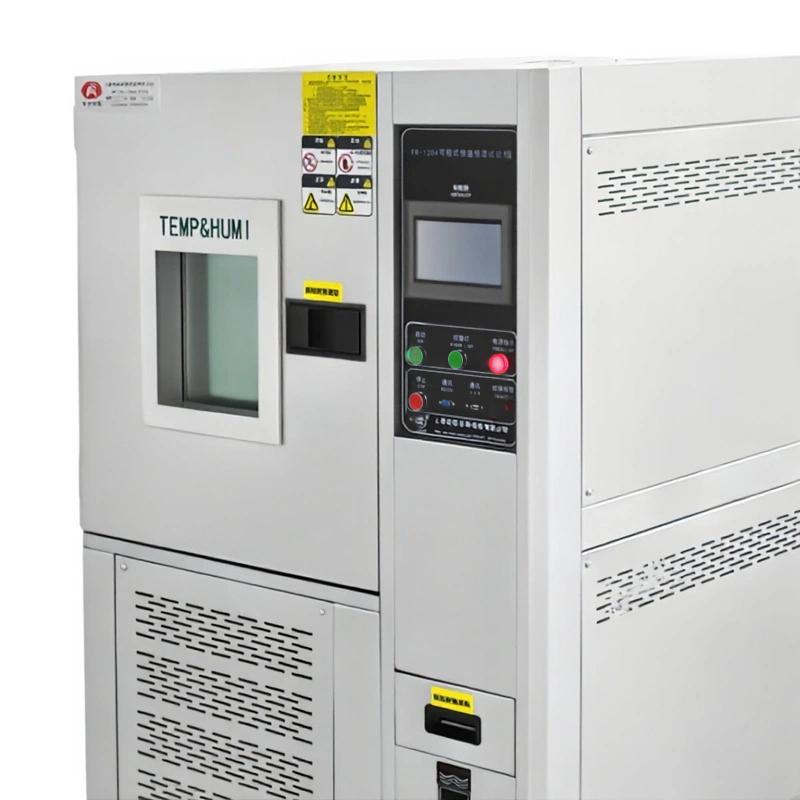

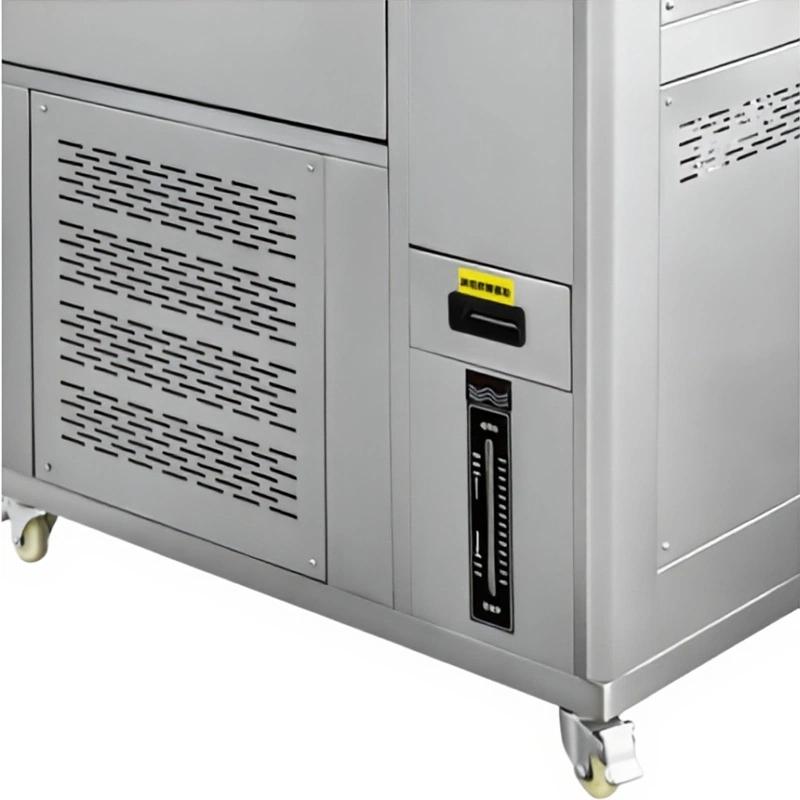

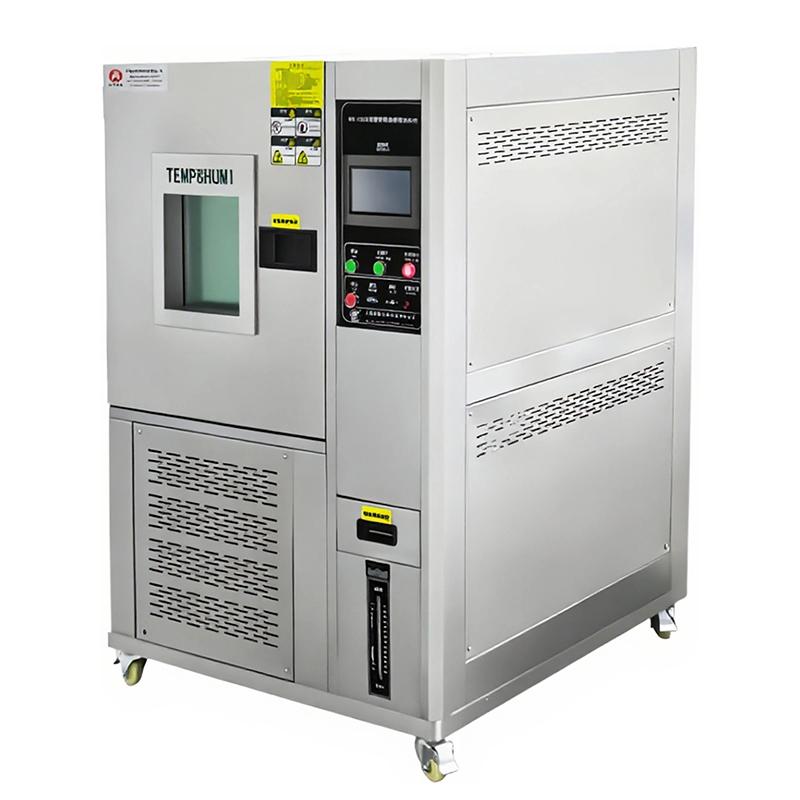

FARUI FR-1204-80 Programmable Constant Temperature & Humidity Test Chamber -40~150 ℃/80L

FR-1204-80

Programmable Constant Temperature & Humidity Test Chamber

Programmable control, temperature control -40 ℃~ + 150 ℃, humidity control 20~98% R.H., working volume 80L, double-decked box door, Philips outer box light source, with external water supply system.

Suitable for electronics, plastic products, electrical appliances, instruments, food, vehicles, metals, chemicals, building materials, aerospace, ... and other products for quality testing. This machine specializes in testing the performance of various materials for heat resistance, cold resistance, dry resistance, and moisture resistance. This machine can choose Chinese or English LCD touch screen screen, simple operation, easy program editing. It can display complete data related to the operation status of the system, execution and setting program curves. In the event of an abnormal condition during operation, the screen will automatically display the cause of the fault and provide a method for troubleshooting.

Equipment features:

1. High texture appearance, the body adopts arc shape, the surface is treated with matte stripes, and the plane non-reaction handle is adopted, which is easy to operate, safe and reliable.

2. The rectangular multi-layer glass viewing window can be used for the observation of test specimens in the test, the window is equipped with a sweatproof electric heater device to prevent water vapor from condensing and water droplets, and a high-brightness PL fluorescent lamp to keep the box illuminated.

3. The double-layer isolation of the door is airtight, which can effectively isolate the internal temperature leakage.

4. It has an external water supply system, which is convenient for replenishing the water supply of the humidification barrel and automatically recycling.

5. The compressor circulation system adopts lubricating oil that can effectively remove the condenser pipe and capillary, and the whole series adopts environmentally friendly refrigerants (R23, R404, R507).

6. The controller adopts imported LCD display screen, which can display the measured value, set value and time at the same time.

7. The controller has multi-stage program editing and temperature and humidity can be controlled quickly (OUICK) or slope (SLOP).

8. The built-in moving pulley is easy to move and place, and has a strong positioning screw fixed position.

Meet the criteria

1. GB 11158 technical conditions for high Temperature Test Chamber

2. GB 10589-89 Technical conditions for low Temperature Test Chamber

3. GB 10592-89 technical conditions for high-low Temperature Test Chambers

4. GB/T 10586-89 Technical conditions for damp heat Test Chamber

5. GB/T 2423.1-2001 Low Temperature Test Chamber test method

6. GB/T 2423.2-2001 High Temperature Test Chamber test method

7. GB/T 2423.3-93 Test method for damp heat Test Chamber

8. GB/T 2423.4-93 Alternating damp heat test method

9. GB/T 2423.22-2001 Temperature change test method

10. IEC 60068-2-1.1990 Test Method for Low Temperature Test Chambers

11. IEC 60068-2-2.1974 High Temperature Test Chamber Test Method

12. GJB 150.3 High temperature test

13. GJB 150.4 Low temperature test

14. GJB 150.9 Damp heat test

Available Specifications

Packing list：host X1, manual X1, certificate X1, warranty card X1

[Note]Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
