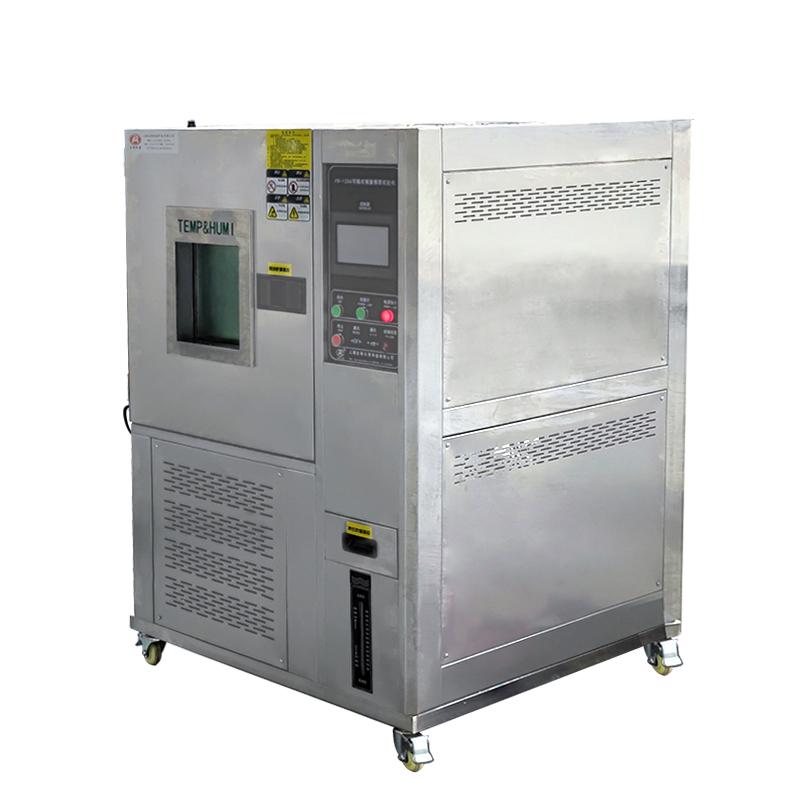

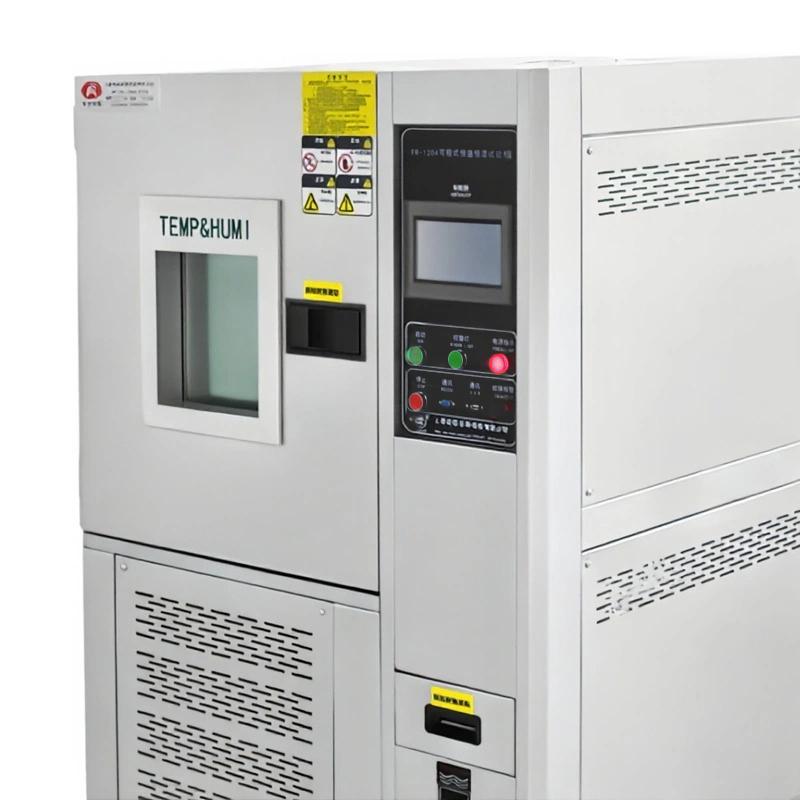

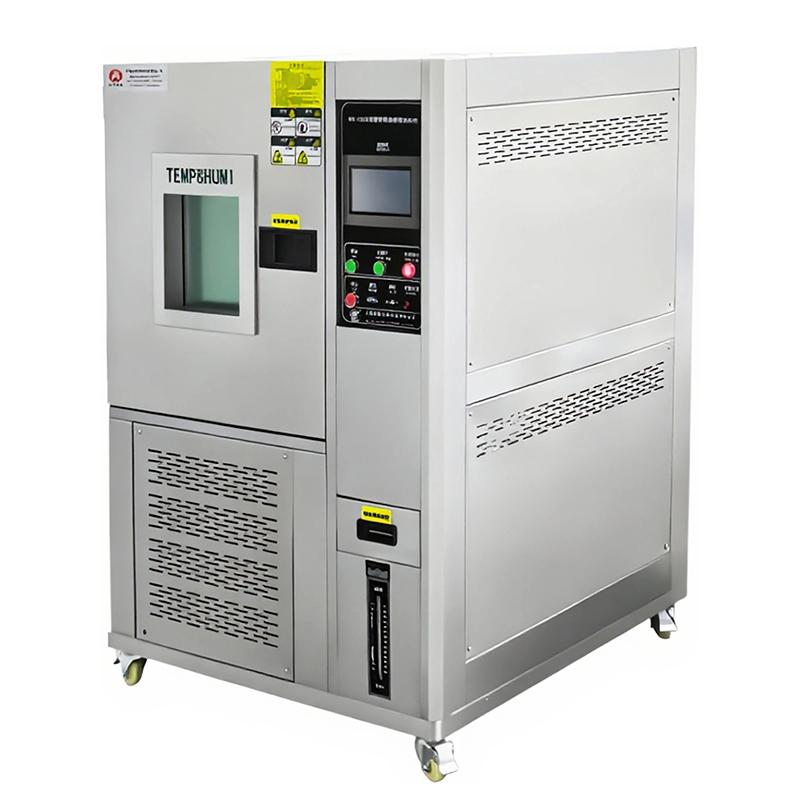

FARI FR-1204-1000 Programmable Constant Temperature and Humidity Tester -40~150 ℃/1000L

FR-1204-1000

Programmable Constant Temperature & Humidity Test Chamber

Programmable control, temperature control -40 ℃~ + 150 ℃, humidity control 20~98% R.H, working volume 1000L, double-layer box door, Philips outer box light source, with external water supply system.

It is suitable for testing the quality of products such as electronics, plastic products, electrical appliances, instruments, food, vehicles, metals, chemicals, building materials, aerospace, medical care, etc. This machine is specially designed to test the performance of heat resistance, cold resistance, dry resistance and humidity resistance of various materials. This machine can choose Chinese or English liquid crystal display touch screen screen, easy to operate, easy to program edit. It can display complete system operating status related data, execution and setting program curves. When an abnormal situation occurs during operation, the screen will automatically display the cause of the failure and provide troubleshooting methods.

Features

1. High-quality appearance, the body adopts arc shape, the surface is treated with matte stripes, and the flat non-reactive handle is used, which is easy to operate, safe and reliable.

2. Rectangular double-layer glass observation window can be used for observation of test products during the test. The window is equipped with an anti-sweat electric heater device to prevent moisture condensation and water droplets, and high-brightness PL fluorescent lamps to maintain lighting in the box.

3. The door is double-layered and airtight, which can effectively isolate the internal temperature from leaking.

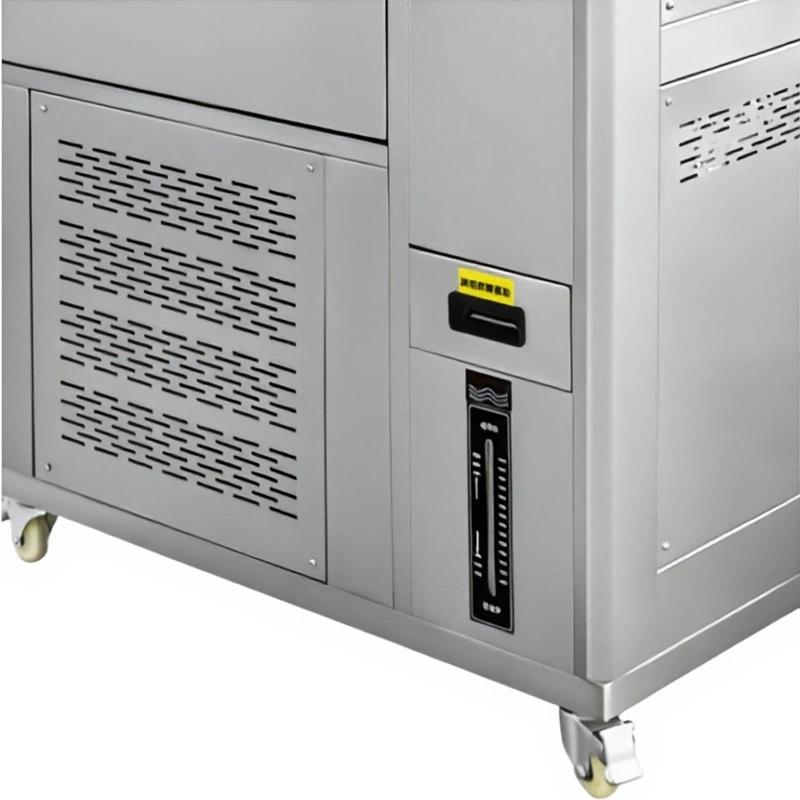

4. It has an external water supply system, which is convenient for supplementing the water supply of the humidification barrel and automatically recycles it for use.

5. The compressor circulation system uses lubricating oil that can effectively remove the gap between the condenser tube and the capillary tube, and the entire series uses environmentally friendly refrigerants (R23, R404, R507).

6. The controller adopts imported LCD display screen, which can display the measured value, set value and time at the same time.

7. The controller has multi-segment program editing and can do fast (OUICK) or slope (SLOP) control of temperature and humidity.

8. The built-in mobile pulley is easy to move and place and has a strong positioning screw to fix the position.

Standards

1. Technical conditions of GB 11158 high Temperature Test Chamber

2. GB 10589-89 Technical conditions for low Temperature Test Chamber

3. GB 10592-89 Technical conditions for high-low Temperature Test Chambers

4. GB/T 10586-89 Technical Conditions for Humidity and Heat Test Chamber

5. GB/T 2423.1-2001 Low temperature chamber test method

6. GB/T 2423.2-2001 High Temperature Test Chamber test method

7. GB/T 2423.3-93 Humidity and heat Test Chamber test method

8. GB/T 2423.4-93 Alternating Damp Heat Test Method

9. GB/T 2423.22-2001 Temperature change test method

10. IEC 60068-2-1.1990 Low temperature chamber test method

11. IEC 60068-2-2.1974 High Temperature Test Chamber test method

12. GJB 150.3 high temperature test

13. GJB 150.4 Low temperature test

14. GJB 150.9 damp heat test

Optional specifications

Packing list：Host X1, manual X1, certificate of conformity X1, warranty card X1

[Note]Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
