FARI FR-1215 Thermal Conditioning Tester, High Temperature Circulating Oven

FR-1215

Heat Conditioning Testing Machine

Product Description

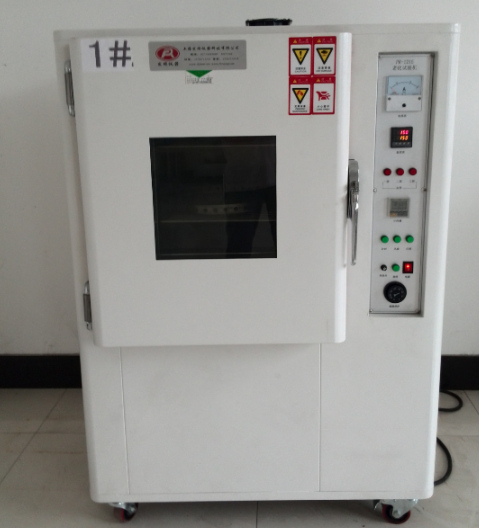

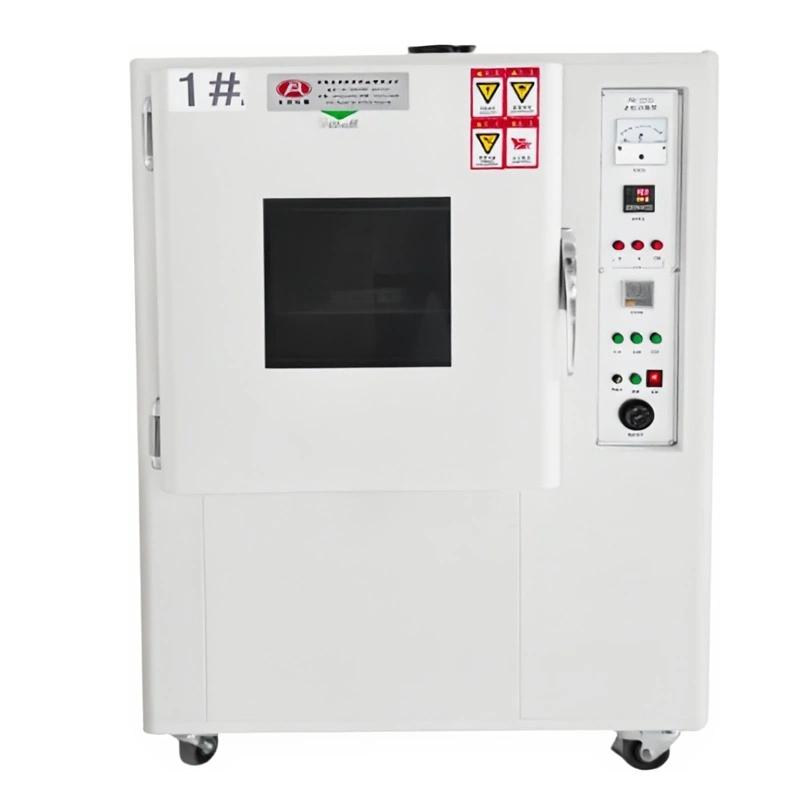

This machine promotes the deterioration of vulcanized rubber and plastic, and calculates the change rate of tension and elongation before and after heating. The testing machine is equipped with a forced hot air circulation control system to ensure uniform distribution of temperature. It is generally considered that 24 hours in an aging machine at 70°C is approximately equal to six months in a natural environment.

Standards

CNS-3556, JIS-K6301, ASTM-D2436

Applications

It is suitable for testing the quality of products such as electronics, plastic products, electrical appliances, instruments, food, vehicles, metals, chemicals, building materials, aerospace, medical care, etc.

Electronic control systems

Imported appliances

Fixed conditions can be set from 0 to 999 H, touch KEY BOARD, can set fixed or alternating conditions arbitrarily

Nine-point fault warning and simple maintenance method (TROUBLE SHOOTING)

Rising and cooling can be used for slope control, and has the function of self-calibrating temperature reference point.

The temperature sensor adopts DIN PT-100Ω (platinum sensor).

Temperature control adopts synchronous coordination control of PID + SSR system, which can improve

Control the stability and lifespan of components and interfaces. (Omron, Japan)

It has the function of PID automatic calculation, which can reduce the inconvenience caused by manual setting.

During setting or operation, if an error occurs, a warning signal will be provided.

Safety protection system (Savety devices systems):

With non-fuse protection switch

Over-temperature, machine warning light indication, automatic shutdown, when the fault is not eliminated, it cannot be turned on.

The fan motor is equipped with an overcurrent protector.

Packing list：Host X1, manual X1, certificate X1, warranty card X1, shed board X2, observation window X1, light bulb X1, swirl/spinning disc X1

[Note]Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
