QXD-50 (wide-channel)
-
JINGKELIAN QXP 0-50 single-channe Fineness of Ground Gauge Fineness gauge 0~50μm/5μm$ 148.00SE -
MODERNER QXD-50 Large wide-channel Fineness gauge -
TRUIT TR 1203/050 Wide-channel Fineness meter 0~50μm$ 187.00SE -
TQC VF2106 single-channe grinding Grindometer 0~50μm with calibrated certificate$ 1044.00SE -
MODERNER QXD-50 single-channe Fineness gauge range from 0 to 50 microns

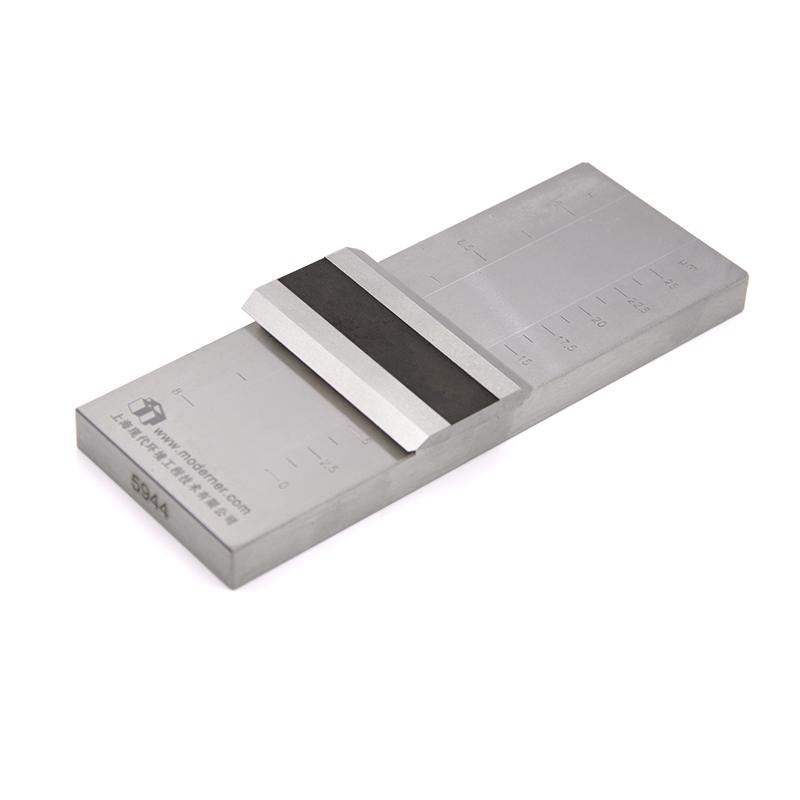

Moderner QXD-50 (wide-channel) Wide-channel Fineness gaugeSPEC

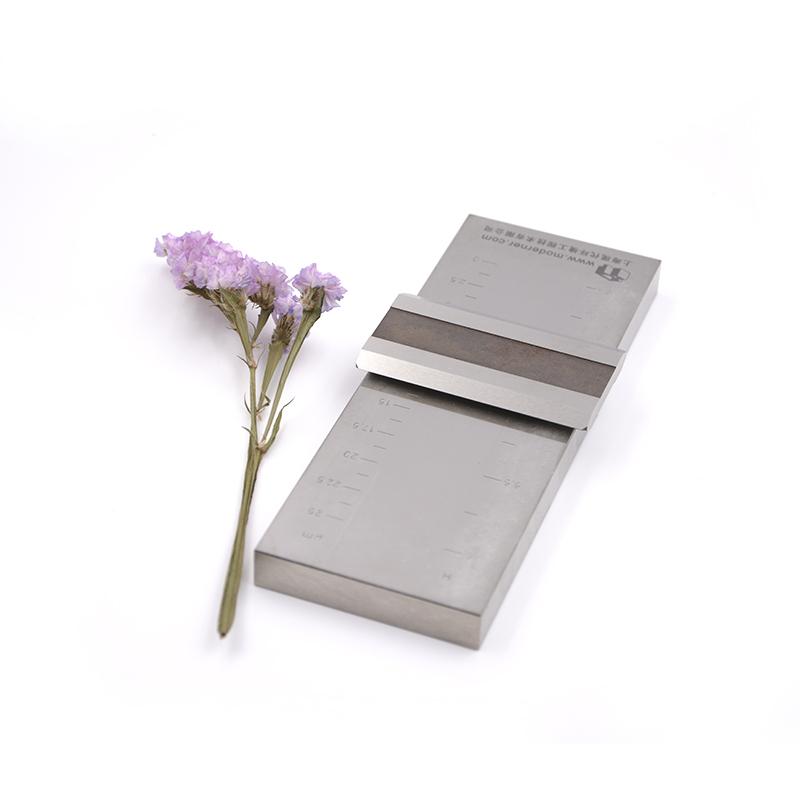

Moderner QXD-50 (wide-channel) Wide-channel Fineness gaugeDetails
Moderner QXD-50 (wide-channel) Wide-channel Fineness gaugePacking list
- SKU
- NB001415
- Scraper type
- Wide-channel
- Number of grooves
- 1
- range
- 0 ~ 50µm
- Scale unit
- mm
- Scraper material
- stainless steel
- Scraper size
- 170*63.5*12.7mm
- Groove size
- 25.4*127mm
- Scraper material
- stainless steel
- Scraper size
- 70mm
- Applicable standard
- JJG(化)018-96、GB/T1724
- Graduation
- 2.5µm
product description

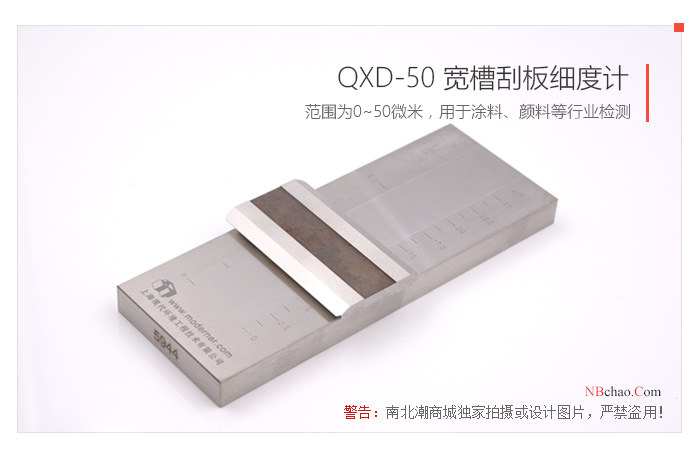

MODERNER wide-slot Fineness of Grind Gauge has three ranges. The QXD-50 wide-slot Fineness of Grind Gauge has a range of 0 to 50 microns. It is made of stainless steel and uses Hegman and micron units. The effective chute width of the QXD-50 wide groove Fineness of Grind Gauge is 25.4mmx127mm, and it is equipped with a 70mm long scraper. QXD-50 Wide Slot Fineness of Grind Gauge is used to detect the fineness of particles or impurities in coatings, pigments and other industries.
Features
1) The width of the chute is 25.4mm, with a 70mm scraper
2) The material is stainless steel
3) Application: It is mainly used to measure the particle size and degree of dispersion of pigments and impurities in paints, varnishes, inks and other liquids and slurries, expressed in microns or Hegman
4) Design standard: designed and manufactured according to JJG (chemical) 018-96 "Fineness of Grind Gauge" and GB/T1724 standard of the Ministry of Chemical Industry of the People's Republic of CHINA

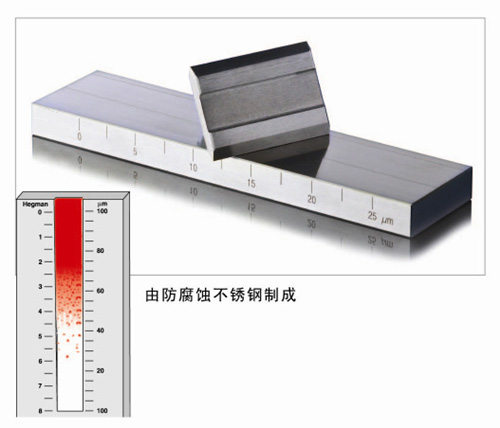

Product schematic

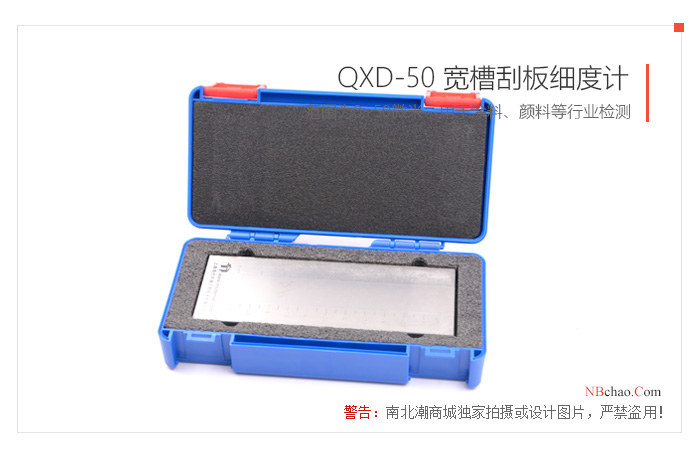

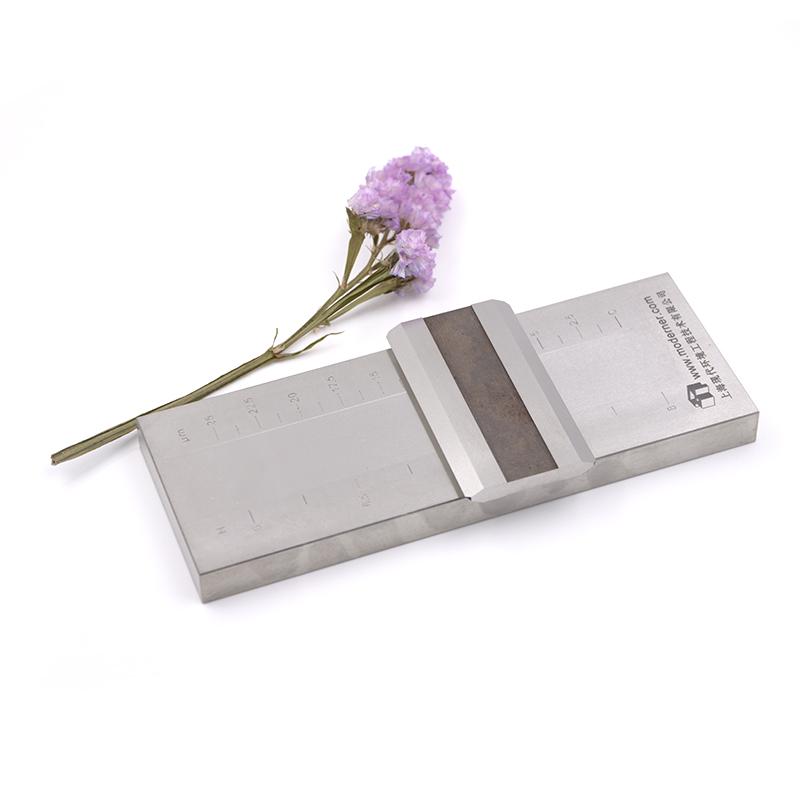

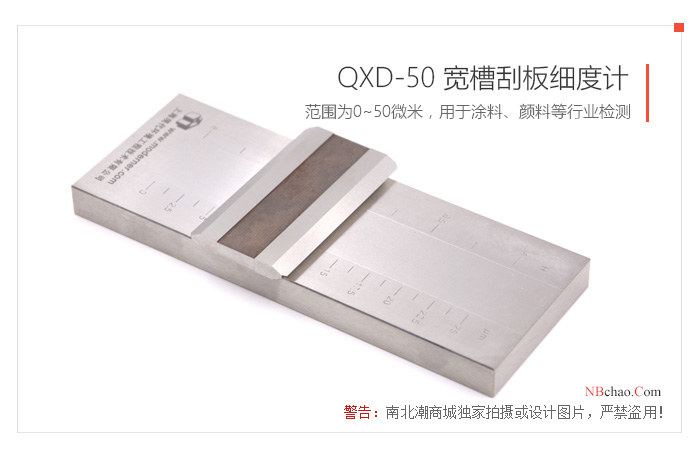

Pictures

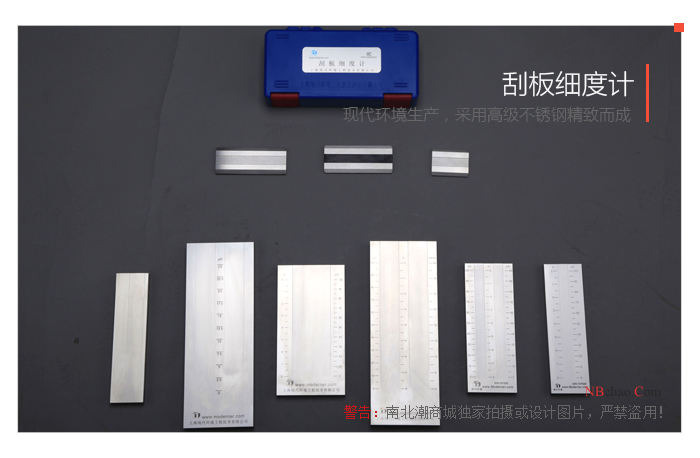

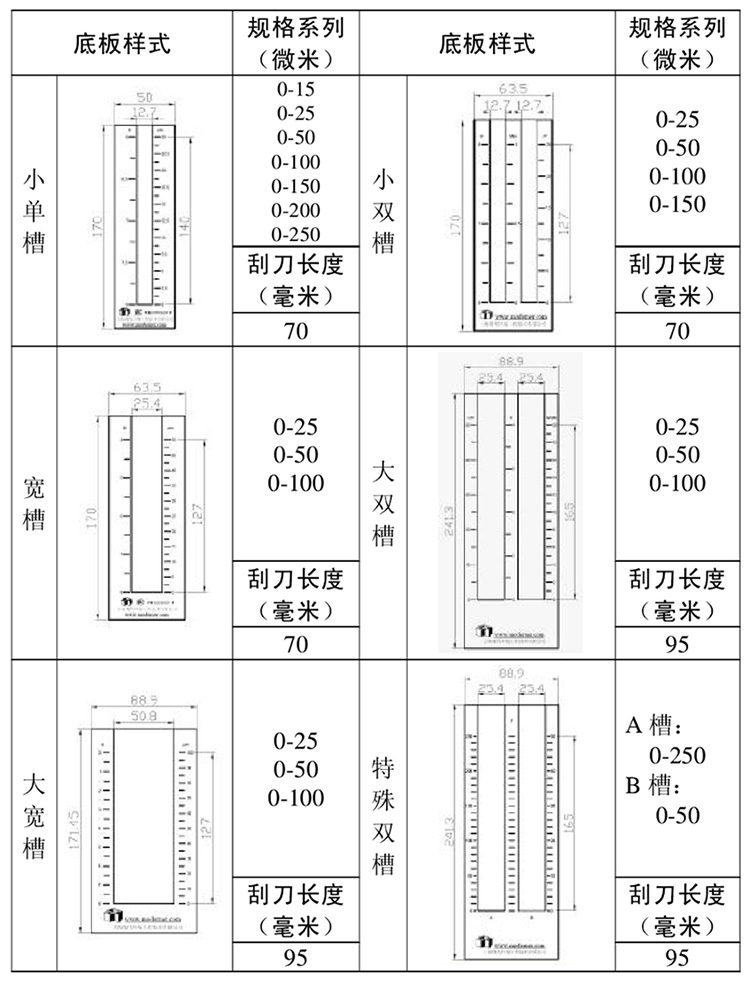

MODERNER Fineness of Grind Gauge series specification list
Series
| Specification | Range | Division value | Groove size | unit |
| small single slot | 0-15 | 0.75 | 12.7*140 | μm |
| 0-25 | 1.25 | Hegman/μm | ||
| 0-50 | 2.5 | |||
| 0-100 | 5 | |||
| 0-150 | 5 | μm | ||
| small double slot | 0-25 | 2.5 | Hegman/μm | |
| 0-50 | 2.5 | |||
| 0-100 | 5 | |||
| 0-150 | 5 | μm | ||
| wide slot | 0-25 | 1.25 | 25.4*127 | Hegman/μm |
| 0-50 | 2.5 | |||
| 0-100 | 5 | |||
| large wide groove | 0-25 | 2.5 | 50.8*127 | |
| 0-50 | 5 | |||
| 0-100 | 5 | |||
| Big double slot | 0-25 | 2.5 | 25.4*165 | Hegman/μm/NPIRI |
| 0-50 | 5 | |||
| 0-100 | 5 | |||
| Special double slot | 0-50 | 2 | μm | |
| 0-250 | 10 | μm |
