Coating Fineness gauge MODERNER QXD-100

The MODERNER QXD-100 Coating Fineness gauge has a range of 0 to 100 microns. The QXD-100 Coating Fineness gauge is a professional Coating Fineness gauge used to detect impurities such as paint paste and pigments.

Price: Please contact customer service

Model：

QXD-100 (wide-channel)

Certificate

Moderner

Manufacturer authorization

Contact

Details SPEC Con VIDEO OI

Moderner QXD-100 (wide-channel) Wide-channel Fineness gaugeSPEC

Moderner QXD-100 (wide-channel) Wide-channel Fineness gaugeDetails

Moderner QXD-100 (wide-channel) Wide-channel Fineness gaugePacking list

SKU: NB001416

Scraper type: Wide-channel

Number of grooves: 1

range: 0~100μm

Scale unit: μm

scraper material: stainless steel

Scraper size: 170*63.5*12.7mm

Groove size: 25.4*127mm

Drawdown blade material: stainless steel

Drawdown blade size: 70mm

Graduation: 5μm

QXD-100 (wide-channel)

Wide-channel Fineness gauge

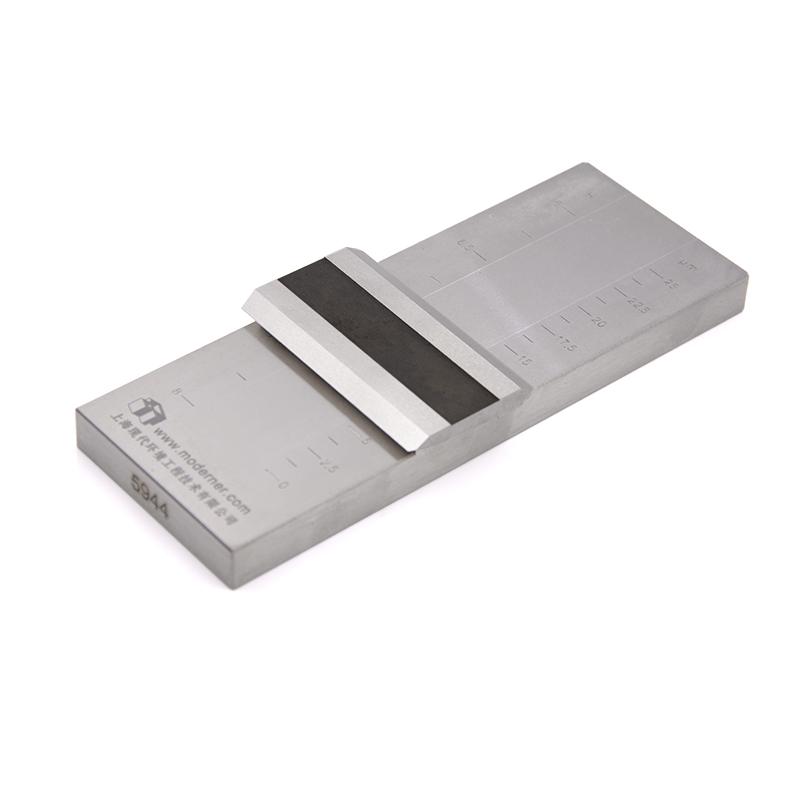

Coating Fineness gauge MODERNER QXD-100 Picture

Overview

QXD-100 Paint Scraper Fineness Meter is a single-wide groove scraper Fineness Meter with a detection fineness range of 0~100 microns, which is a stainless steel paint scraper Fineness Meter designed and manufactured by MODERNER according to national standards.The QXD-100 Paint Grindometer has a graduation value of 100 microns, expressed in Hegman and micron units, has 1 groove, and is equipped with a 70mm long scraper. This paint Grindometer is clearly graduated and has the name and product code of the MODERNER engraved on the bottom of the front.

How to use the product

(1) Before use, wash and soak with a suitable solventQXD-100 Paint Scraper Fineness MeterScraper and bottom, then dry with cotton yarn, and stir with an ink knife to evenly match the specimen that meets the standard viscosity index of the product.

(2) InQXD-100 Paint Scraper Fineness MeterIn the deepest part of the trench, drop a few drops of the test specimen, so that it can fill the groove and slightly excess.

(3) Hold the spatula with the thumb, index finger and middle finger of both hands. It is placed horizontally at the upper end of the wide-groove Grindometer, so that the scraper is perpendicular to the surface of the paint Grindometer, and the scraper is pulled from the deep part of the groove to the shallow part at an appropriate speed, so that the paint sample fills the groove and there is no excess paint left on the flat plate.

(4) After scraping, immediately (not more than 5 seconds) pinch the fineness plate and tilt it, so that the line of sight and the plane of the trench are 15-30° to observe the scale value of the evenly exposed particles in the trench, and the reading value is the fineness value of the measured object.

Product photoshoot

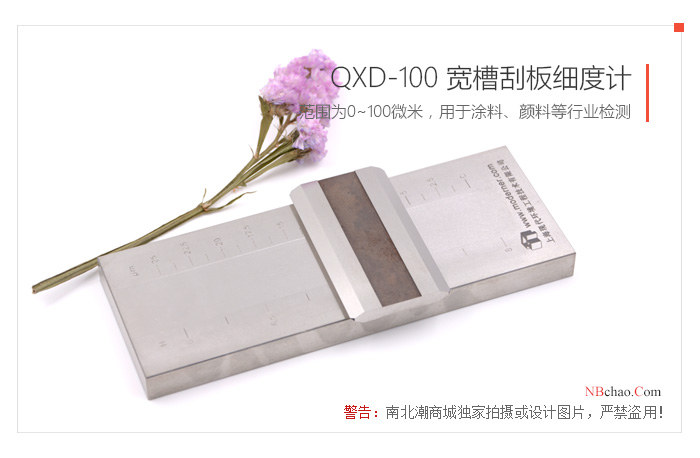

Paint scraper Fineness Meter MODERNER QXD-100 product real picture 01

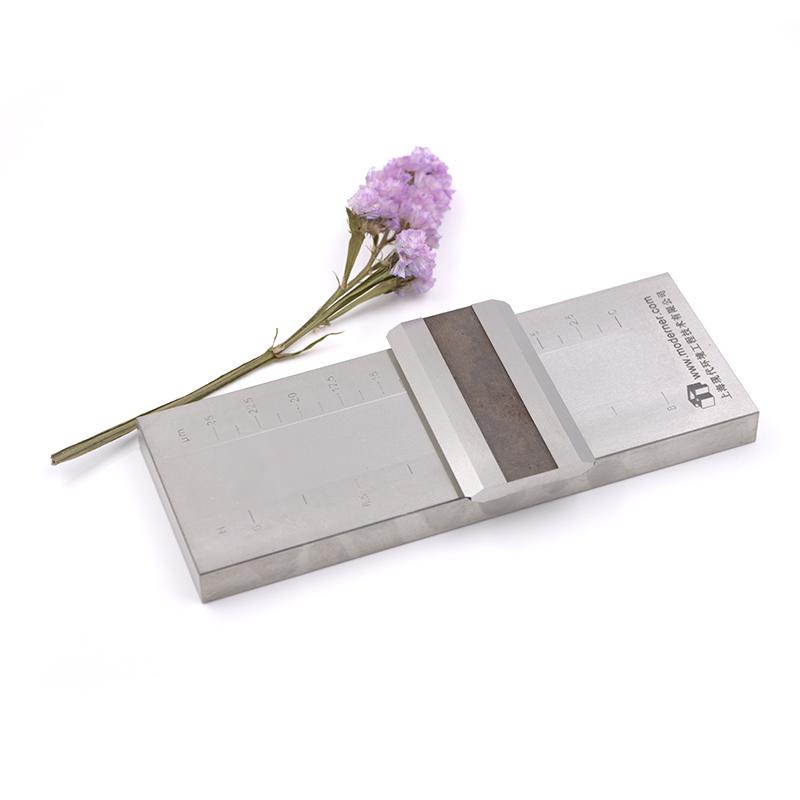

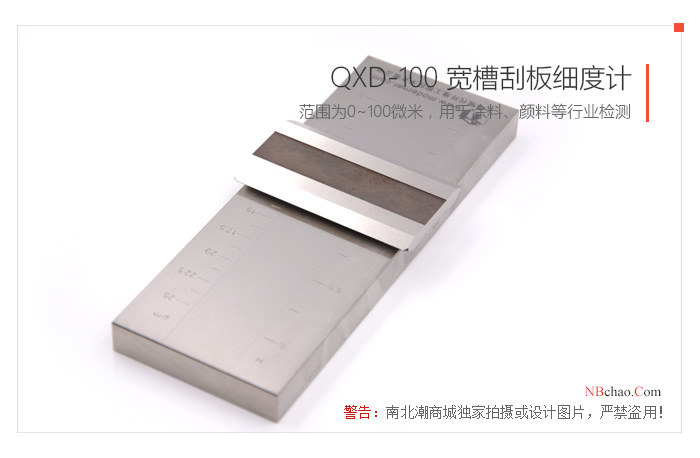

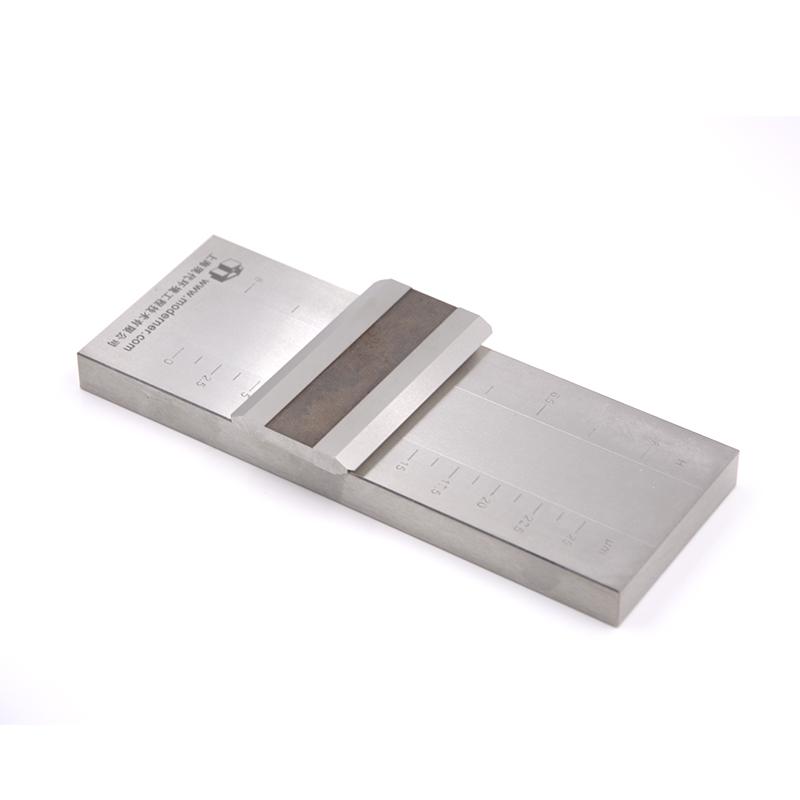

Paint Scraper Fineness Meter Modern Environment QXD-100 Product Actual Picture 02

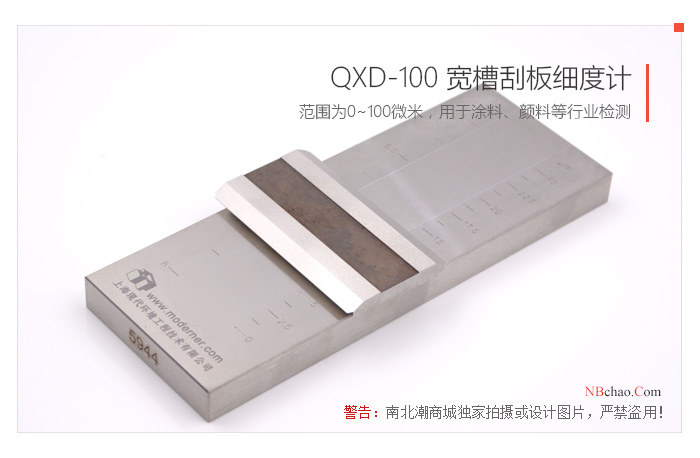

Paint scraper Fineness Meter MODERNER QXD-100 product real picture 03

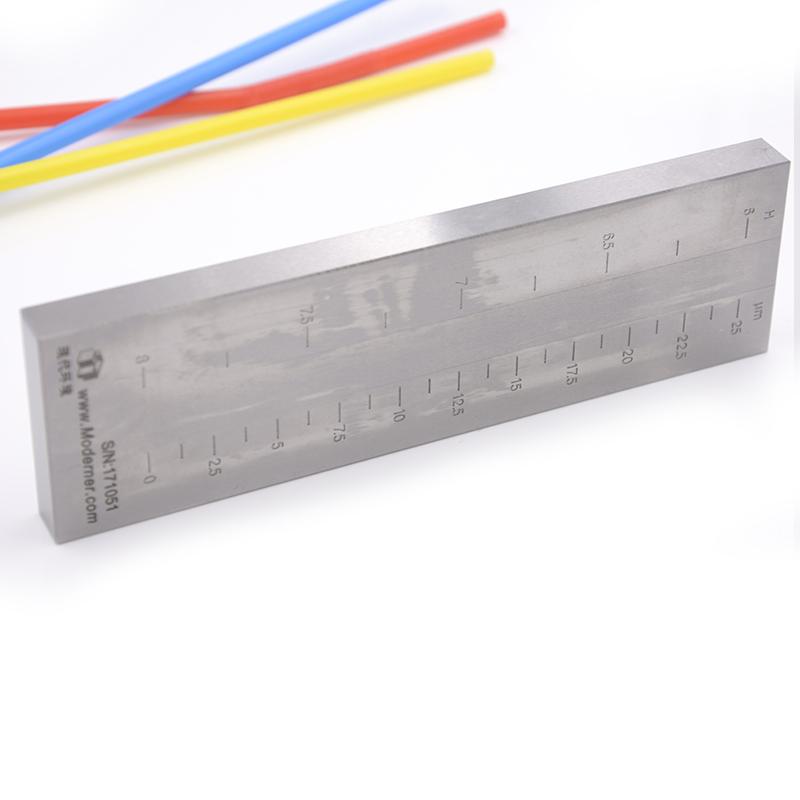

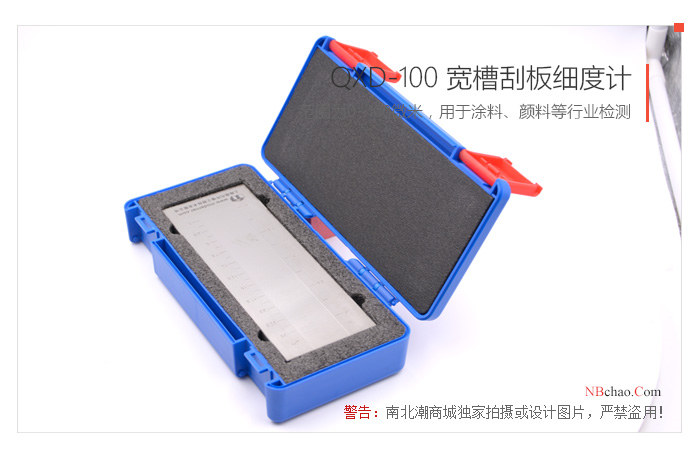

Paint Grindometer MODERNER QXD-100 product real picture 04

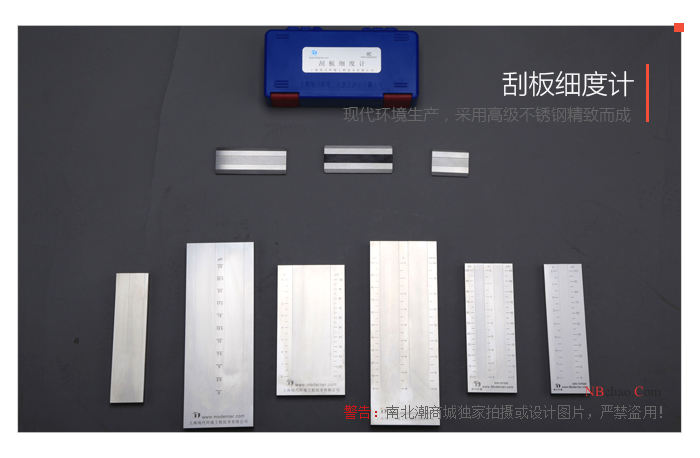

MODERNERal paint Grindometer display

Meets standards

QXD-100 Paint Scraper Fineness Meter compliesMinistry of Chemical Industry Coating Special Appliance Verification Regulations JJG (Chemical) 018-96 "Scraper Fineness Meter" and its GB/T1724 standard.

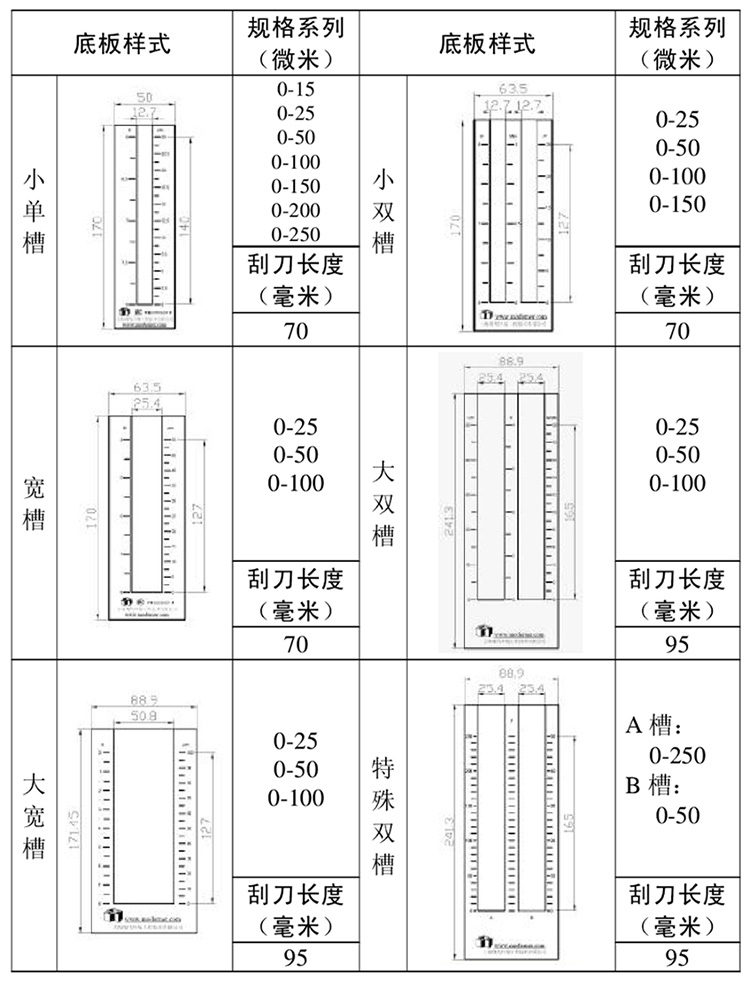

A list of specifications for the MODERNERal scraper Fineness Meter series

Series selection

specification	Range	Graduation value	Groove size	unit
Small single slot	0-15	0.75	12.7*140	μm
	0-25	1.25		Hegman/μm
	0-50	2.5
	0-100	5
	0-150	5		μm
Small double slots	0-25	2.5		Hegman/μm
	0-50	2.5
	0-100	5
	0-150	5		μm
Wide grooves	0-25	1.25	25.4*127	Hegman/μm
	0-50	2.5
	0-100	5
Large wide slots	0-25	2.5	50.8*127
	0-50	5
	0-100	5
Large double slots	0-25	2.5	25.4*165	Hegman/μm/NPIRI
	0-50	5
	0-100	5
Special double slots	0-50	2		μm
Special double slots	0-250	10		μm

FAQ

QCan the QXD100 wide-channel Fineness gauge test a size of about 75 microns?

A Yes, the wire-channel scraper fineness Measurement can scrape the material fineness below 0~ 100μm.

QIs this wide-channel Fineness gauge JTJ275 compliant?

A The wide-channel Fineness gauge applies to JTJ275, please consult customer service for detailed application definition

QIs this Scraper Fineness Meter Used to Detect Coating Fineness Particles?

A Hello, yes, it is used to detect the size and dispersion of pigments and impurities in Printing inks.

QWhat is the chute size of this wide scraper Fineness meter?

A Hello, the width of the chute of this scraper Fineness meter is 25.4x127mm.
