Portable Infrared Thermometer TQC TE1004 Temperature Measurement Range -30~270 ℃
TE1004
TQC sheen TE1004 Infrared ThermometerSPEC
TQC sheen TE1004 Infrared ThermometerDetails
TQC sheen TE1004 Infrared ThermometerPacking list
- SKU
- NB001419
- Temperature Measurement Range
- -30~270℃
- Accuracy
- ±2.5%
- object distance ratio
- 6:1
- emissivity
- 0.95
- Operating temperature
- 0~50℃
- Relative Humidity
- Relative Air Humidity not more than 80% (non-condensing)
- Measurement rate
- Approximately 1 measurement per second
- Automatic shutdown
- About 7~ 8s
TQCPortable infrared thermometerTE1004 is a portable infrared thermometer that uses the principle of infrared radiation to measure the surface temperature of objects without contact, and the size is very small, which can be placed in a pocket for easy carrying.TE1004The laser positioning of the portable infrared thermometer makes it easy to identify the target area, and the display with backlit function makes it possibleTE1004Portable infrared thermometerUse normally in dark or poorly lit environments.
TE1004The operation of the portable infrared thermometer is very simple, just align and press the measurement button to emit a laser point to the surface of the object, and the surface temperature of the object can be immediately displayed on the display of the infrared thermometer.

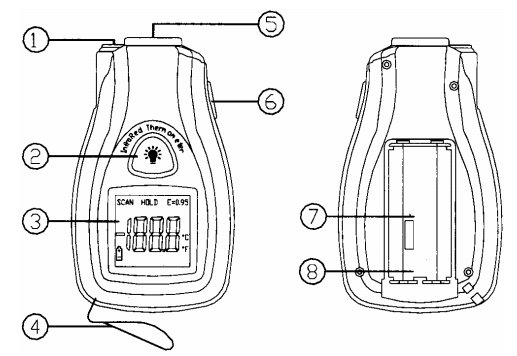

Product structure diagram
1. Laser beam outlet opening, 2. Backlight button, 3. LCD display, 4. Wrist strap;
5. IR transmitter;6. "MEAS"The button is used to start the measurement program and emit the laser dot7. °C/°F transfer switch;8. Battery part
Temperature measurement steps

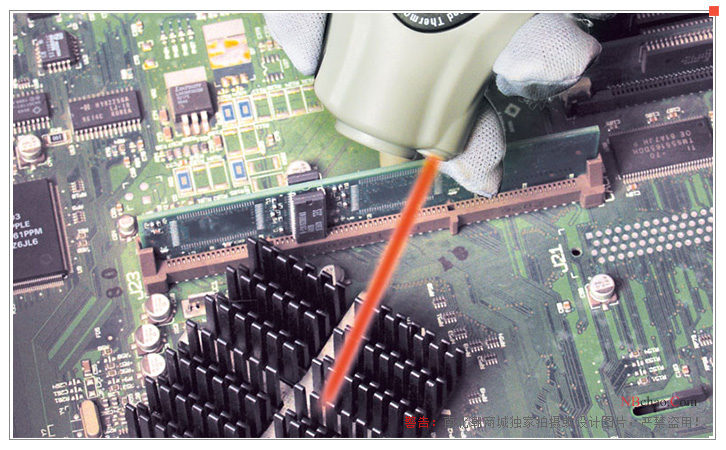

1. WillTE1004The laser beam outlet of the portable infrared thermometer is aimed at the object to be measured, and the "MEAS" button is pressed to locate the laser point on the surface of the object to be measured.
2. As long as the button is held down, the surface temperature of the object can be measured, and the temperature value will be displayed on the display ("SCAN" will appear on the display).
3. After the button is released, the last measured value will be displayed on the LCD display ("HOLD" is displayed on the display).
4. After about 7~8s,TE1004The portable infrared thermometer will automatically turn off.
Note: Note that the surface area of the measured object should be larger than the laser spot (the ratio of distance to spot size: D/S).
Precautions for use
1. When measuring the highest and lowest temperatures (such as 0°C and 200°C), it is necessary to measure during the measurement processTime outHalf an hour. This is done so that the TR sensor can be cooled down, otherwise the displayed measured temperature value will deviate from the actual temperature value.
2. Use upTE1004After a portable infrared thermometer, wash the surface of the IR sensor with a clean and soft brush or vacuum cleaner.
3. Emissivity (TE1004The portable infrared thermometer is preset to 0.95) refers to the energy emissivity of a material. Values above this point indicate that the material emits greater thermal radiation.
4. The emissivity of many materials is close to the default value of 0.95. However, metallic or shiny surfaces have lower emissivity values.
5. The use of adhesive can help to obtain more accurate measurement temperature values.
6、TE1004Portable infrared thermometers cannot be used to measure the surface temperature of an object through a glass plate, and the temperature obtained in this way is only the temperature value of the glass plate.

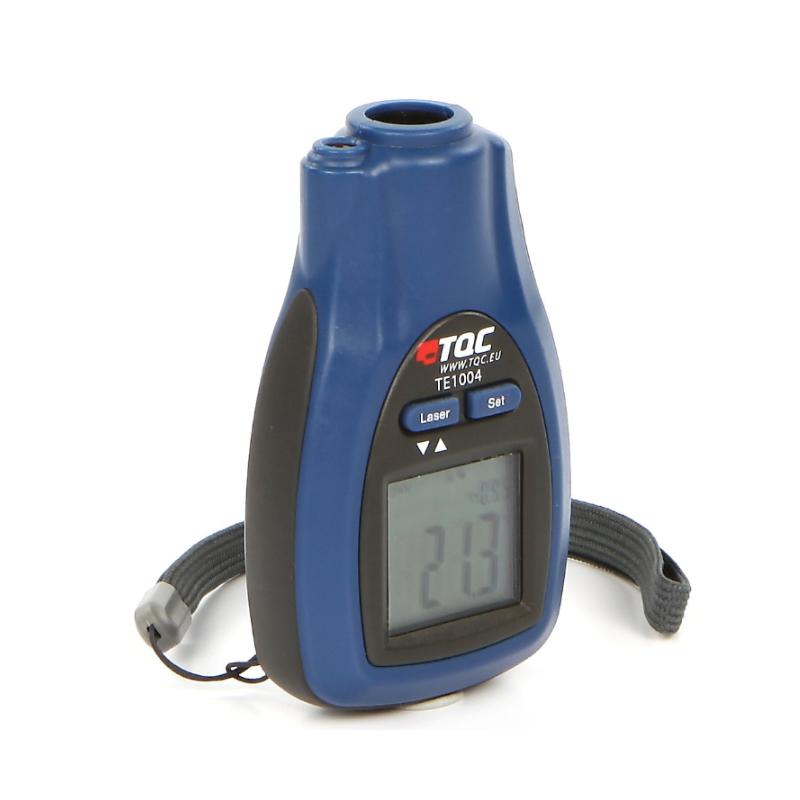

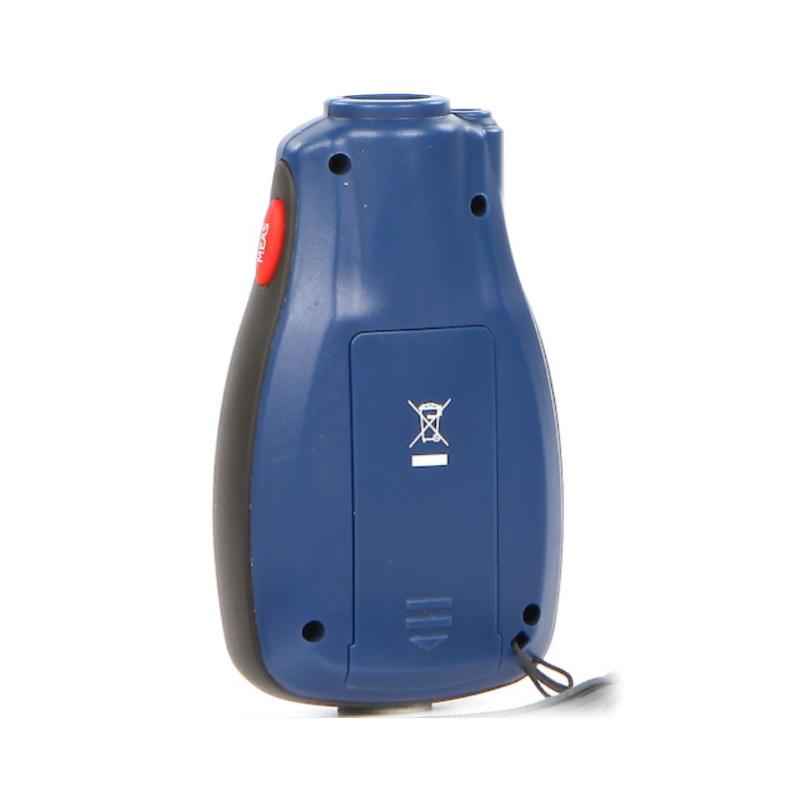

Actual picture of the product
