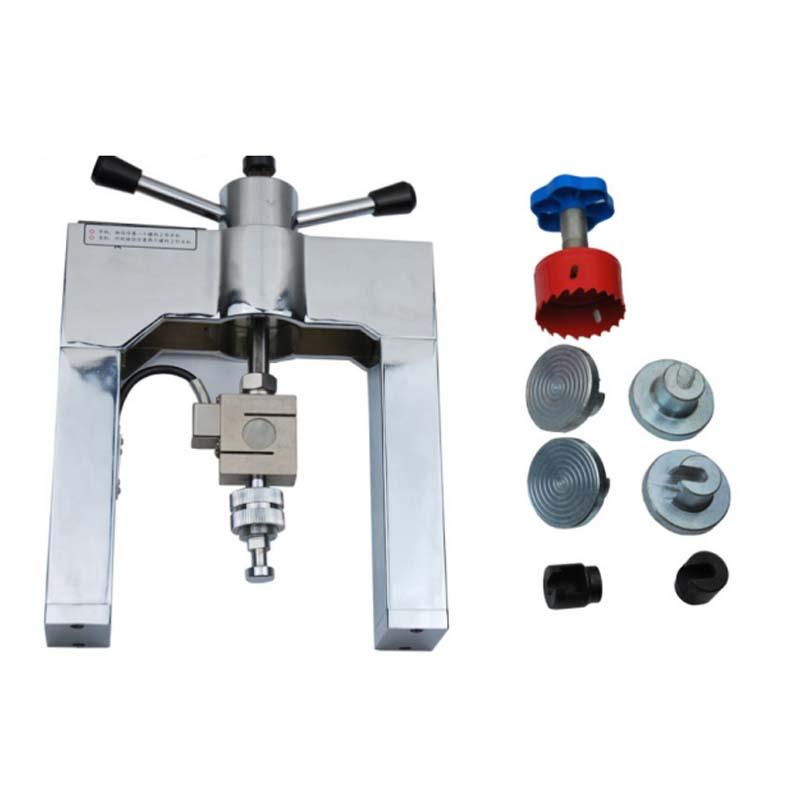

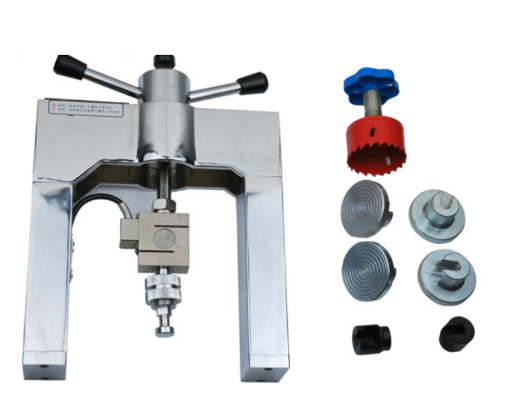

FARUI FR-10S coating Adhesion Tester
SE
FR-10S
FaRui FR-10S Coating Adhesion TesterSPEC
FaRui FR-10S Coating Adhesion TesterDetails
FaRui FR-10S Coating Adhesion TesterPacking list
- SKU
- NB014190
- Range
- 0~5MPa/0~10.00kN
- Resolution
- 0.001KN
- Data storage
- 500 articles
- display mode
- Force value and intensity adjustable
- Weight
- 2.8Kg
- piston stroke
- 65mm
- Instrument structure
- one-piece
- peak hold
- Yes.
- LCD lighting
- Yes.
- numerical correction
- 10 segment polyline numerical correction to improve Accuracy
- Power
- High Capacity lithium battery
- Automatic shutdown
- Yes.
- host material
- Light alloy
Product Details
10S Coating Adhesion Tester (referred to as the Tester) is a new type of instrument newly developed, which is mainly used in the detection of coating adhesion in the construction of high-speed rail projects. It is the testing instrument required by various quality inspection and construction units.
FR-10S Coating Adhesion Tester Coating Adhesion Tester Meets Standards
JGJ144-2004 "Technical Regulations for Exterior Wall External Thermal Insulation Engineering";
JGJ110-97 "Inspection Standard for Bonding Strength of Decorative Bricks in Construction Engineering";
JGJ126-2000 "Code for Construction and Acceptance of Exterior Wall Facing Brick Project";
GB/T 5210-2006 "Paints and Varnishes Pull-Off Adhesion Test";
TB-T2965-2011 "Technical Conditions for Waterproof Layer of Railway Concrete Bridge Deck";
- 1SH/T 3022-2019《Design standard for anticorrosion coating of equipment and piping in petrochemical industry》
- 2ASTM D7234-2012《Standard Test Method for Pull-Off Adhesion Strength of Coatings on Concrete Using Portable Pull-Off Adhesion Testers》
- 3GB/T 39289-2020《Determination of the adhesion strength—Plastic and metal》
- 4HG/T 20720-2020《Construction and acceptance specification of waterborne anti-corrosion coatings for steel structures in industrial buildings》
- 5TB/T 2965-2011《Technical specification for waterproof layer of railway concrete bridge》
- 6ASTM B571-2023《Standard Practice for Qualitative Adhesion Testing of Metallic Coatings》
- 7ISO 4624-2016《Paints and varnishes -1 Pull -off test for adhesion》
- 8GB/T 14616-2008《General specification for engine-room bottom coating》
- 9ASTM D4541-2022《Standard Test Method for Pull-Off Strength of Coatings Using Portable Adhesion Testers》
- 10ISO 4624-2002《Paints and varnish adhesion test》
