Handheld Infrared Thermometer TQC TE1005 Temperature Measurement -50~ + 750 ℃
TE1005
TQC sheen TE1005 Infrared ThermometerSPEC
TQC sheen TE1005 Infrared ThermometerDetails
TQC sheen TE1005 Infrared ThermometerPacking list
- SKU
- NB001420
- Temperature Measurement Range
- -50~750℃
- Resolution
- 0.1℃|1℃
- object distance ratio
- 12:1
- emissivity
- 0.95
- Response time
- 1s
- Operating temperature
- 0~50℃
- Relative Humidity
- Operation 10%~ 90% RH, storage < 80% RH
- Storage temperature
- -20~60℃
- Power Supply
- 9V, NEDA 1604A, IEC 6LR61
- Dimensions
- 100*56*230mm
- Weight
- 290g
- Display
- 31/2 digital display LCD screen
- Overrange prompt
- The LCD will display "1"
- polarity display
- Automatic (no anode indicated) - symbol indicates cathode
- Laser diode
- Output < 1mW, wavelength: 630~670nm, Class 2 laser products
- Response wavelength
- 8~14μm
- shutdown
- About 7s automatic shutdown without operation
- backlight function
- Yes.
Overview
TQCHandheld infrared thermometer TE1005It is imported from the Netherlands, it is an industrial handheld infrared thermometer designed according to the standard and has a good user experience, which is suitable for non-contact measurement of object surface temperature in harsh industrial environments, and the applicable temperature measurement range is -50°C~+750°C. The target area for measurement is identified by laser positioning and prevented by the use of a rubber housingTE1005The hand-held infrared thermometer was mechanically damaged. The backlit display facilitates temperature measurement in dark or low-light conditions.
Handheld infrared thermometer TE1005It is quick and easy to use, just aim at the surface of the object and emit the laser spot, and in 500 milliseconds, the measured temperature value can be displayed in the display.
Applications
TE1005Handheld infrared thermometers are suitable for measuring hard-to-reach surfaces, moving objects, or electrical components. It can be used to measure the temperature of curing ovens, bearings, electrical junction boxes, coolants, engines, plastic models, asphalt, inks, silk screen printing, diesel engines, etc.
Features and advantages
1. Non-contact accurate measurement of temperature value.
2. Built-in laser positioner.
3. Automatic selection range and resolution are 0.1°~1°.
4. Automatic data retention and automatic shutdown function.
5. The object distance ratio is 12:1.
6. Backlight display function.
Functional structure diagram
1) IR sensor (temperature sensing window) 2) laser aiming port
3) LCD display
4) °F selection key
5) °C select key
6) Backlight selection key
7) Laser selector key
8) Measure the switch trigger
9) Grip part
10) Battery compartment

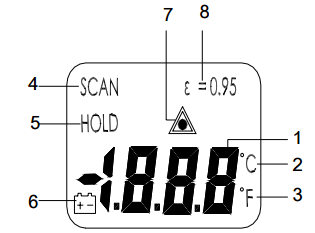

Description of LCD display parameters
1) Digital temperature value
2) Celsius temperature unit
3) Fahrenheit temperature unit
4) Measurement indication
5) Data Retention
6) Low Voltage indication
7）positioninglaser
8) Fixed emissivity (0.95)

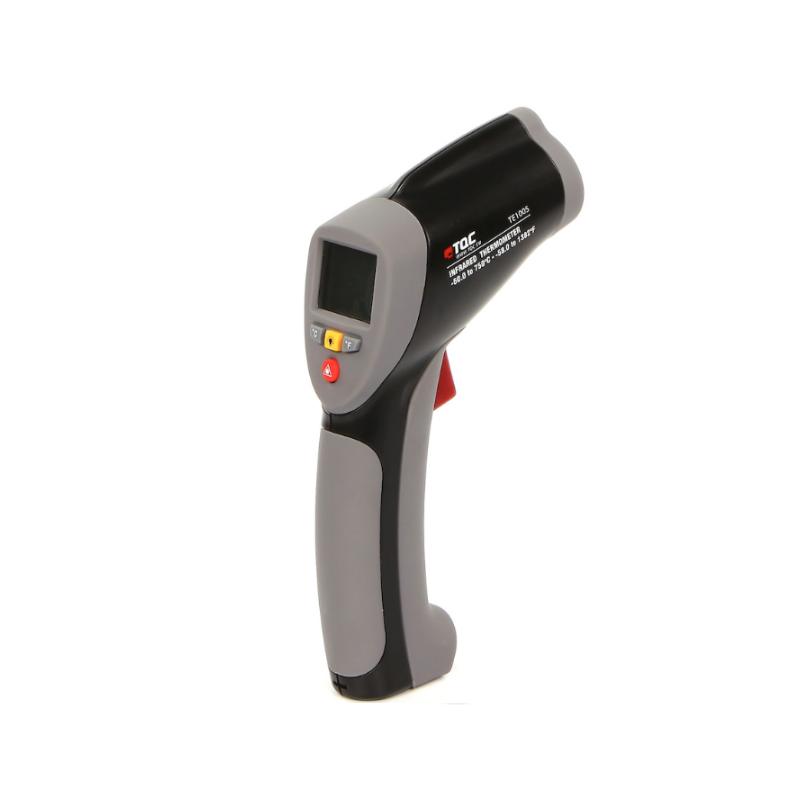

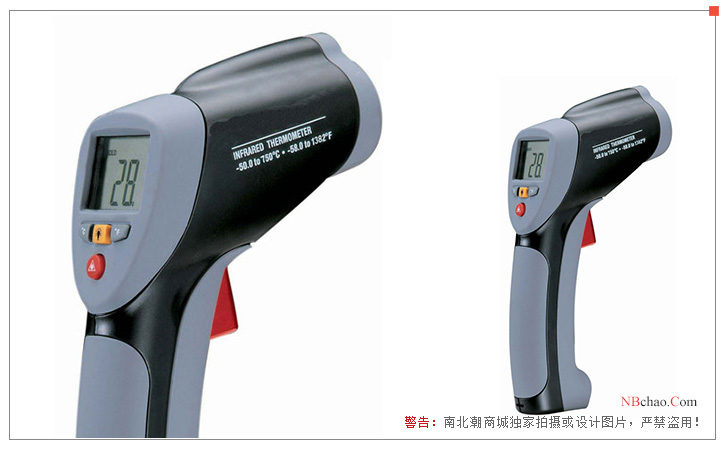

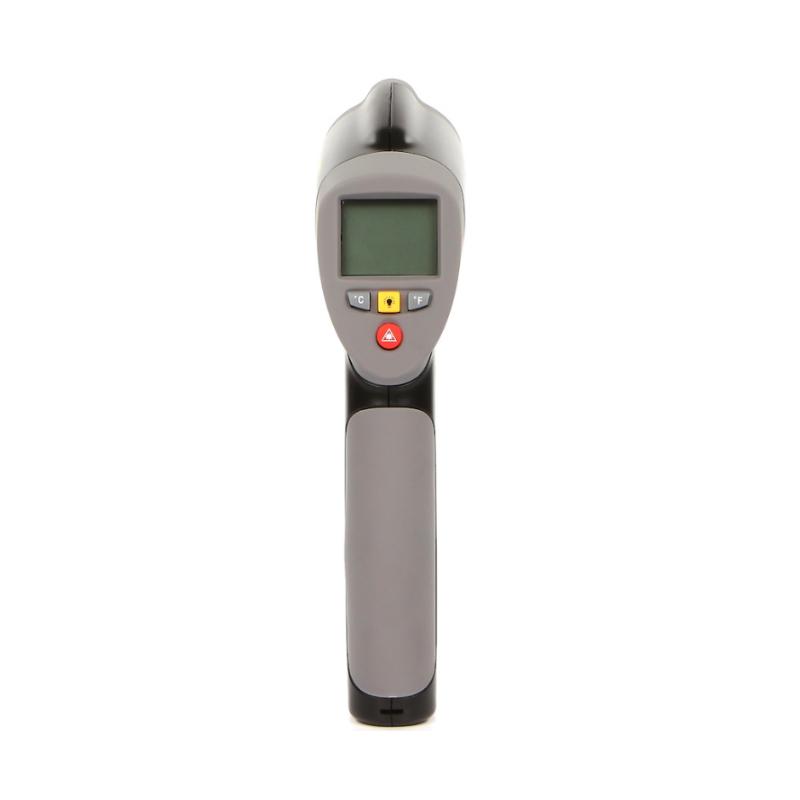

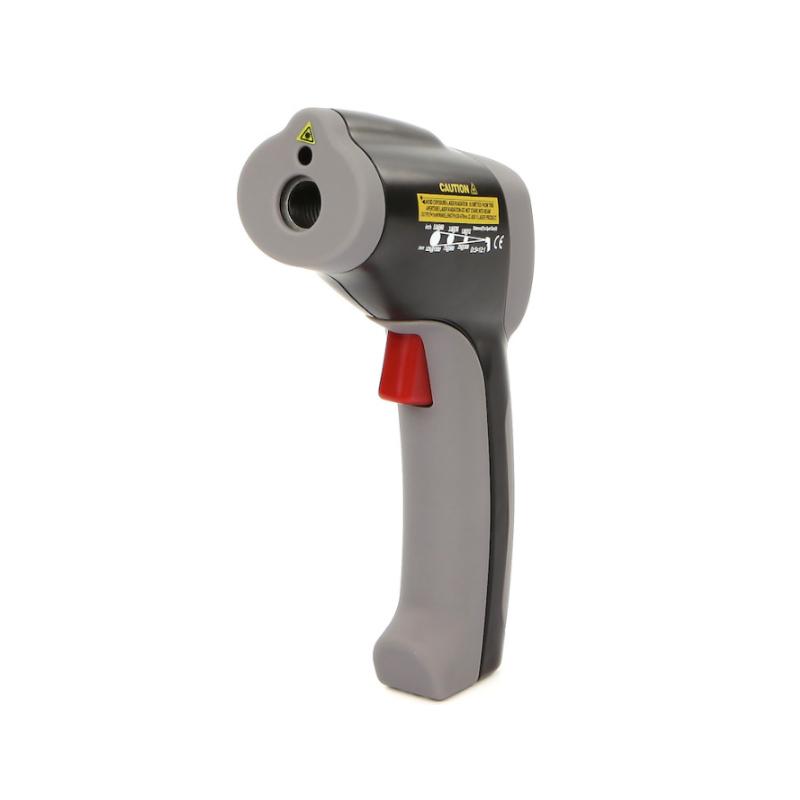

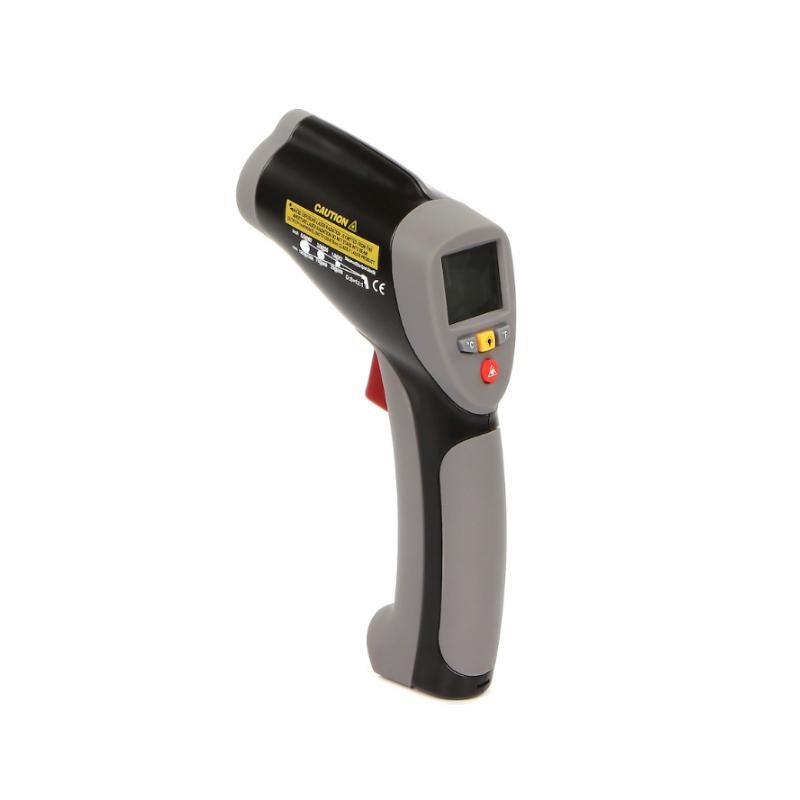

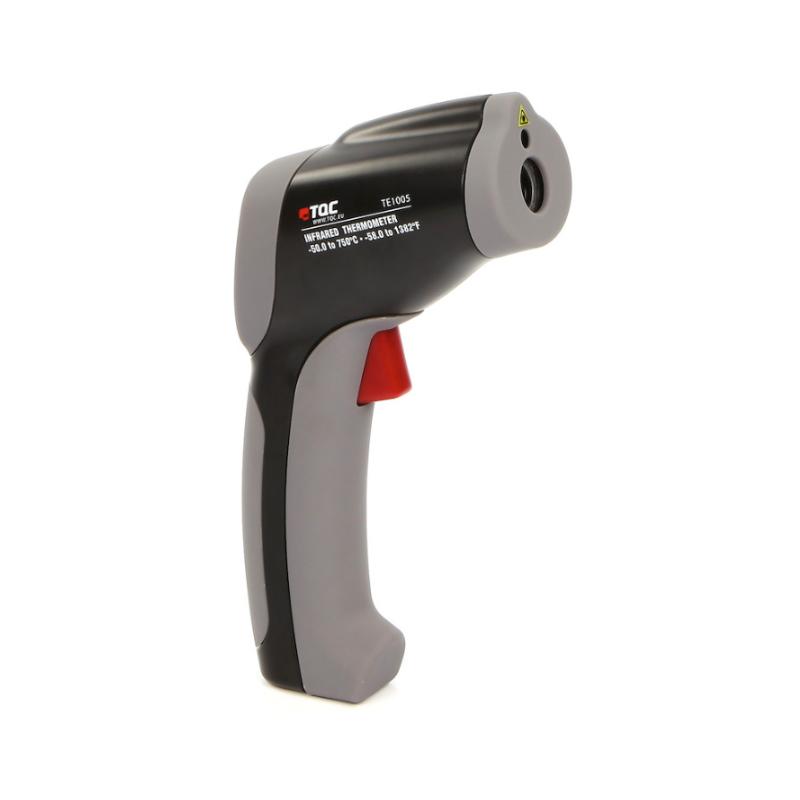

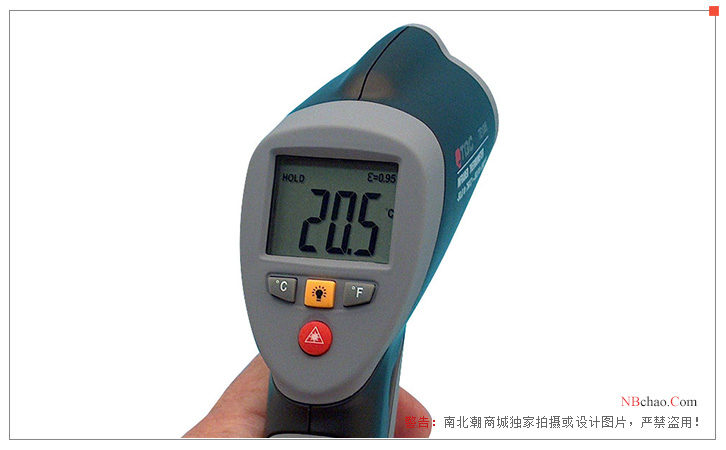

Actual picture of the product
