Industrial Infrared Thermometer TQC TE1006 Infrared Thermometer Industrial temperature measurement range -50~1000 ℃
TE1006
TQC sheen TE1006 Infrared ThermometerSPEC
TQC sheen TE1006 Infrared ThermometerDetails
TQC sheen TE1006 Infrared ThermometerPacking list
- SKU
- NB001421
- Temperature Measurement Range
- -50~1000℃
- Accuracy
- ±1.5%
- Resolution
- 0.1℃
- object distance ratio
- 50:1
- emissivity
- 0.10~1.00
- Response time
- 1s
- Operating temperature
- 0~50℃
- Relative Humidity
- Operation 10%~ 90% RH, storage < 80% RH
- Storage temperature
- -20~60℃
- Power Supply
- 9V, NEDA 1604A, IEC 6LR61
- Dimensions
- 100*56*230mm
- Weight
- 290g
- Overrange prompt
- The LCD will display "-0L", "0L"
- polarity display
- Automatic (no anode indicated) - symbol indicates cathode
- Laser diode
- Output < 1mW, wavelength: 630~670nm, Class 2 laser products
- Response wavelength
- 8~14μm
- shutdown
- About 7s automatic shutdown without operation
TQC professional industrial infrared thermometer is designed for non-contact measurement of object surface temperature in harsh industrial environmentsTE1006Industrial infrared thermometerWith a higher measured object distance ratio of 50:1 D/S, it is possible to accurately measure the surface temperature of objects even at great distances.
Other than thatTE1006 industrial infrared thermometer can adjust the object emissivity between 0.1~1.0 to ensure higher accuracy of the measured temperature value in the entire measurement range.The TE1006 industrial infrared thermometer has a temperature measurement range of:-50 to 1000°C (-58 to 1832°F), in different temperature measurement ranges, the measurement accuracy value is different, please refer to the technical parameters for details.
Advantages:
1. Realize the long-distance measurement of the surface temperature value of the object in a smaller area.
2. Non-contact accurate measurement.
3、TE1006 Industrial Infrared ThermometerIt has a large measuring temperature range.
4. Built-in positioning laser.
5. Automatic data retention function.
6. °C/°F can be switched freely.
7. The emissivity can be adjusted in the range of 0.10~1.0.
8、TE1006 industrial infrared thermometer can display the maximum temperature value, the minimumTemperature valueaverageTemperature value, temperature difference.
9、Gusset plateLock.
10. High-low value alarms can be set.
11. Unique flat surface, modern appearance design.
Application
TE1006 industrial infrared thermometer is suitable for measuring the surface temperature of objects that are difficult to touch on the surface, moving objects or electrical parts, parts curing ovens, bearings, electrical box intersections, coolants, engines, plastic molding, asphalt, etc.
Functional structure diagram
1) IR sensor (temperature sensing window)
2) Locate the laser port
3) LCD display
4) Down button
5) Up button
6) Mode button
7）Laser/backlit buttons
8）Measure the gusset
9) Hand grip part
10) Battery compartment
Digital indication on the display
1) Data Hold Mode, 2) Measurement Indication, 3) Emissivitysymbol4) Low Voltage, lock, laser onsymbol5) The backlight is onsymbol
6）℃/℉Symbols;7) High temperature alarm and low temperature alarm symbols;8) Maximum, minimum, temperature difference, average temperature value;9) Current temperature value

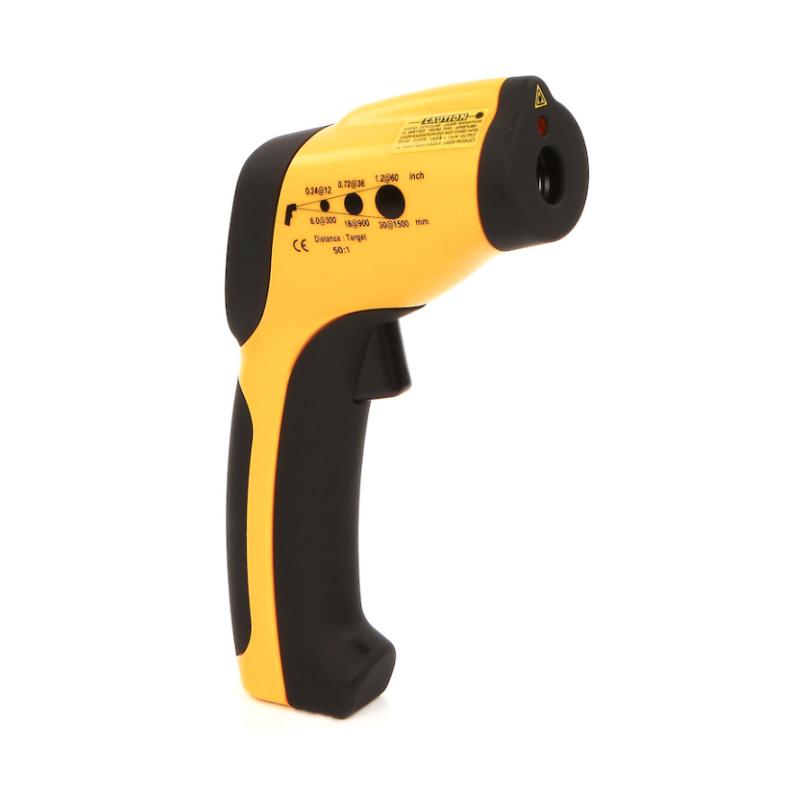

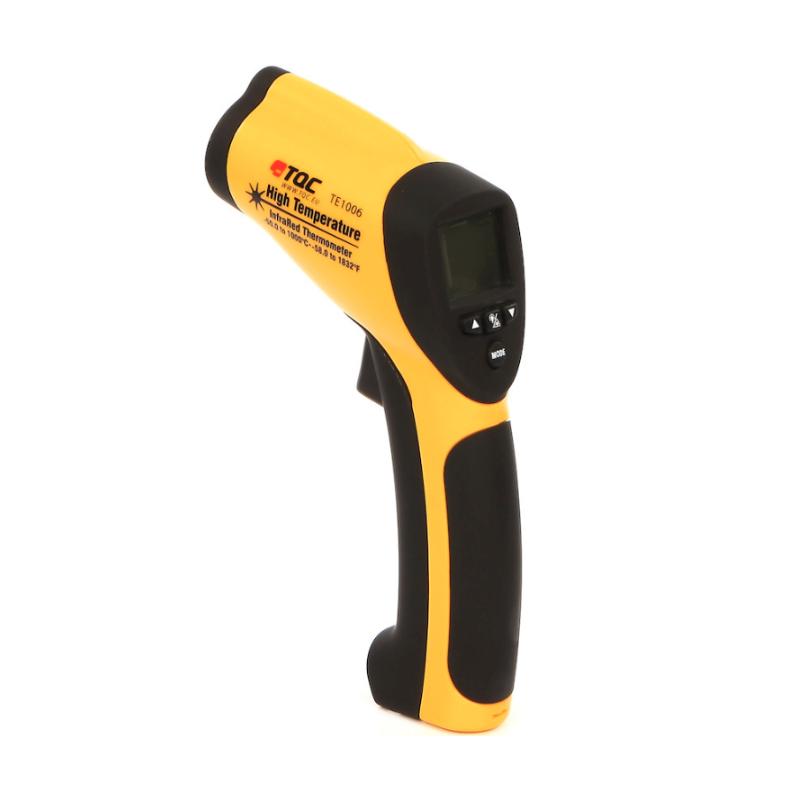

Actual picture of the product
