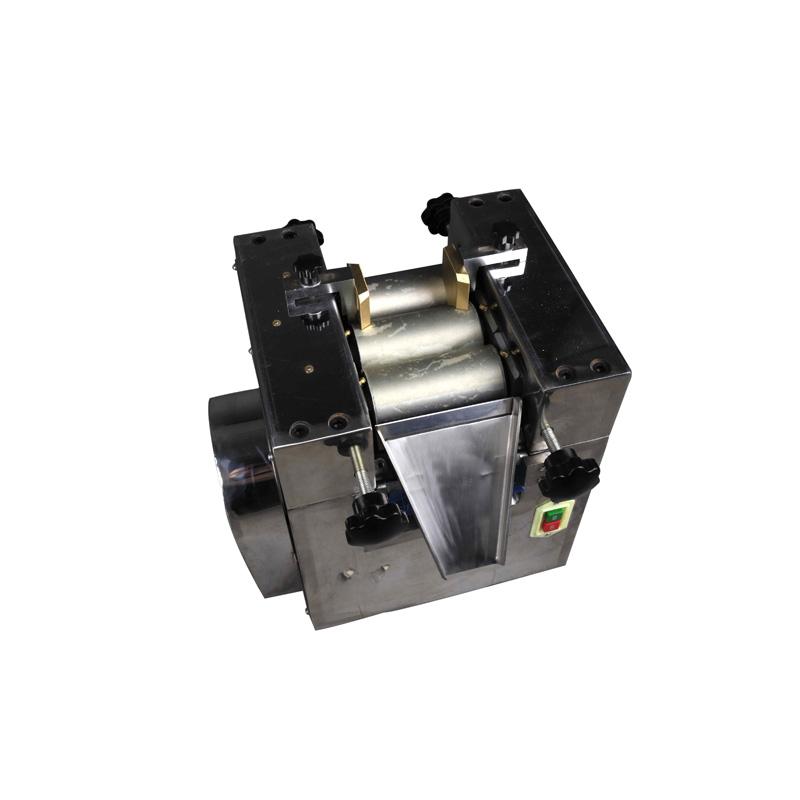

MODERNER Three-roll Grinder XD-20-65/T Three-roll material is alloy steel

The roll of the MODERNER XD-20-65/T (alloy steel) Three-roll Grinder is a three-roll grinding machine made of bimetallic cold hard alloy steel. The XD-20-65/T Three-roll Grinder is commonly used in syrup, colorant, chocolate, etc. in the product industry.
Certificate
Contact
Details SPEC CAT OI

Moderner XD-20-65/T (alloy steel) Grinder (three rolls)SPEC

Moderner XD-20-65/T (alloy steel) Grinder (three rolls)Details

Moderner XD-20-65/T (alloy steel) Grinder (three rolls)Packing list

SKU
NB001431
Motor Power
0.75KW
Dimensions
410*400*450mm
Weight
60kg
Roller diameter
65mm
Roller working length
130mm
Discharge port height from ground
220mm
Rotation speed
26rpm
Rotation speed of middle roller
70rpm
Rotation speed
145rpm
XD-20-65/T (alloy steel)
Grinder (three rolls)
MODERNER Three-roll Grinder XD-20-65/T Three-roll material is alloy steel Picture

Three Roll Mill Overview

MODERNER XD-20-65/T (alloy steel) three-roller Grinder is a special laboratory equipment that uses the mutual extrusion and friction of the surfaces of three horizontal rollers to grind and disperse samples. XD-20-65/T three-roller The Grinder is made of alloy steel. The surface of the steel roller is thermally sprayed with nickel alloy powder to form a bimetallic chilled alloy, which has the characteristics of high hardness, impact resistance, and wear resistance. This three-roller Grinder uses a parallel handwheel screw to adjust the distance between the rollers, which is simple and convenient.

Application fields of three-roller Grinder

XD-20-65/T (alloy steel) three-roller Grinder is suitable for dyes, rubber, paint, lead, food and other industries. It is especially suitable for the food industry, such as syrup, colorants, chocolate, etc., and has many applications.

Three-roller Grinder display diagram

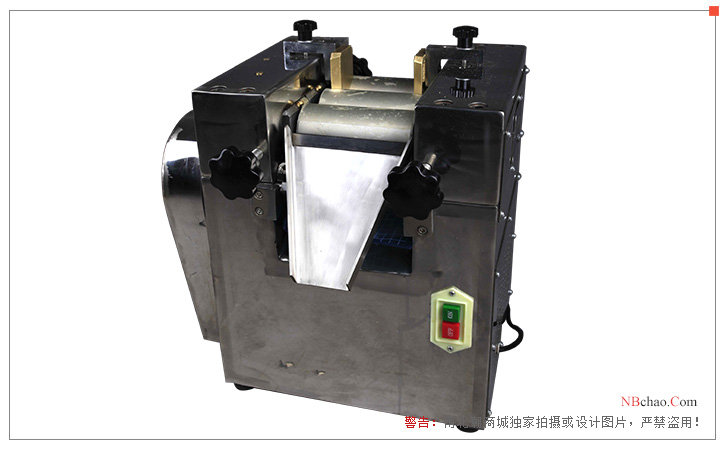

MODERNER XD-20-65/T (alloy steel) three-roller Grinder image

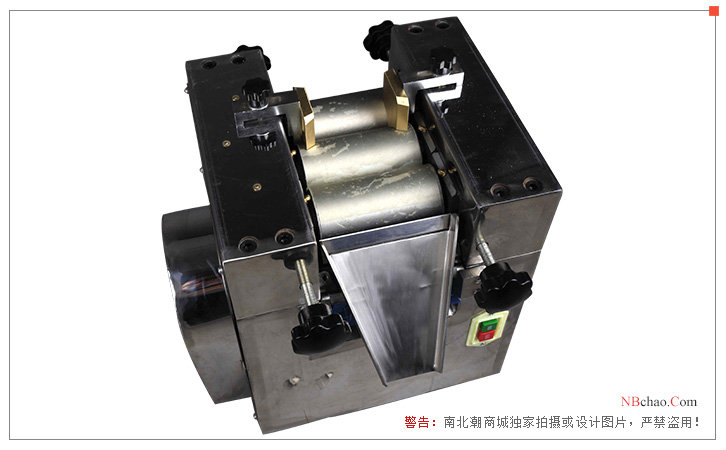

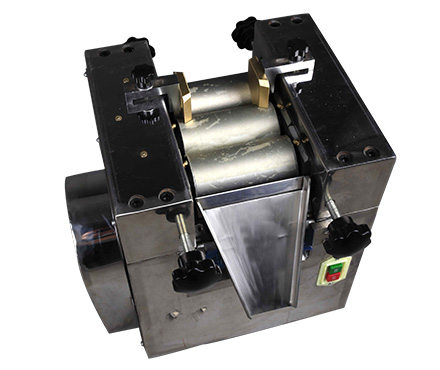

MODERNER XD-20-65/T (alloy steel) three-roller Grinder top view

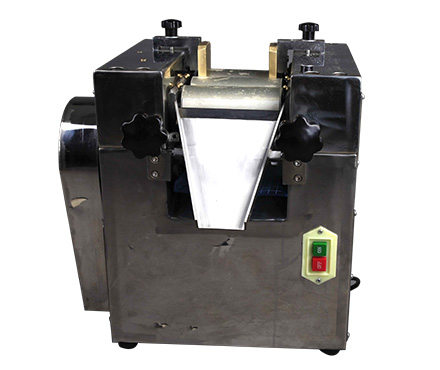

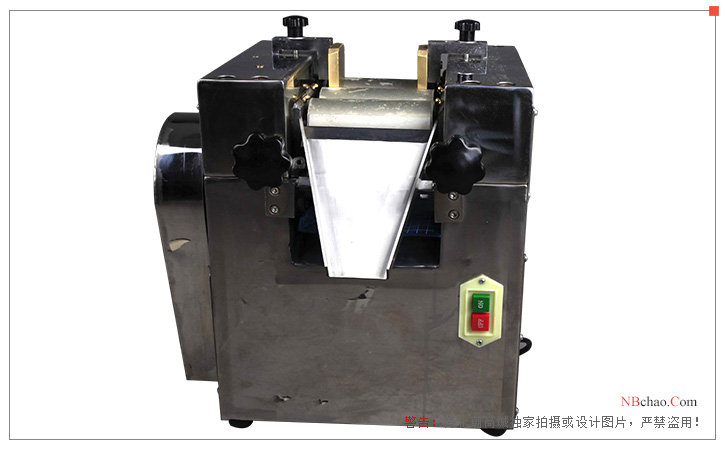

MODERNER XD-20-65/T (alloy steel) three-roller Grinder front view

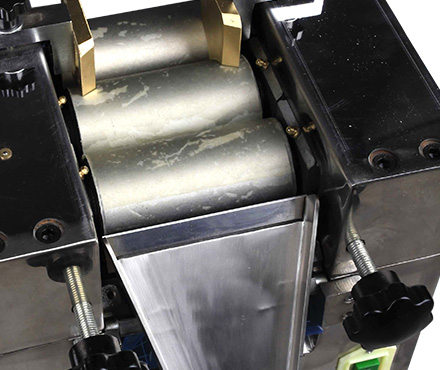

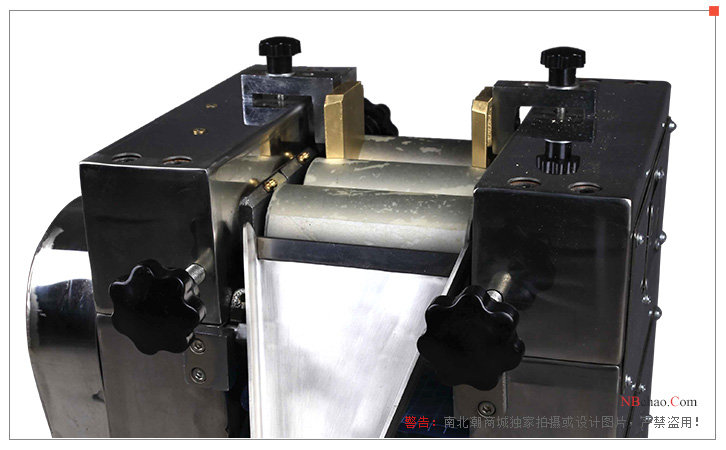

MODERNER XD-20-65/T (alloy steel) three-roller Grinder roller detail


FAQ
QCan the MODERNER XD-20-65/T (alloy steel) Grinder meet the GB/T21868.6 standard?
A Applicable, you can consult the customer service of the mall for details about the GB/T21868.6 standard.
QWhat level of grinding accuracy can this grinding machine achieve? It is the size of the particles after grinding.
A Hello, Grinder grinding particles can reach about 10μm, need to grind several times.
QWhich Three-roll grinder can be used for grinding chocolate?
A Hello, the modern environment of XD-20-65/T (alloy steel) Three-roll grinder is suitable for grinding chocolate.
QWhat is the difference between the three XD-20-65/T Grinders in the modern environment?
A Hello, the three models of Grinder are the same, but the materials of the rolls are different, namely zirconia, aluminum oxide, and alloy steel. The hardness of the three materials is different, and the application is also different.
