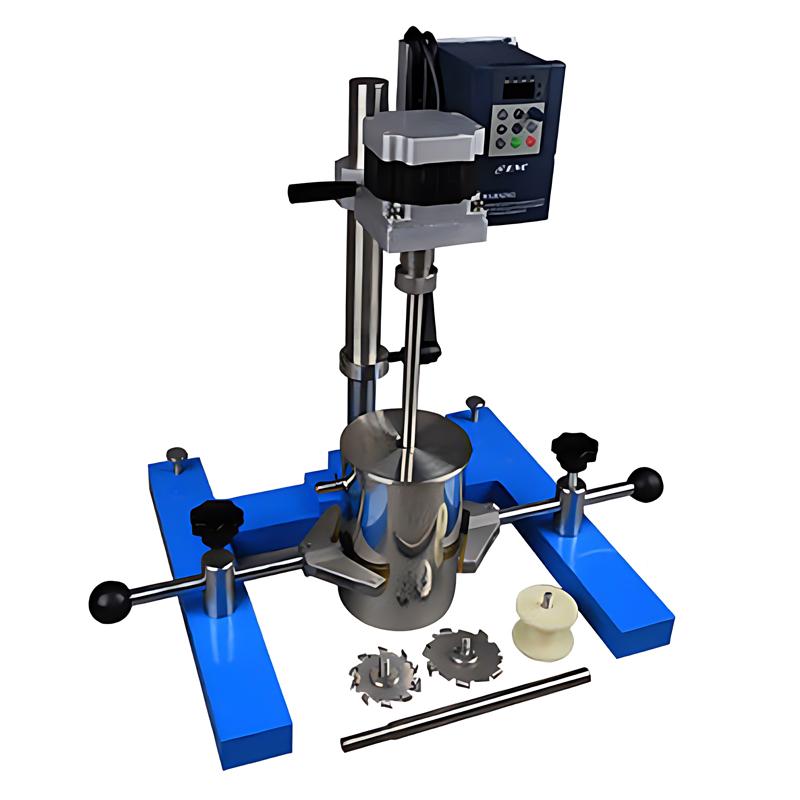

MODERNER SFJ-400A Sanding, Dispersion, Stir Multi-purpose Machine, Explosion-proof Motor

SFJ-400A

Multifunctional Stirring and Grinding Machine

Explosion-proof motor, vector frequency control, power 400W, set sand grinding, dispersion, Stir in one, multi-turn speed control button, speed range 50~3000rpm, spindle removable.

Overview of SFJ-400A sanding, dispersing and mixing multi-purpose machine

On the basis of SFJ-400, MODERNER SFJ-400A sanding, dispersing and stirring multi-purpose machine has improved the motor, reducing the motor power to 400W, so the speed range is correspondingly reduced to 50~3000rpm.

MODERNER SFJ-400A sanding, dispersing, stirring multi-purpose machine is a combination of sanding, dispersing, and stirring three functions. One machine is multi-purpose, which not only saves costs but also has wider applicability. It can be used as paint, paint, ink, color paint, etc. The mixing and dispersing equipment required by the chemical laboratory adopts vector frequency conversion to control the operation of the machine. The spindle speed is completely unaffected by the external torque change, and the operation is stable and reliable.

Features and advantages of SFJ-400A sanding, dispersing and mixing multi-purpose machine

1. Adopt brushless DC motor, vector frequency conversion control operation, digital knob speed adjustment, easy operation.

2. The main shaft of the SFJ-400A sanding, dispersing and mixing multi-purpose machine adopts a detachable structure design and is made of stainless steel.

3. It is suitable for use in chemical laboratories such as inks, paints, and coatings.

SFJ-400A sanding, dispersing, mixing multi-purpose machine operation method

1) Select a suitable mixing blade and screw it to the main shaft.

2) Install the spindle into the chuck: pull the sliding sleeve outside the chuck up to the highest point, and insert the spindle into the hole of the chuck. After the main shaft is inserted into the bottom, it rotates relatively until the sliding sleeve outside the chuck can be lowered to the lowest position. At this time, there should be no relative rotation between the chuck and the main shaft.

3) Loosen the locking handle of the column of the SFJ-400A sanding, dispersing and mixing multi-purpose machine, adjust the height of the mixing blade and the bottom of the barrel (can be positioned with a positioning ring), and then raise the main shaft to place the barrel.

4) Lower the main shaft to an appropriate position, and tighten the column locking handle.

5) Confirm that there is no contact between the stirring blade and the barrel, and then start stirring.

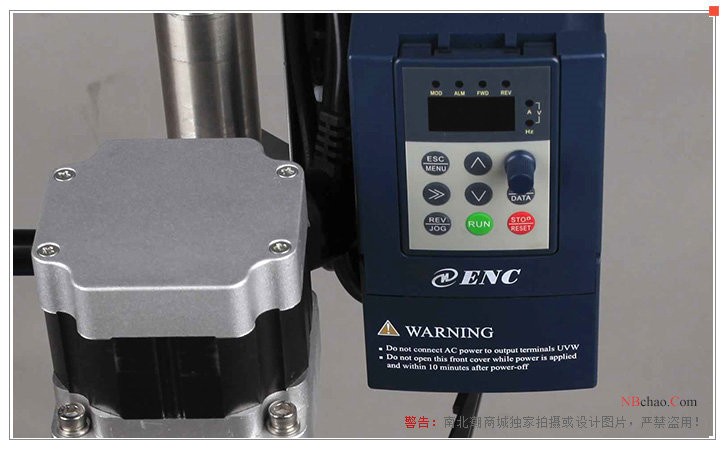

6) When the SFJ-400A sanding, dispersing and mixing multi-purpose machine is turned on, press the "RUN" button first, and then slowly turn the digital speed control knob to adjust to the speed required for the experiment.

7) After the operation is finished, first use the speed control knob to slow down the speed when shutting down, and then press "STOP" to shut down, so as not to cause the experimental samples to splash out when the speed is increased too fast when the machine is turned on next time.

8) After the SFJ-400A sanding, dispersing and mixing multi-purpose machine is used, it should be cleaned in time for subsequent use.

Precautions for use

1. Do not change the parameters of the frequency converter by yourself. It has been set before leaving the factory to avoid abnormal operation.

2. Before stopping stirring, lower the stirring speed first, and then press the stop button to avoid liquid splashing caused by too fast starting speed next time.

3. Do not rotate the spindle at high speed when there is no material and no load.

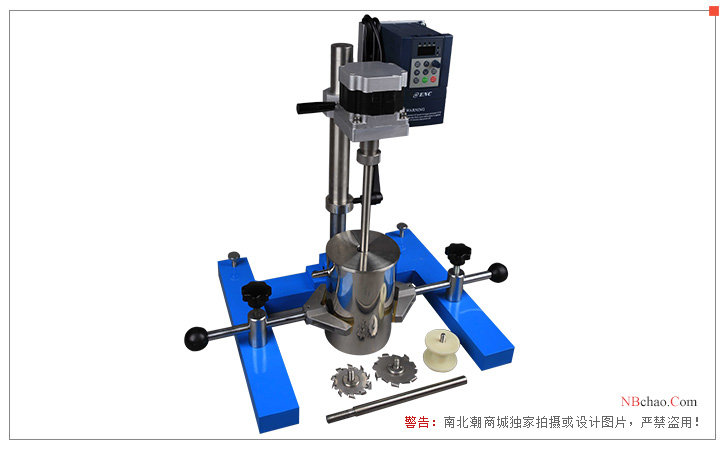

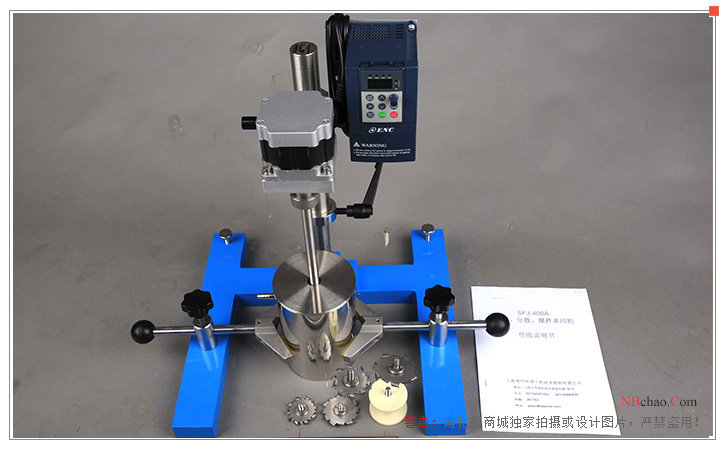

SFJ-400A sanding, dispersing and mixing multi-purpose machine display

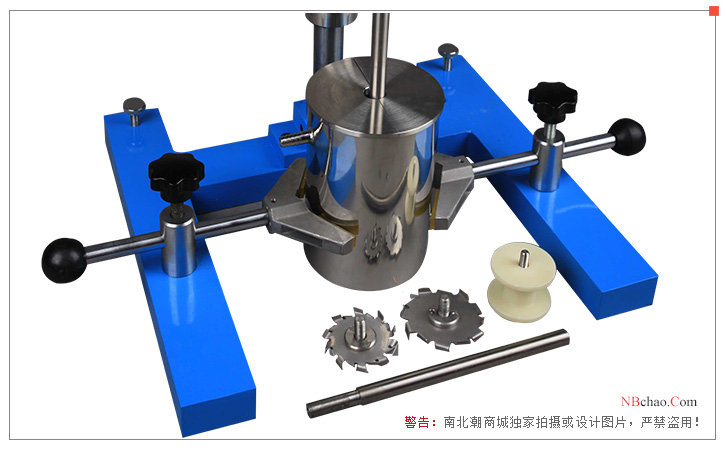

Packing list：Host x1, quick-change spindle x2, phi 60 dispersion disc x1, phi 50 dispersion disc x1, phi 60 sand disc x1, 1.25L sandwich barrel x1, M6 hexagonal wrench x1, instruction manual x1

[Note]Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
