No. 5 ISO Flow Cup Portable and desktop ISO2431 standard Flow Cup aperture is 5mm

The No. 5 ISO Flow Cup is a No. 5 ISO cup produced by TQC in the Netherlands in line with the ISO2431 standard. The No. 5 ISO Flow Cup has two models, VF2185 and VF2183, and the filter aperture is 5mm. Aluminum.
Model：
Certificate
Contact
Details SPEC

TQC sheen SPEC

TQC sheen Details

TQC sheen Packing list

SKU
NB001437
Viscosity range
91~326cSt
outflow time
30~100s
flow hole diameter
5mm
Applicable standards
ISO 2431
Cup body material
aluminum alloy
No. 5 ISO Flow Cup Portable and desktop ISO2431 standard Flow Cup aperture is 5mm Picture

The Dutch TQC No. 5 ISO outFlow Cup is an ISO outflow Viscosity Cup with a pore size of 5mm and meets the ISO2431 international standard. The No. 5 ISO outFlow Cups are available in both portable and benchtop versions, with the models VF2185 and VF2183 respectively, and measure the viscosity range of the same91-326cst.

Among them, the portable No. 5 ISO outFlow Cup is a lightweight Viscosity Cup equipped with a long handle, which can be measured by the hand-held ISO outFlow Cup, and is often used on the construction site or production site;

The desktop No. 5 ISO outFlow Cup is a desktop structure, and the test generally needs to be used with a stand, and it is more used in the laboratory for annual testing, and the rigor of the measurement will be higher than that of the portable ISO outFlow Cup, and it will not be interfered with by manpower.

Comparison of the different types of ISO outFlow Cups No. 5

TQC Portable No. 5 ISO Flowout Cup

Type: Portable No. 5 ISO Outflow Cup

Model: VF2185

Filter diameter: 5mm

Viscosity range: 91-326Cst

Outflow time: 30~100s

Material: Aluminum alloy

Standard: ISO2431

TQC Benchtop No. 5 ISO Outflow Cup

Type: Benchtop No. 5 ISO outFlow Cup

Model: VF2183

Filter diameter: 5mm

Viscosity range: 91-326Cst

Outflow time: 30~100s

Material: titanium anodized aluminum

Standard: ISO2431

Size: 92×92×85mm

No. 5 ISO outFlow Cup display

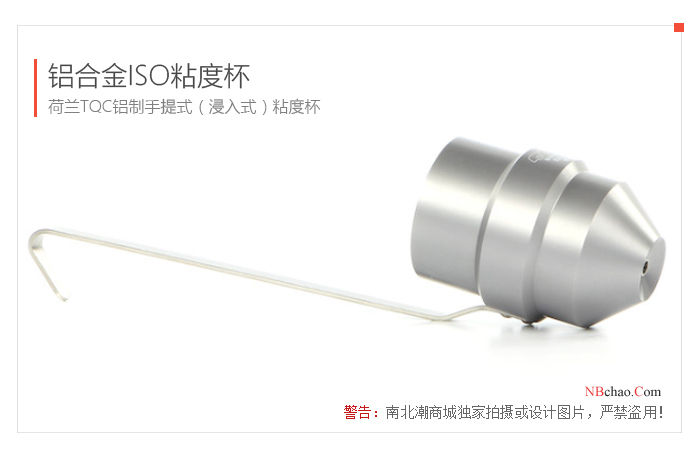

Exterior drawing of the Dutch TQC portable No. 5 ISO outFlow Cup

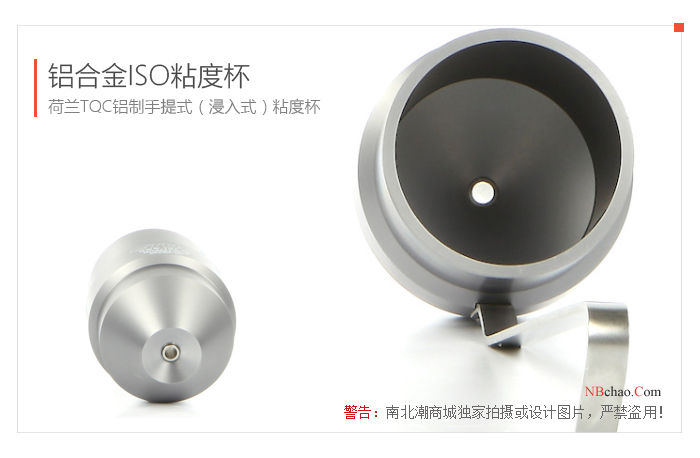

Detail of the Dutch TQC portable No. 5 ISO outFlow Cup filter

Exterior drawing of the Dutch TQC desktop No. 5 ISO outFlow Cup

Detail of the filter of the Dutch TQC desktop No. 5 ISO outFlow Cup
