KEELREIN DHG-9145A Desktop Forced Air Drying Oven Temperature range: + 10~300 ℃

KEELREIN DHG-9145A desktop Forced Air Drying Oven is used for drying, baking wax melting, sterilizing, Temperature range is 10~300 ℃, DHG-9145A desktop Forced Air Drying Oven adopts stainless steel liner.
Model:
Certificate

Keelrein DHG-9145A Desktop Forced Air Drying OvenSPEC

Keelrein DHG-9145A Desktop Forced Air Drying OvenDetails

Keelrein DHG-9145A Desktop Forced Air Drying OvenPacking list

SKU
NB014382
Temperature range
RT+10~300℃
Temperature Fluctuation
±1℃
Temperature Resolution
0.1℃
Volume
136L
Interior size
550*450*550mm
Chamber material
stainless steel
Shelf (std.)
2pcs
Timer
1~9999min
Power supply Voltage
220V 50Hz
Input Power
2170W
Environmental temperature
RT+5~40℃
Dimensions
830*650*730mm
Imported motor
Yes.
imported thyristor
Yes.
Independent temperature limiting Controller
optional
LCD Independent Overtemperature Protectioning Controller
optional
printer
optional
Communication interface
RS-485 interface and communication software (optional)
DHG-9145A
Desktop Forced Air Drying Oven

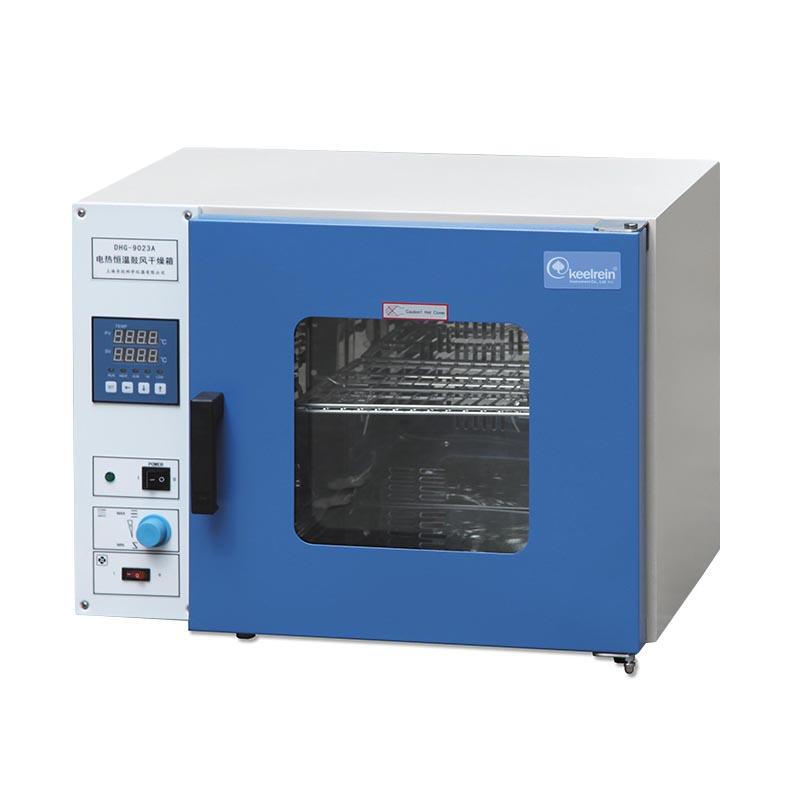

KEELREIN DHG-9145A Desktop Forced Air Drying Oven Temperature range: + 10~300 ℃ Picture

Introduction

Shanghai Qixin DHG-9145A desktop Forced Air Drying Oven is used for drying, baking, wax melting and sterilization for industrial and mining enterprises, laboratories and scientific research units.

Features

1. The LED digital high-highlight microcomputer temperature controller with temperature control protection and timing function is used to control the temperature accurately and reliably.

2. The box is made of mirror stainless steel or argon arc welding of wire drawing plate material, and the box is made of good steel plate material, which is beautiful and novel.

3. The hot air circulation system is composed of a fan that can run continuously at high temperature and a suitable air duct. The temperature in the studio is uniform.

4. Imported fan and imported thyristor are adopted, which have a long service life and can avoid frequent replacement.

5. Independent temperature limit alarm system, which will be automatically interrupted when the limit temperature is exceeded, so as to ensure the safe operation of the experiment without accidents. (Optional)

6. It can be equipped with a printer or 485 interface, which is used to connect to a printer or computer to record the temperature parameter changes in real time. (Optional)

7. With "D" series, it is an intelligent ten-segment programmable LCD controller.



FAQ
QDoes this desktop air drying oven meet JB/T5520 standard?
A This desktop blast drying oven is suitable for JB/T5520. Please consult customer service for detailed application definition
