Ford4 cup, immersion and laboratory standard imported ford cup, filter aperture 4.1mm

The Ford4 cup imported from the Netherlands is a standard FORD cup produced by TQC. The filter aperture of this Ford4 cup is 4.1mm, and there are two types: immersion and desktop, which are used for viscosity testing on construction sites and in laboratories respectively.
Model：
Certificate
Contact
Details SPEC

TQC sheen SPEC

TQC sheen Details

TQC sheen Packing list

SKU
NB001441
Viscosity range
70~370cSt
outflow time
30~100s
flow hole diameter
4.1mm
Applicable standards
ASTM D1200
Cup body material
aluminum alloy
Ford4 cup, immersion and laboratory standard imported ford cup, filter aperture 4.1mm Picture

The brand name of the Ford No.4 cup is TQC in the Netherlands, and here we offer two different shapes that can be used interchangeablyThe Ford No. 4 cup, one is portable (immersive) and the other is tabletop, and the basic parameters of both are the same. Both can be used on the construction site and in the laboratory, but the measurement convenience of the former is more used for testing on the go during the production process, and the latter is often used more in the laboratory because it needs to be equipped with a stand.

2 paragraphsWhy the Ford No. 4 cup can be used interchangeably

1. The diameter of the filter is 4.1mm;

2. All are produced and designed according to ASTM D1200 standard, and the materials are all aluminum alloy;

3. The measured viscosity range is 70~370cst;

4. The measured flow time range is 30~100s.

Therefore, in general, the two can be used interchangeably.

2 paragraphsFord No. 4 cup profile contrast

Portable Ford Cup No.4 (VF2087)Tabletop Ford No.4 Cup (VF2032）

Exterior image of the hand-held Ford No.4 cup (VF2087).

Exterior image of the Ford No. 4 Cup (VF2032) on the table

Application of the Ford Cup

The Ford No. 4 cup is primarily suitable for the rapid determination of viscosity values of products that conform to or are close to Newtonian mechanical properties, such as paints, paints, pigments. It is suitable for paints, coatings and other industries.

Ford No. 4 Cup

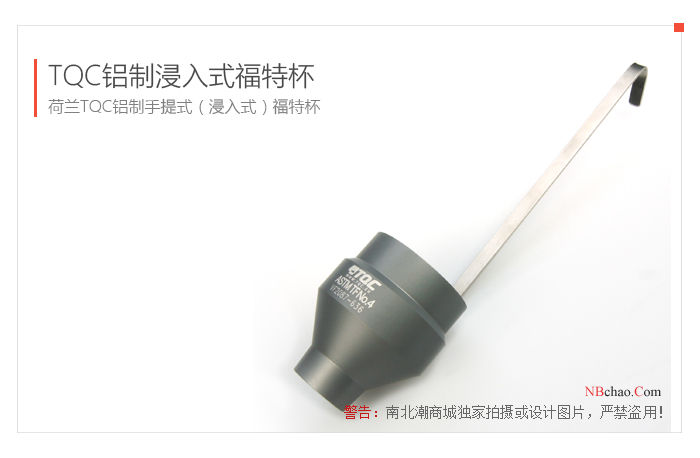

Front view of the hand-held Ford Cup No. 4 (VF2087).

Detail of the hand-held Ford No.4 cup (VF2087).

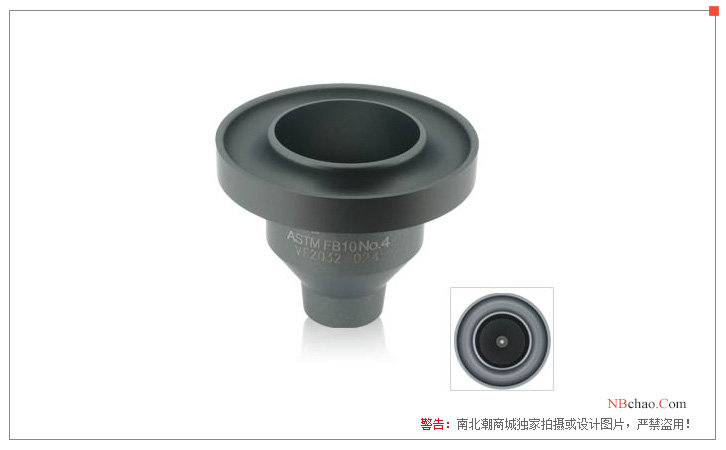

Tabletop Ford No. 4 Cup (VF2032) image and aperture detail
