No. 4 Din Viscosity Cup 4 Din cups imported from TQC in the Netherlands that meet the DIN standard

This page provides 4 different No. 4 Din Viscosity Cups from TQC in the Netherlands. The 4 No. 4 Din Viscosity Cups have the same diameter but have their own characteristics, including portable aluminum, desktop aluminum, portable stainless steel, and desktop stainless steel.
Model：
Certificate
Contact
Details SPEC

TQC sheen SPEC

TQC sheen Details

TQC sheen Packing list

SKU
NB001445
Viscosity range
96~683cSt
outflow time
25~150s
flow hole diameter
4mm
Applicable standards
DIN 53211
Cup body material
Titanium anodic oxidation aluminum
Filter material
stainless steel
No. 4 Din Viscosity Cup 4 Din cups imported from TQC in the Netherlands that meet the DIN standard Picture

Overview of the No. 4 Din Viscosity Cup

The No. 4 Din Viscosity Cup is designed and developed according to the Din 53211 standard, and the Din Viscosity Cup with a filter diameter of 4mm is suitable for testing the viscosity value of samples in paints, paints, coatings, inks and other industries. The Dutch TQC produced 4 different typesThe viscosity of the No. 4 Din cup, but the viscosity value of the sample is calculated by the time it takes for the liquid to flow out of the bottom pore, in fact, the principle of measurement is the same.

Types of No. 4 Din Viscosity Cups

1、DesktopTitanium-anodized aluminum No. 4 Din Viscosity Cup: The model isVF1999，The cup is made of titanium anodized aluminum, and the filter holder and filter are made of stainless steel for laboratory use. (The display picture is below)

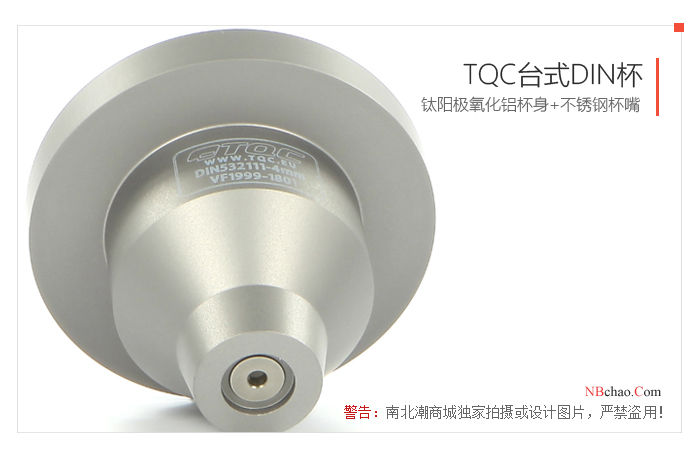

A display of the Dutch TQC desktop titanium anodized aluminum

2、portableTitanium anodized aluminumNo. 4 Din Viscosity Cup：The model isVF2073，The cup body is titanium anodized aluminum, and the filter holder and filter are made of stainless steel, which is used on siteThe flow time is 25~150s, and the viscosity range is 96~683cst. (The display picture is below)

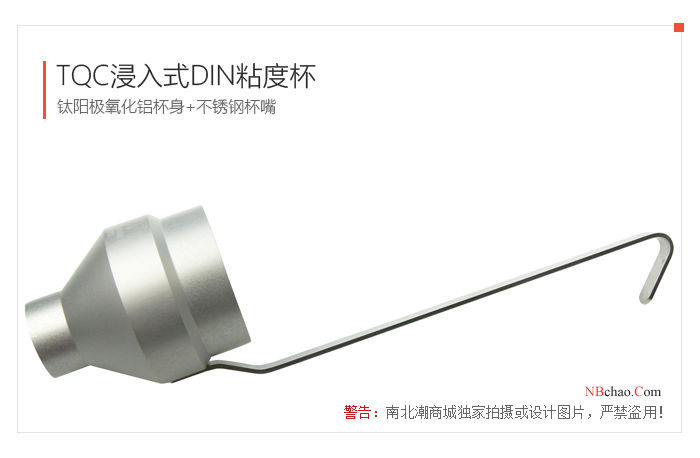

Dutch TQC portable titanium anodized aluminum No. 4 Din Viscosity Cup display

3、DesktopStainless steel No. 4 Din Viscosity Cup: The model isVF2015The whole cup is made of stainless steel and is used in the laboratory. (The display picture is below)

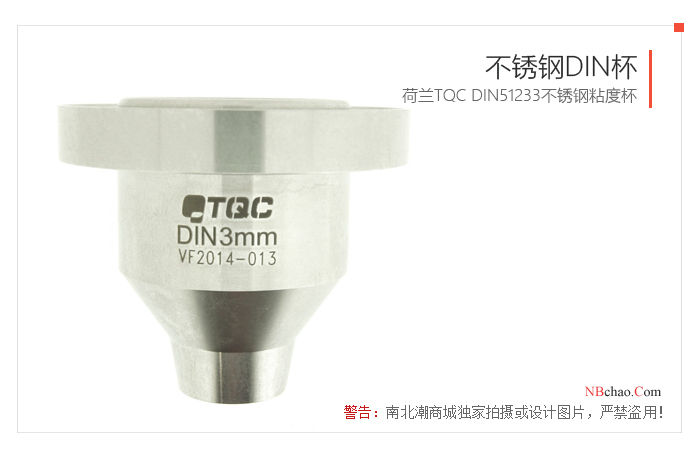

Dutch TQC desktop stainless steel No. 4 Din Viscosity Cup display diagram

4、Hand-held stainless steel No. 4 Din Viscosity Cup：The model isVF2215The whole cup is made of stainless steel, which is used on the construction site, with a flow time of 25~150s and a viscosity range of 96~683cst. (The display picture is below)

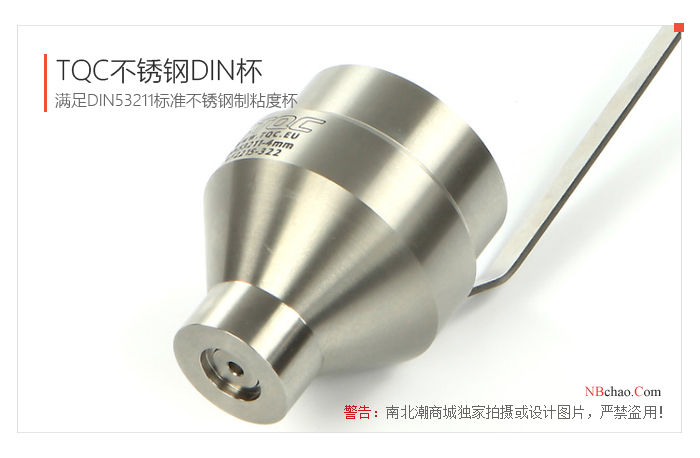

Dutch TQC portable stainless steel No. 4 Din Viscosity Cup display
