KEELREIN DGG-9626AD Vertical electric thermostatic Drying Oven 300 ℃/624L

KEELREIN DGG-9626AD Drying Oven is a Temperature range: + 10~300 ℃, Temperature Fluctuation of +/- 1 ℃ vertical electric thermostatic Forced Air Drying Oven, DGG-9626AD electric thermostatic Forced Air Drying Oven for industrial and mining enterprises, laboratories, R & D institutions for drying, baking wax melting, sterilizing effect.
Model:
Certificate

Keelrein DGG-9626AD Vertical electric thermostatic Drying OvenSPEC

Keelrein DGG-9626AD Vertical electric thermostatic Drying OvenDetails

Keelrein DGG-9626AD Vertical electric thermostatic Drying OvenPacking list

SKU
NB014450
Temperature range
RT+10~300℃
Temperature Fluctuation
±1℃
Temperature Resolution
0.1℃
Volume
624L
Interior size
800*600*1300mm
Chamber material
stainless steel
Shelf (std.)
4pcs
Timer
1~9999min
Power supply Voltage
380V 50Hz
Input Power
4200W
Environmental temperature
RT+5~40℃
Environmental humidity
50%RH
Dimensions
980*800*1800mm
Imported motor
Yes.
imported thyristor
Yes.
Smart 10-segment programmable liquid crystal Controller
Yes.
Independent temperature limiting Controller
optional
LCD Independent Overtemperature Protectioning Controller
optional
printer
optional
Communication interface
RS-485 interface and communication software (optional)
DGG-9626AD
Vertical electric thermostatic Drying Oven

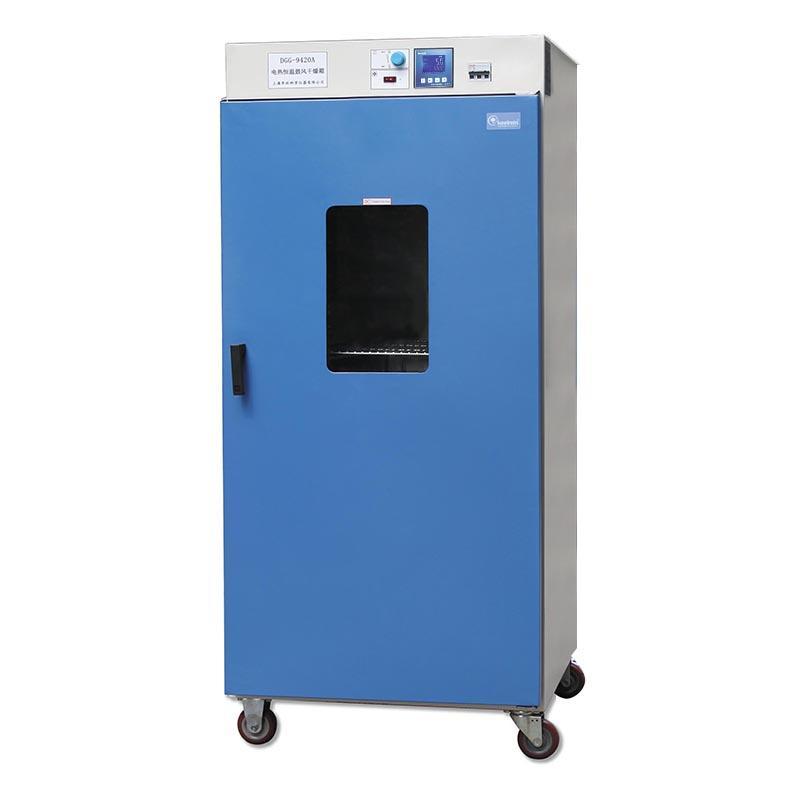

KEELREIN DGG-9626AD Vertical electric thermostatic Drying Oven 300 ℃/624L Picture

Introduction

Shanghai Qixin DGG-9626AD vertical electric heating constant temperature Forced Air Drying Oven is used for drying, baking, wax melting and sterilization in industrial and mining enterprises, laboratories and scientific research units.

Features

1. The LED digital high-highlight microcomputer temperature controller with temperature control protection and timing function is used to control the temperature accurately and reliably.

2. The box is made of mirror stainless steel argon arc welding, and the box is made of good steel plate material, which is beautiful and novel.

3. Vertical, vertical forced convection, imported original fan, imported thyristor, uniform temperature in the studio.

4. Imported fan and imported thyristor are adopted, which have a long service life and can avoid frequent replacement.

5. Independent temperature limit alarm system, which will be automatically interrupted when the limit temperature is exceeded, so as to ensure the safe operation of the experiment without accidents. (Optional)

6. It can be equipped with a printer or 485 interface, which is used to connect to a printer or computer to record the temperature parameter changes in real time. (Optional)

7. With "D" series, it is an intelligent ten-segment programmable LCD controller.

FAQ
QMeet GB/T1725 thermostatic blast drying oven
A DGG-9626AD thermostatic blast drying oven, please refer to it.
