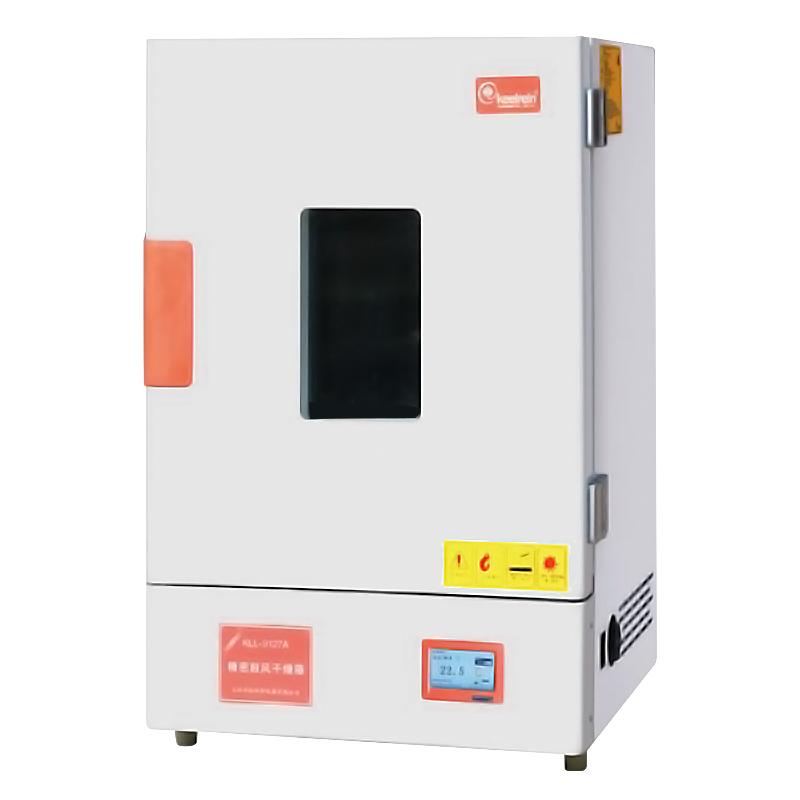

KEELREIN KLL-9078A vertical precision Forced Air Drying Oven 300 ℃/71L
KEELREIN KLL-9078A Drying Oven is a Temperature range: + 10~300 ℃, Temperature Fluctuation of +/- 1 ℃ vertical precision Forced Air Drying Oven, KLL-9078A dense Forced Air Drying Oven studio volume of 71L, with 30 segment programming function.
Model：
KLL-9078A
Similar products
Keelrein KLL-9078A Vertical precision Forced Air Drying OvenSPEC
Keelrein KLL-9078A Vertical precision Forced Air Drying OvenDetails
Keelrein KLL-9078A Vertical precision Forced Air Drying OvenPacking list
- SKU
- NB014456
- Temperature range
- RT+10~300℃
- Temperature Fluctuation
- ±0.5℃
- Temperature Resolution
- 0.1℃
- Temperature Uniformity
- ±2℃
- Volume
- 71L
- Interior size
- 415*415*415mm
- Chamber material
- stainless steel
- Shelf (std.)
- 2pcs
- Timer
- 1~9999min
- Power supply Voltage
- 220V 50Hz
- Environmental temperature
- 20℃
- Environmental humidity
- 50%RH
- Dimensions
- 540*540*780mm
- LCD temperature Controller
- Yes.
- Imported motor
- Yes.
- imported thyristor
- Yes.
- Programmable temperature printing
- buy
- 25Mm test hole
- buy
- Independent temperature limiting Controller
- buy
- Communication interface
- RS-485 interface and communication software (optional)

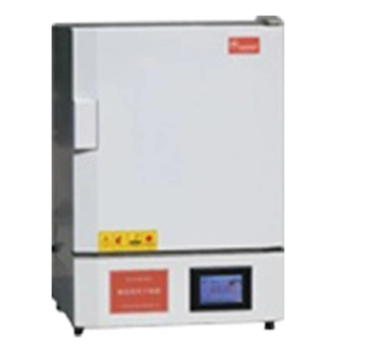

KLL-9078A
Vertical precision Forced Air Drying Oven
Introduction
Shanghai Qixin KLL-9078A precision Forced Air Drying Oven is used for drying, heat treatment, disinfection and moisturizing functions of industrial and mining enterprises, laboratories and scientific research units.
Features
1. 5-inch large-screen LCD touch screen, menu-based operation interface, multi-group data display on one screen.
2. The inner tank is made of good stainless steel material, and the shelves can be loaded and unloaded freely, which is convenient for the cleaning of the studio.
3. Imported motor and imported thyristor are used to prolong the service life.
4. The LCD controller has a 30-segment programming function.
FAQ
QCan all drying ovens be tested in the GB/T21782.7 standard?
A
Not necessarily, but this KLL-9078A drying oven can be considered.
