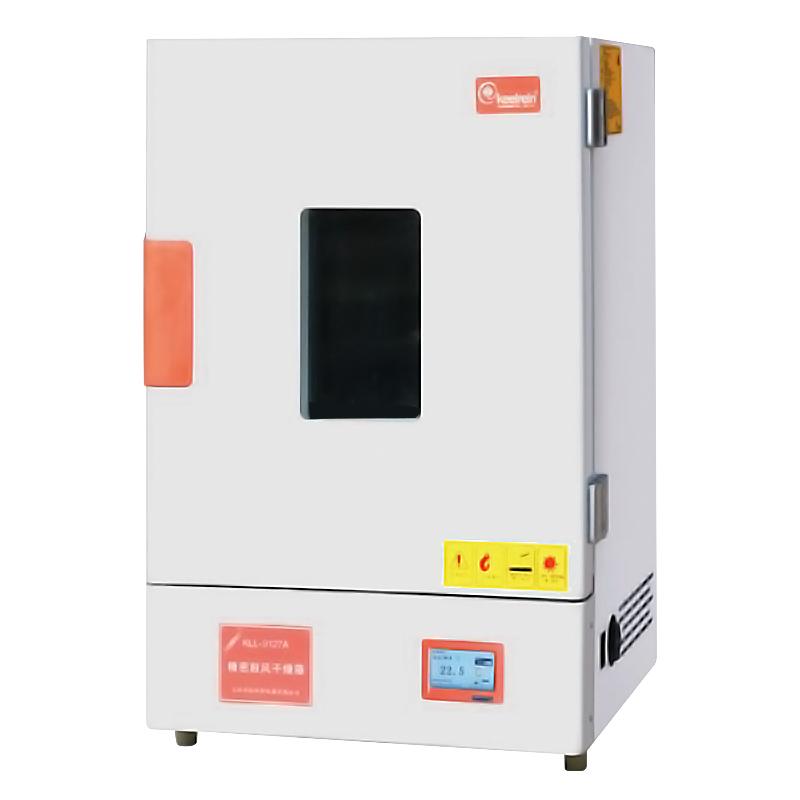

KEELREIN KLL-9208A Vertical precision Forced Air Drying Oven 300 ℃/201L
KEELREIN KLL-9208A Drying Oven is a Temperature range: + 10~300 ℃, Temperature Fluctuation of +/- 1 ℃ vertical precision Forced Air Drying Oven, KLL-9208A dense Forced Air Drying Oven for industrial and mining enterprises, laboratories, R & D institutions for drying, heat treatment, sterilizing and moisturizing.
Model：
KLL-9208A
Similar products
-
HUITAI DHG-9240A blast drying oven RT + 10~ 250 ℃ 220L laboratory drying oven$ 685.00SE -
MODERNER GFX-9203A Forced Air Drying Oven 220L -
RONGHUA DHG-9240 Electric thermostatic Drying Oven$ 509.00SE -
Kenton 101-3AS digital Electric Forced Air Drying Oven stainless steel liner 300 ℃/225L$ 649.00SE -
RONGHUA DHG-9240A Electric thermostatic Drying Oven$ 694.00SE
Keelrein KLL-9208A Vertical precision Forced Air Drying OvenSPEC
Keelrein KLL-9208A Vertical precision Forced Air Drying OvenDetails
Keelrein KLL-9208A Vertical precision Forced Air Drying OvenPacking list
- SKU
- NB014458
- Temperature range
- RT+10~300℃
- Temperature Fluctuation
- ±0.5℃
- Temperature Resolution
- 0.1℃
- Temperature Uniformity
- ±2℃
- Volume
- 201L
- Interior size
- 580*600*580mm
- Chamber material
- stainless steel
- Shelf (std.)
- 2pcs
- Timer
- 1~9999min
- Power supply Voltage
- 220V 50Hz
- Environmental temperature
- 20℃
- Environmental humidity
- 50%RH
- Dimensions
- 705*715*950mm
- LCD temperature Controller
- Yes.
- Imported motor
- Yes.
- imported thyristor
- Yes.
- Programmable temperature printing
- buy
- 25Mm test hole
- buy
- Independent temperature limiting Controller
- buy
- Communication interface
- RS-485 interface and communication software (optional)

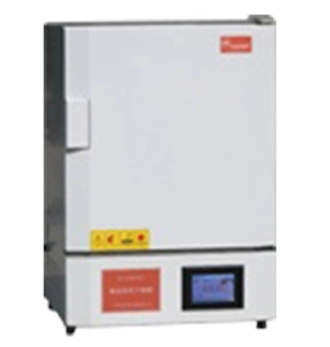

KLL-9208A
Vertical precision Forced Air Drying Oven
Introduction
Shanghai Qixin KLL-9208A precision Forced Air Drying Oven is used for drying, heat treatment, disinfection and moisturizing functions for industrial and mining enterprises, laboratories and scientific research units.
Features
1. 5-inch large-screen LCD touch screen, menu-based operation interface, multi-group data display on one screen.
2. The inner tank is made of good stainless steel material, and the shelves can be loaded and unloaded freely, which is convenient for the cleaning of the studio.
3. Imported motor and imported thyristor are used to prolong the service life.
4. The LCD controller has a 30-segment programming function.
FAQ
QDoes this drying oven meet JB/T5520 standard?
A
This drying oven is suitable for JB/T5520, please consult customer service for detailed application definition
