KEELREIN SX2 - 2.5-10 N Box-Type Resistance Furnace 1000 ℃/1.9L

KEELREIN SX 2 - 2.5-10 N digital display Box-Type Resistance Furnace is made of refractory furnace material, Power is 2.5KW, SX 2 - 2.5-10 N has a 120 * 200 * 80mm size studio, and the rated temperature is 1000 ℃.
Model:
Certificate

Keelrein SX2-2.5-10N Digital Box FurnaceSPEC

Keelrein SX2-2.5-10N Digital Box FurnaceDetails

Keelrein SX2-2.5-10N Digital Box FurnacePacking list

SKU
NB014471
maximum temperature
1000℃
Heating Elements
resistance wire
Furnace material
refractory
Furnace Volume
1.9L
Heating power
2.5KW
Thermocouple
Thermocouple K
Furnace size
120*200*80mm
Power supply Voltage
220V
SX2-2.5-10N
Digital Box Furnace

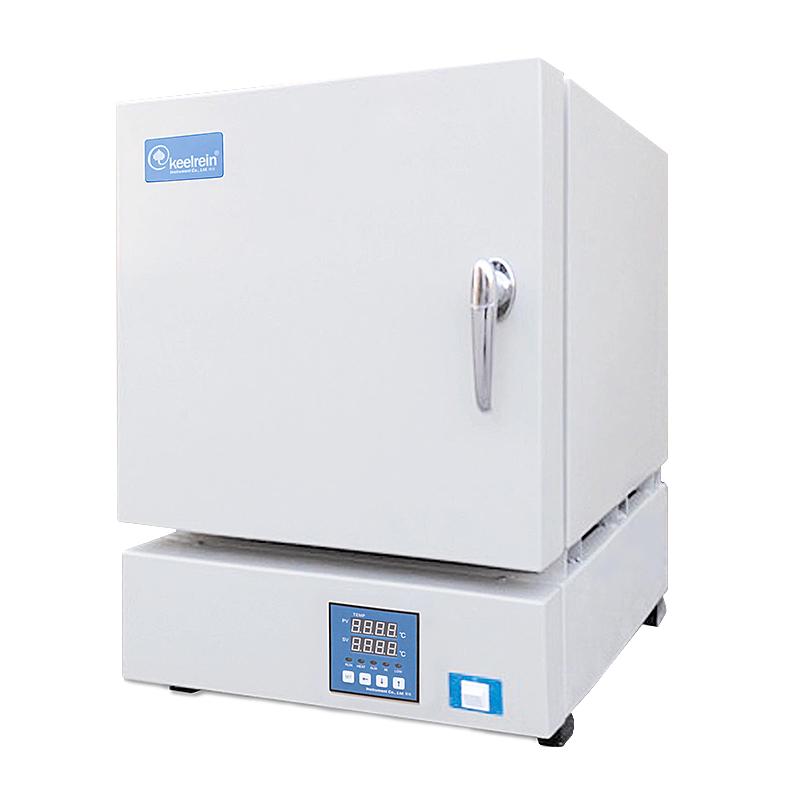

KEELREIN SX2 - 2.5-10 N Box-Type Resistance Furnace 1000 ℃/1.9L Picture

Introduction

SX2 series digital display Box-Type Resistance Furnace is a periodic operation equipment. Used for further elemental analysis and determination by industrial and mining enterprises, scientific research units and university laboratories, and can also be used for heat treatment processing such as quenching, annealing and tempering of small steel parts. The high-temperature furnace can also be used for sintering, dissolving and analyzing metals and ceramics.

Features

  The workshop furnace of SX2 series digital display box-type Resistance Furnace is made of refractory material; The SX2-TP series is a furnace made of alumina microcrystalline fiber material. The heating element is placed in it, and only insulation material is used between the furnace chamber and the furnace shell. The furnace shell is made of angle steel and good steel plate folding and welding. The TP series products are 30-stage program control.

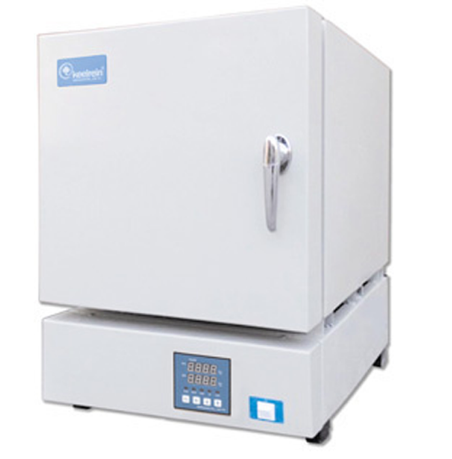

Shanghai Qixin SX2-2.5-10N digital display box-type Resistance Furnace display diagram
