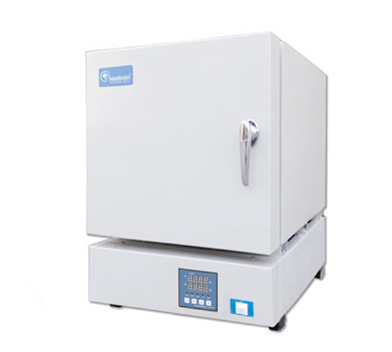

KEELREIN SX2-4-10TP digital Box-Type Resistance Furnace 1000 ℃/7.2L
SX2-4-10TP
-
HUITAI 2.5-10 T ceramic fiber muffle furnace volume 7.2L temperature control up to 1000 ℃ -
BENTING CSX2-4-10T laboratory muffle furnace 1000 ℃/7.2L -
BENTING CSX2-4-10 laboratory Resistance Furnace 1000 ℃/7.2L -
BOZHEN BZ-4-10 integrated muffle furnace Box-Type Resistance Furnace 4KW 1000 ℃$ 413.00SE -
MODERNER MFL2-4-10A Experimental muffle furnace 7.2L
Keelrein SX2-4-10TP Digital Box FurnaceSPEC
Keelrein SX2-4-10TP Digital Box FurnaceDetails
Keelrein SX2-4-10TP Digital Box FurnacePacking list
- SKU
- NB014474
- maximum temperature
- 1000℃
- Heating Elements
- resistance wire
- Furnace material
- Microcrystalline fiber of aluminum oxide
- Furnace Volume
- 7.2L
- Heating power
- 3KW
- Thermocouple
- Thermocouple K
- Furnace size
- 200*300*120mm
- Power supply Voltage
- 220V
- Furnace material
- microcrystalline fiber
- Thirty-segment program control
- Yes
Introduction
SX2 series digital display Box-Type Resistance Furnace is a periodic operation equipment. Used for further elemental analysis and determination by industrial and mining enterprises, scientific research units and university laboratories, and can also be used for heat treatment processing such as quenching, annealing and tempering of small steel parts. The high-temperature furnace can also be used for sintering, dissolving and analyzing metals and ceramics.
Features
The workshop furnace of SX2 series digital display box-type Resistance Furnace is made of refractory material; The SX2-TP series is a furnace made of alumina microcrystalline fiber material. The heating element is placed in it, and only insulation material is used between the furnace chamber and the furnace shell. The furnace shell is made of angle steel and good steel plate folding and welding. The TP series products are 30-stage program control.
