KEELREIN SX2-8-10TP digital Box-Type Resistance Furnace 1000 ℃/16L

KEELREIN SX2-8-10TP digital Box-Type Resistance Furnace adopts aluminum oxide microcrystalline fiber furnace material, rated temperature 1000 ℃, SX2-8-10TP Box-Type Resistance Furnace adopts 30-stage program control, Power is 8KW.
Model:
Certificate

Keelrein SX2-8-10TP Digital Box FurnaceSPEC

Keelrein SX2-8-10TP Digital Box FurnaceDetails

Keelrein SX2-8-10TP Digital Box FurnacePacking list

SKU
NB014476
maximum temperature
1000℃
Heating Elements
resistance wire
Furnace material
Microcrystalline fiber of aluminum oxide
Furnace Volume
16L
Heating power
8KW
Thermocouple
Thermocouple K
Furnace size
250*400*160mm
Power supply Voltage
220V
Furnace material
microcrystalline fiber
Thirty-segment program control
Yes
SX2-8-10TP
Digital Box Furnace

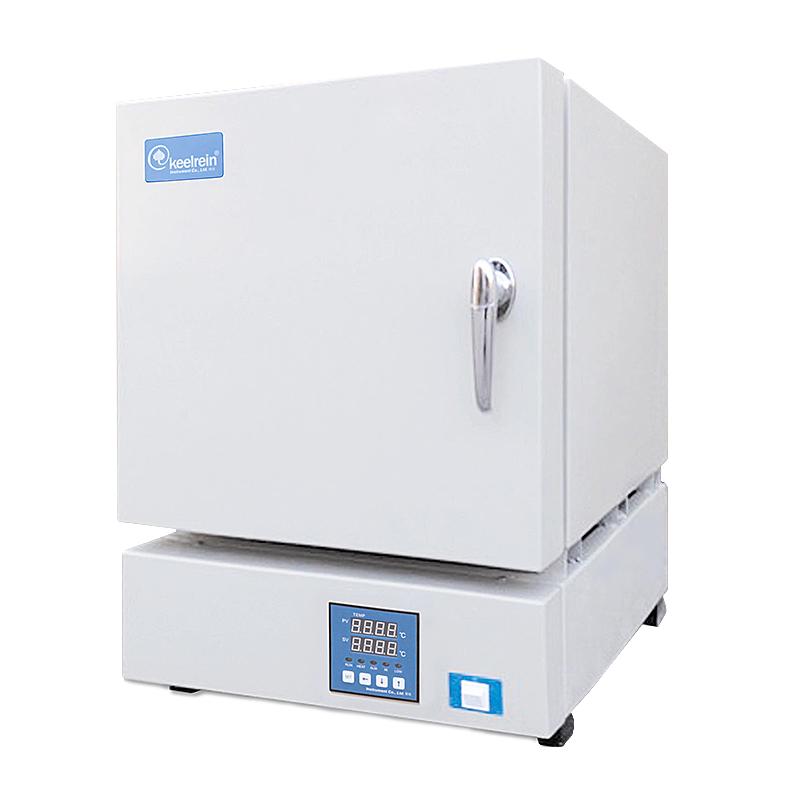

KEELREIN SX2-8-10TP digital Box-Type Resistance Furnace 1000 ℃/16L Picture

Introduction

SX2 series digital display Box-Type Resistance Furnace is a periodic operation equipment. Used for further elemental analysis and determination by industrial and mining enterprises, scientific research units and university laboratories, and can also be used for heat treatment processing such as quenching, annealing and tempering of small steel parts. The high-temperature furnace can also be used for sintering, dissolving and analyzing metals and ceramics.

Features

  The workshop furnace of SX2 series digital display box-type Resistance Furnace is made of refractory material; The SX2-TP series is a furnace made of alumina microcrystalline fiber material. The heating element is placed in it, and only insulation material is used between the furnace chamber and the furnace shell. The furnace shell is made of angle steel and good steel plate folding and welding. The TP series products are 30-stage program control.

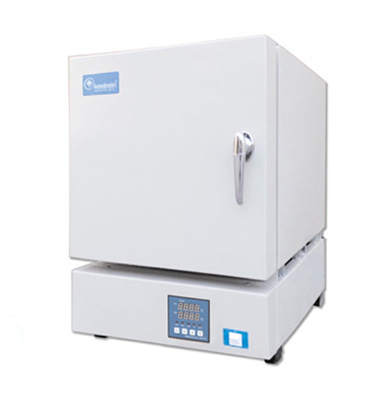

Shanghai Qixin SX2--8-10TP digital display box-type Resistance Furnace display diagram
