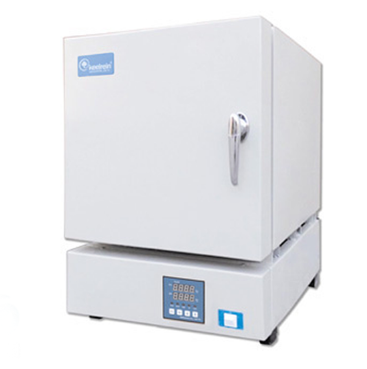

KEELREIN SX2-4-13TP digital display Box-Type Resistance Furnace 1300 ℃/3.7L
SX2-4-13TP
-
YIHENG SX2-4-13NP programmable Box-Type Resistance Furnace high temperature type 4L$ 2071.00SE -
BENTING SRJX-4-13L Box-Type Resistance Furnace 1300 ℃ -
BENTING CSRJX-2.5-13 tube furnace Resistance Furnace 1300 ℃ -
BENTING CSRJX-2-13 tube furnace Resistance Furnace 1300 ℃ -
BENTING CSRJX-4-13 silicon carbon rod Resistance Furnace 1300 ℃/4L
Keelrein SX2-4-13TP Digital Box FurnaceSPEC
Keelrein SX2-4-13TP Digital Box FurnaceDetails
Keelrein SX2-4-13TP Digital Box FurnacePacking list
- SKU
- NB014485
- maximum temperature
- 1300℃
- Heating Elements
- silicon carbide rod
- Furnace material
- Microcrystalline fiber of aluminum oxide
- Furnace Volume
- 3.7L
- Heating power
- 4KW
- Thermocouple
- S-type Thermocouple
- Furnace size
- 150*250*100mm
- Power supply Voltage
- 220V
- Furnace material
- microcrystalline fiber
- Thirty-segment program control
- Yes
Introduction
SX2 series digital display Box-Type Resistance Furnace is a periodic operation equipment. Used for further elemental analysis and determination by industrial and mining enterprises, scientific research units and university laboratories, and can also be used for heat treatment processing such as quenching, annealing and tempering of small steel parts. The high-temperature furnace can also be used for sintering, dissolving and analyzing metals and ceramics.
Features
The workshop furnace of SX2 series digital display box-type Resistance Furnace is made of refractory material; The SX2-TP series is a furnace made of alumina microcrystalline fiber material. The heating element is placed in it, and only insulation material is used between the furnace chamber and the furnace shell. The furnace shell is made of angle steel and good steel plate folding and welding. The TP series products are 30-stage program control.
