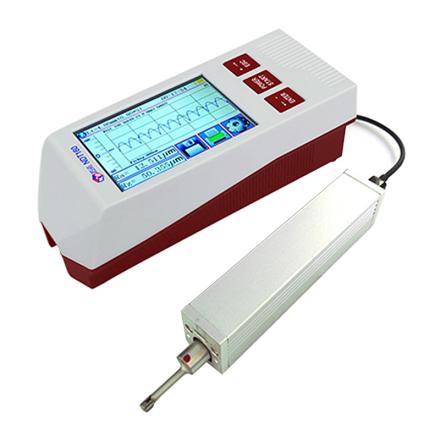

Specifications
| Display | digital display |
| Measurement parameters | Ra,Rz,Rq,Rt，Rp,Rv,R3z,R3y,Rz(JIS),Rs,Rsk,Rsm,Rku,Rmr; Ry(JIS);Rmax，RPc，Rk，Rpk，Rvk，Mr1，Mr2 |
| Measuring range | Z-axis (vertical): ± 80μm/± 160µm (enhanced); X-axis (horizontal): 20mm |
| resolution | Z（ ）: 0.01μ m / ± 20μ m 、 0.02μ m / ± 40μ m 、 0.04μ m / ± 80μ m 、 0.08μ m / ± 160μ m |
| Error of indication | ≤±10％ |
| Indication of variability | ≤6％ |
| Sampling length | 0.25,0.8,2.5mm |
| Evaluation length | Ln = lr × n n = 1 ~ 5 |
| Sensors - Radius | 5μm |
| Sensors stylus | Natural diamond, 90 cone angle, 5 μm tip radius |
| Sensors - Force Measurement | 4mN |
| Sensors - Angle | 90 cone angle |
| Sensors - measurement principle | Displacement differential inductor |
| Drive speed - when measuring | lr=0.25, Vt=0.135mm/s;lr=0.8, Vt=0. 5mm/s;lr=2.5, Vt=1mm/s |
| Drive speed - when returning | Vt=1mm/s |
| filter | RCPC-RCGAUSSD-P |
| Measurement profile | Linear dispersion, Roughness profile, Direct profile |
| Power | Built-in lithium-ion rechargeable battery, charged with DC5V, 800mA charger |
| Dimensions | Host: 64 * 53 * 160mm Driver: 23 * 27 * 115mm |
| Product Weight | About 380g |
| Operating Conditions | Temperature: - 20 ℃~ 40 ℃; Humidity: < 90% RH |
| Applicable standard | ISO, ANSI, DIN, JIS |
| Sensors - Guide | Carbide, sliding direction radius 40mm |
| Storage and transportation environment | Temperature: - 40 ℃~ 60 ℃; Humidity: < 90% RH |
| Indication Accuracy | 0.001µm |
Packing list
Host x1, Sensors driver X1, Sensors x1, multi-notch standard sample block x1, test block bracket X1, adjustable bracket x1, power adapter x1, manual x1, certificate x1, warranty card x1, even computer background operation software CD X1, instrument special case x1
After-sales instructions
Warranty days: 730 days
1. After the instrument confirms the receipt, it will be replaced free of charge within 3 months if there is a quality problem under the normal operating conditions of the "Instruction Manual";
2、Warranty period2years (except consumables, probes, sensors, cables)；
3. After-sales service is provided by the original factory;
4. Free maintenance during the warranty period, and long-term technical support outside the warranty period.
[Note] For after-sales services outside the Chinese mainland, if the instrument requires repair, the shipping and possible associated taxes shall be borne by the sender. Generation address of the manual: http://en.nbchao.com/p/14491/Specification.html , which is only used by users who purchase commodities from the NBCHAO.
