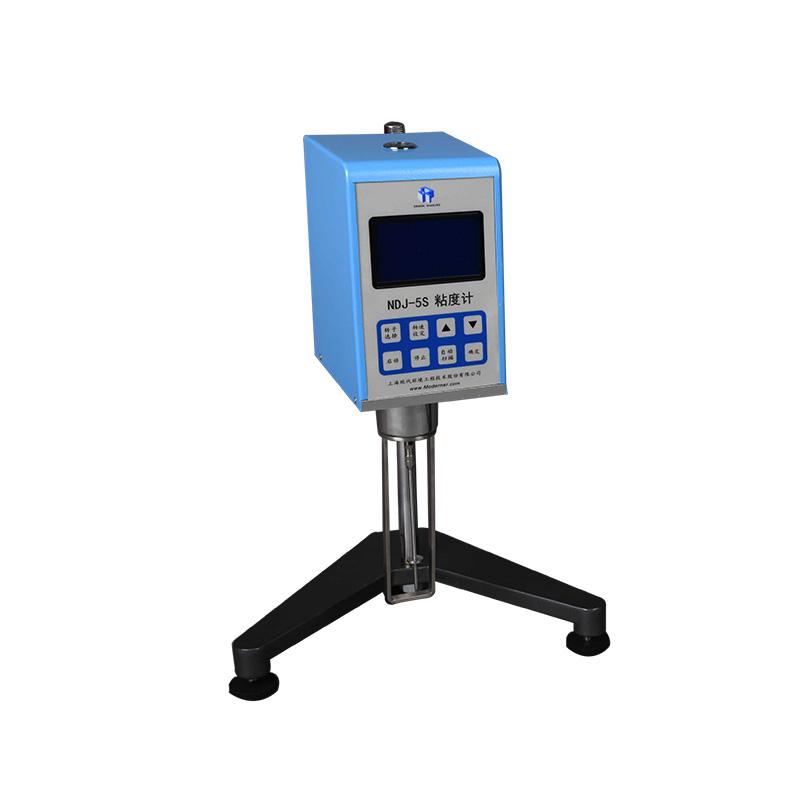

MODERNER NDJ-5S Digital Rotational Viscometer viscosity range 1-100000cp
NDJ-5S
-
HUINUO NDJ-5S digital display Rotational Viscometer 100,000 CP$ 448.00SE -
HUINUO NDJ-5S Digital Rotational Viscometer Viscosimeter with L0 rotor$ 556.00SE -
HUINUO NDJ-5S Digital Rotational Viscometer with RTD temperature sensor$ 466.00SE -
HUINUO NDJ-5S Laboratory Rotational Viscometer with a small number of sample adapters$ 801.00SE -
HUINUO NDJ-1S digital Rotational Viscometer with RTD temperature sensor$ 411.00SE
Moderner NDJ-5S Digital Rotational ViscometerSPEC
Moderner NDJ-5S Digital Rotational ViscometerDetails
Moderner NDJ-5S Digital Rotational ViscometerPacking list
- SKU
- NB001454
- Display mode
- digital
- Measurement range
- 1~100000mPa·s
- Rotor specification
- 1#、2#、3#、4#
- Rotor speed
- 6/12/30/60rpm
- Reproducibility
- ±0.5%F.S
- Measurement Accuracy
- ±2%F.S
- Power
- 110~230V 50Hz/60Hz
- Interface
- R232C Communication interface one, temperature probe interface one, power jack one
- Application standard
- JJG-2005 standard
- Dimensions
- 300*300*450mm
- Weight
- 5kg
- Display information
- Automatically displays the maximum viscosity value measurable for the selected rotor and Rotation speed combination
- Automatic scan function
- According to the viscosity value of the test sample, a better Rotor speed combination can be automatically prompted
NDJ-5S Digital Rotational Viscometer overview
MODERNER NDJ-5S Digital Rotational Viscometer is an intelligent digital display Rotational Viscometer that uses 16-bit high-performance single-chip microprocessor technology. It controls the speed through a microcomputer and no longer uses the old method of gear speed adjustment. Has higher operating efficiency. As a newly launched Digital Rotational Viscometer in a MODERNER, it is designed and developed based on the advantages of the existing Rotational Viscometer and the shortcomings of improvement. It has the characteristics of simple and fast operation, high measurement accuracy, stable rotation speed, wide working Voltage and Immunity to interference.
Applications
MODERNER NDJ-5S Digital Rotational Viscometer is widely used in the measurement of biochemical products, paints, cosmetics, inks, solvent-based adhesives, latex, pulp, food, starch, coatings and other fields.

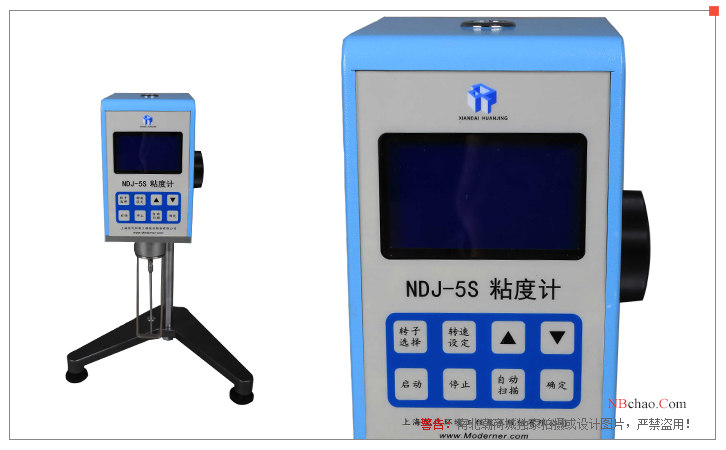

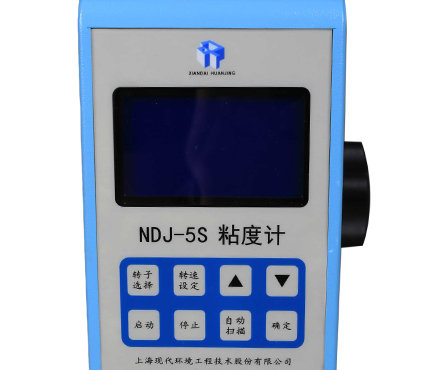

Features
1. NDJ-5S Digital Rotational Viscometer is designed and manufactured in accordance with JJG-2005 standards;
2. It uses a large LCD with blue backlight function, which is intuitive and clear;
3. Display information: rotor number, speed, range, viscosity, temperature, opening angle %;
4. â²/â¼ function keys, used to change the rotation speed and rotor number selection
5. The "speed setting" function key prompts the speed and the cursor flashes.
6. The "Rotor Selection" function key prompts the rotor number and the cursor flashes.
7. "Start, stop" function keys to execute or terminate the current measurement program
8. Press the "OK" function key to confirm the currently selected information.
9. The "Auto Scan" function key can help users choose the appropriate rotor speed combination for unknown samples to measure.

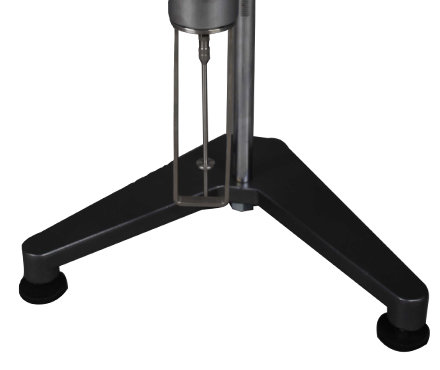

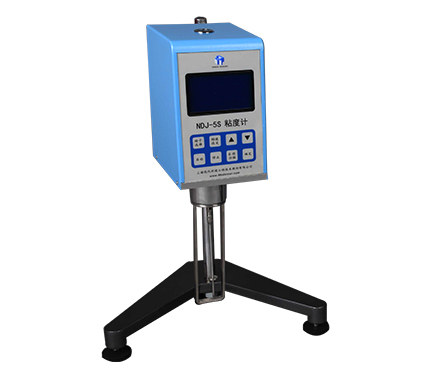

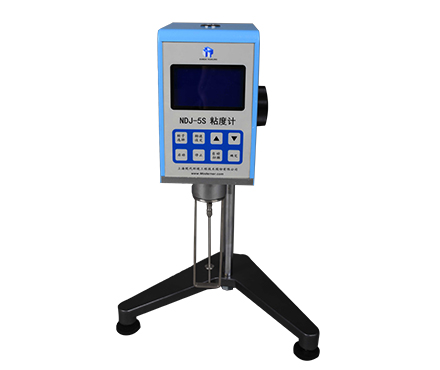

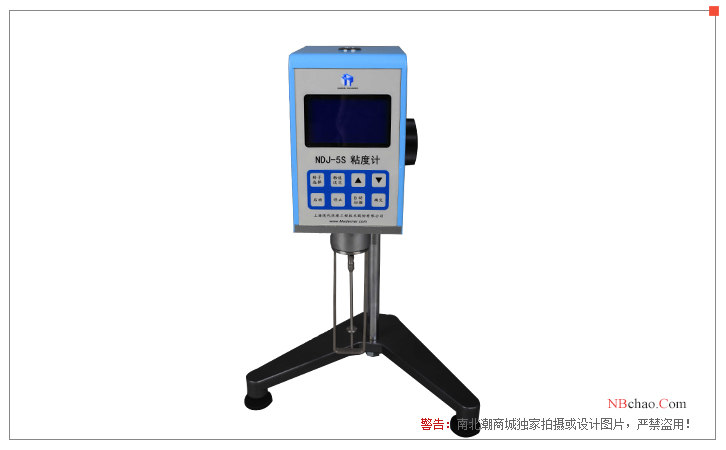

Product display picture
Optional
âUltra-low viscosity rotor (0# rotor)
âConstant temperature circulating bath
âStandard silicone oil
âTemperature probe
âGlass jacketed cup
âSoftware
- 1GB/T 12004.4-2003《Polyvinyl chloride paste--Determination of apparent viscosity by the Brookfield test method》
- 2GB/T 18856.4-2002《Test methods for coal-water slurry mass, part 4, method for determining apparent viscosity of coal-water slurry》
- 3GB/T 265-1988《Petroleum products--Determination of kinematic viscosity and calculation of dynamic viscosity》
- 4JB/T 9357-1999《General technical conditions for laboratory rotational viscometers》
