Dual-use Coating Thickness Gauge AMITTARI AC-110AS External thickness probe type, thickness range 0~1250um

AC-110AS

Coating Thickness Gauge

Magnetic eddy current dual function, thickness measurement accuracy +/- 3%; automatic memory calibrated value, optional RS-232C/USB/Bluetooth data processing interface.

Overview

AMITTARI AC-110AS dual-purposeCoating Thickness GaugeIt is a portable battery-powered measuring instrument using the principles of magnetic induction and eddy current. The measurement method conforms to the international standards ISO2178, ISO2360 and national standards GB4956, GB4957.AC-110ASCoating Thickness GaugeUsing computer technology, non-destructive testing technology and other professional technologies, the thickness of the measured object can be accurately measured without damaging it.

Featured benefits

* The F-type probe can directly measure the thickness of non-magnetic overlays (e.g., paint, plastic, enamel, copper, aluminum, zinc, chromium, etc.) on the surface of magnetically permeable materials (e.g., iron, nickel). It can be applied to the thickness measurement of electroplating, paint layer, enamel layer, aluminum tile, copper tile, babbitt alloy tile, phosphating layer and paper, and can also be used for thickness measurement of hull paint and attachments of underwater structural parts.

* NF type probe can measure the thickness of the insulating covering on non-magnetic metal substrates, such as paint, plastic, rubber coatings on the surface of materials such as aluminum, copper, zinc, non-magnetic stainless steel, etc., and can also measure the anodizing thickness of aluminum or aluminum alloy materials.

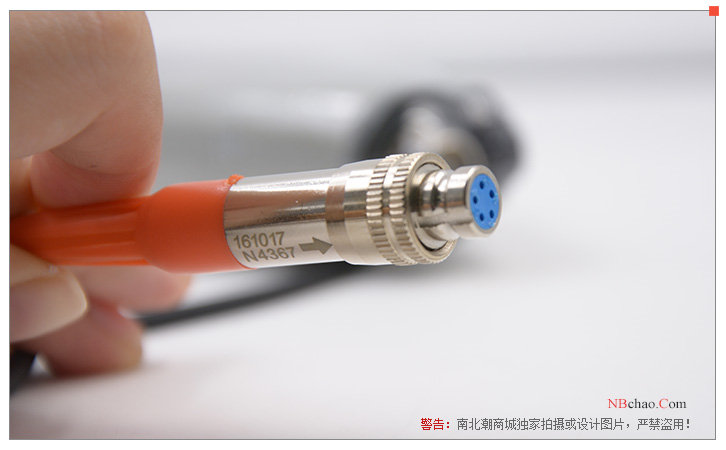

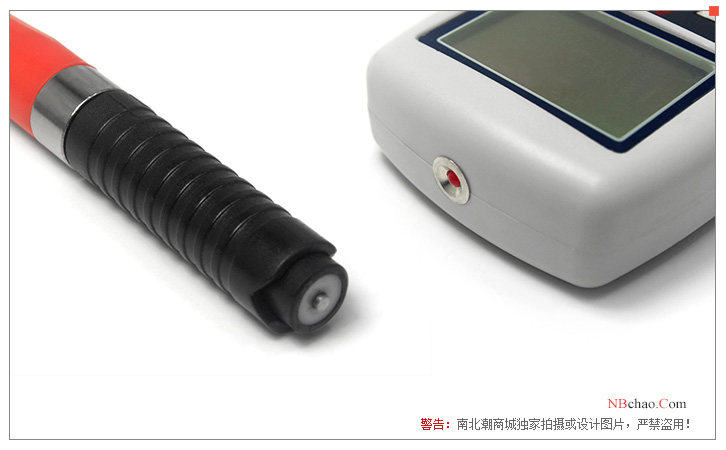

* AC-110ASCoating Thickness GaugeSpring-loaded guided-sleeve probes with wear-resistant hard metal probes can measure on hard or rough surfaces with constant compression force and stable sampling values.

* Wide measurement range and high resolution.

* Automatic memory of calibration values, easy to use.

* Small size and light weight.

* Digital backlit display, no parallax.

* With the optional RS232C software and cable, it can communicate with the PC computer to realize the functions of data collection, processing, analysis and printing.

* AC-110AS dual-purposeCoating Thickness GaugeIt is equipped with automatic shutdown to achieve power saving function.

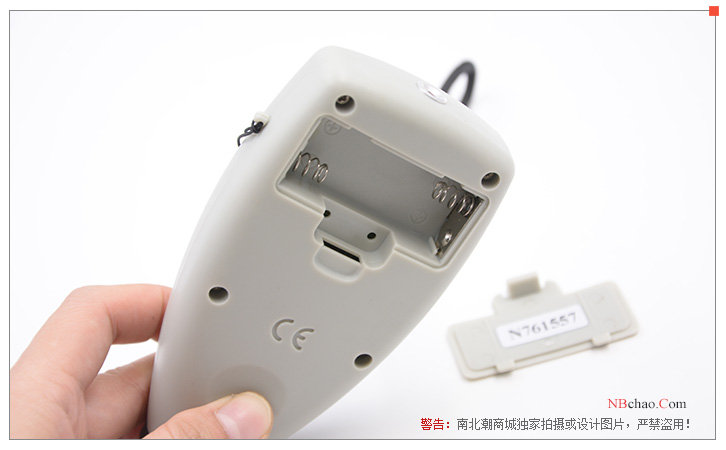

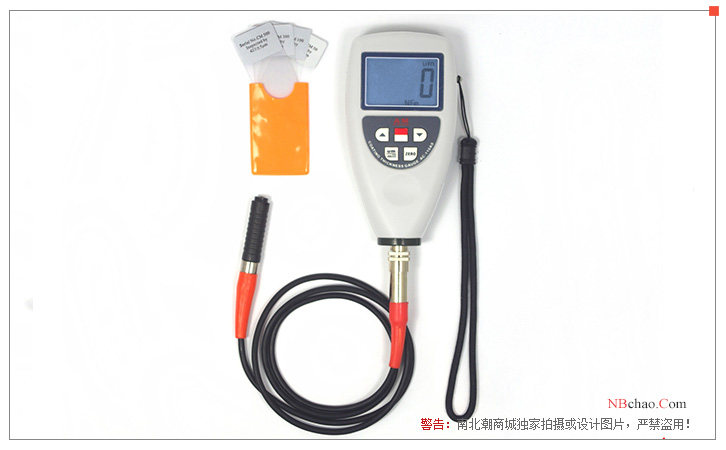

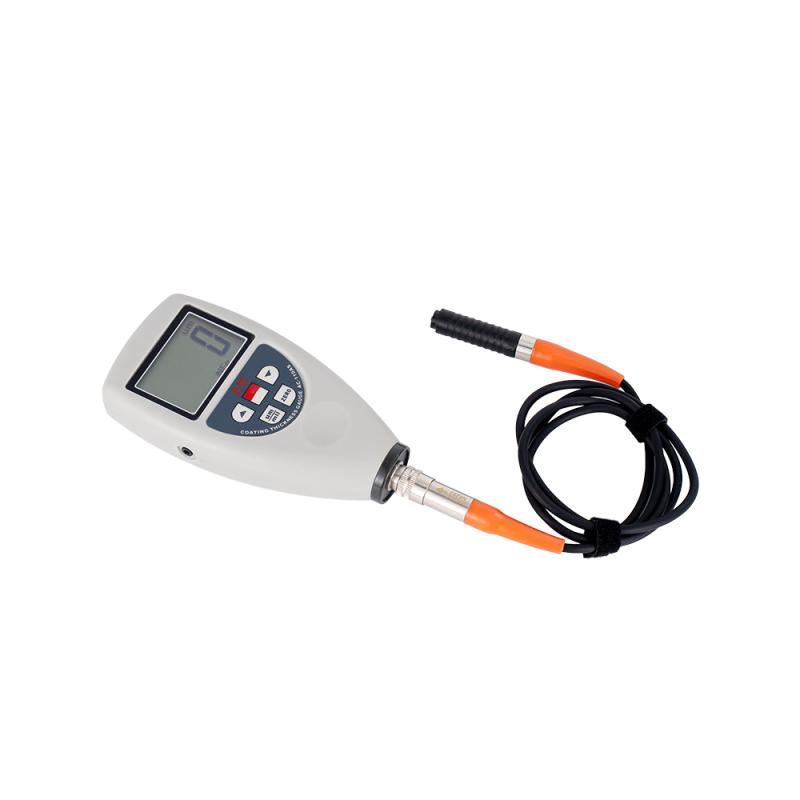

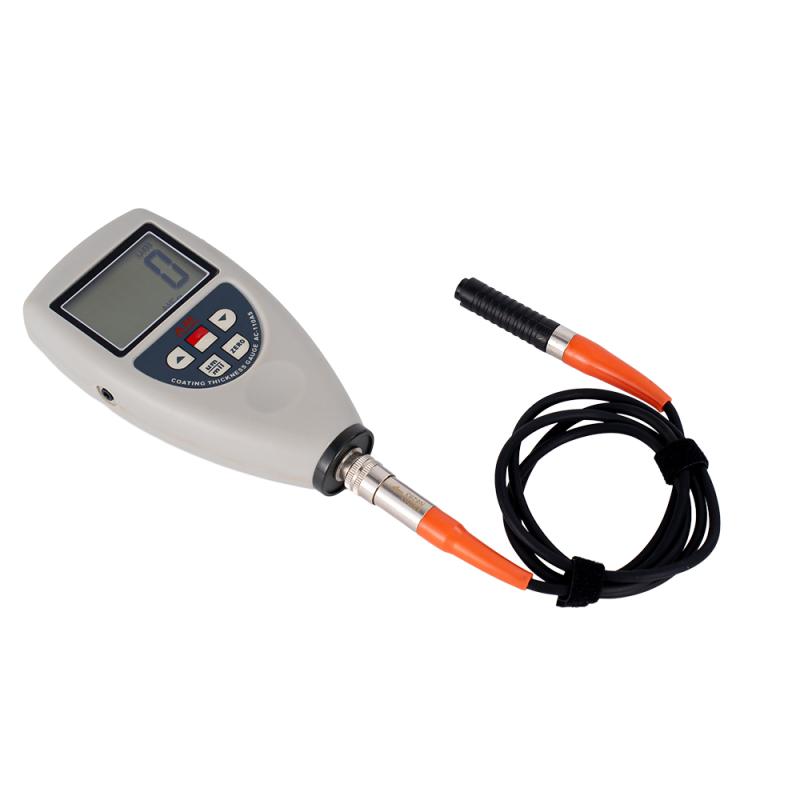

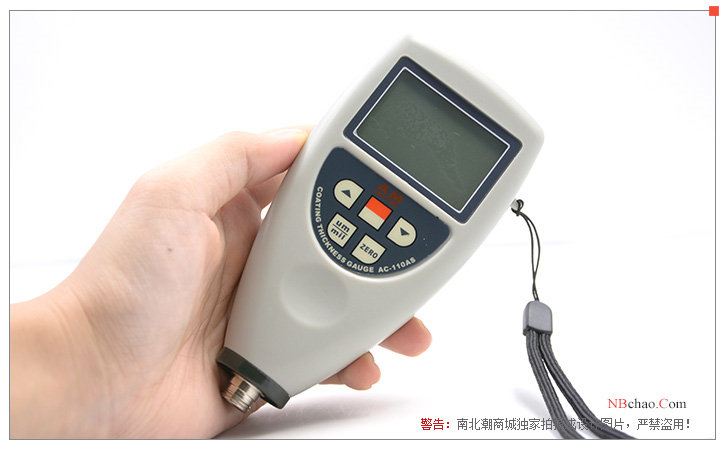

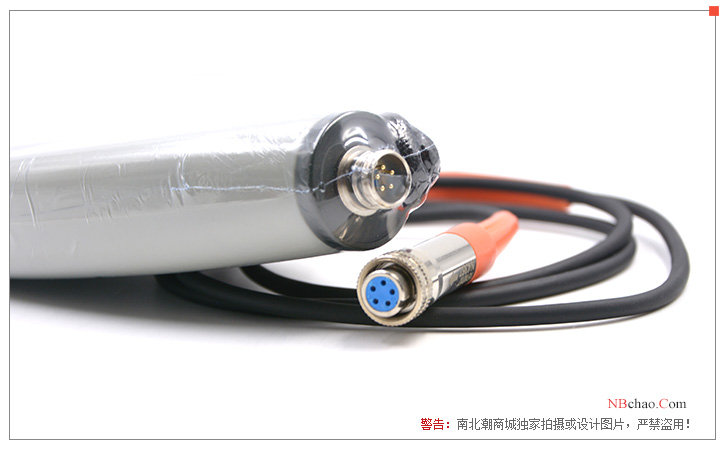

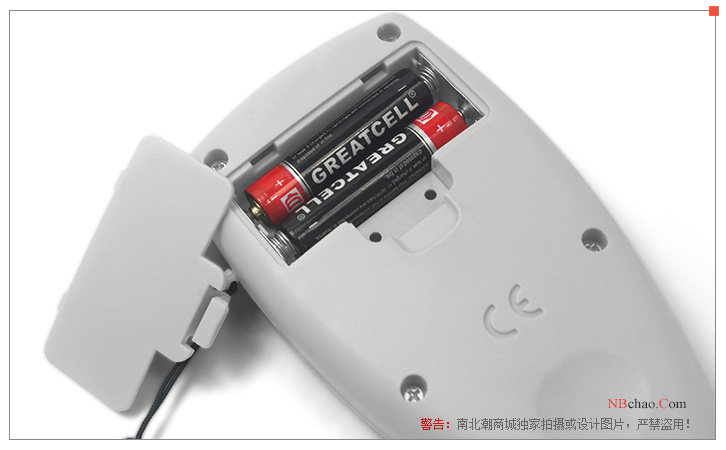

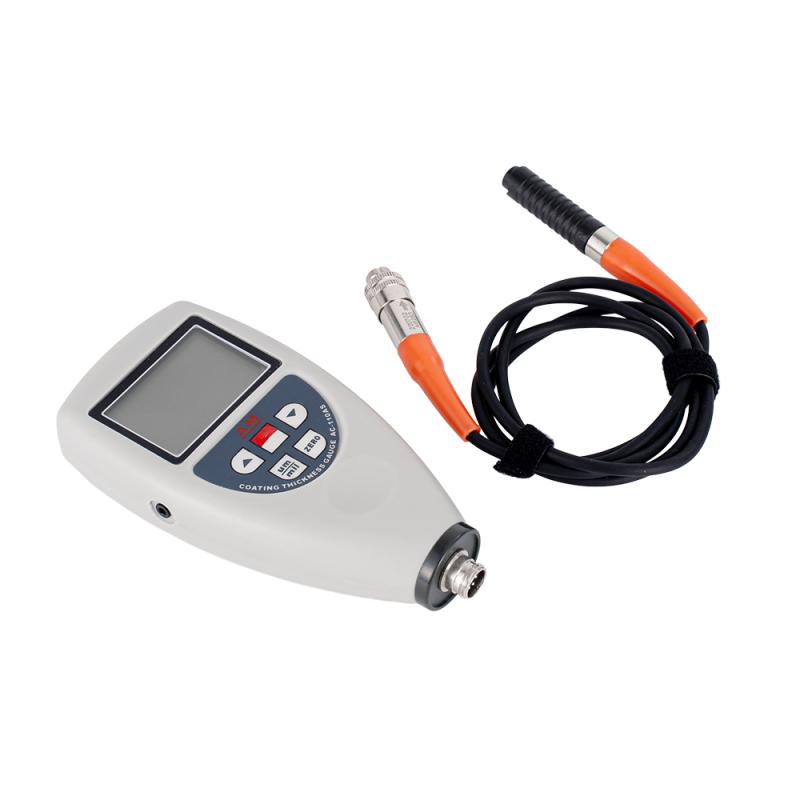

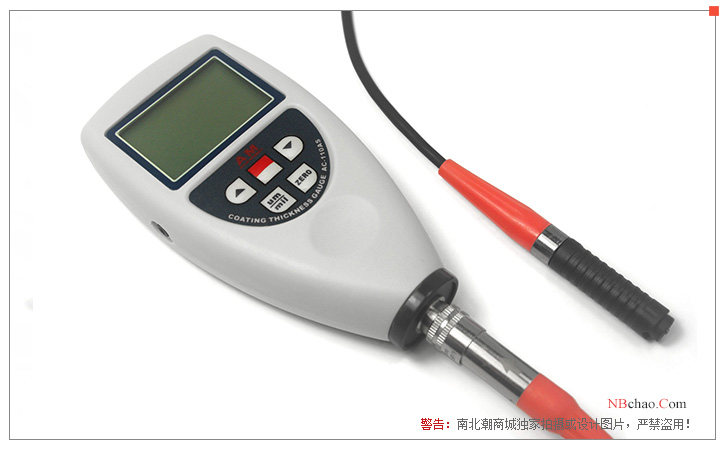

Actual picture of the product

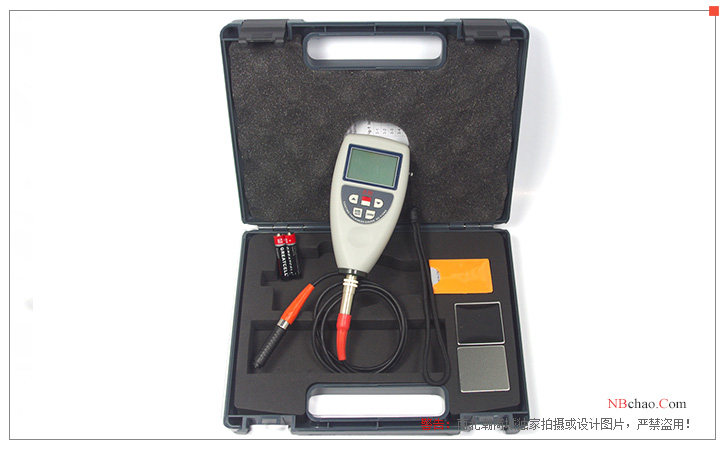

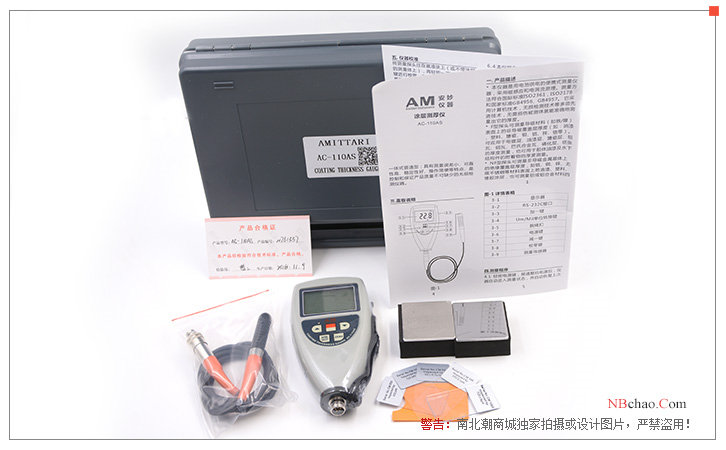

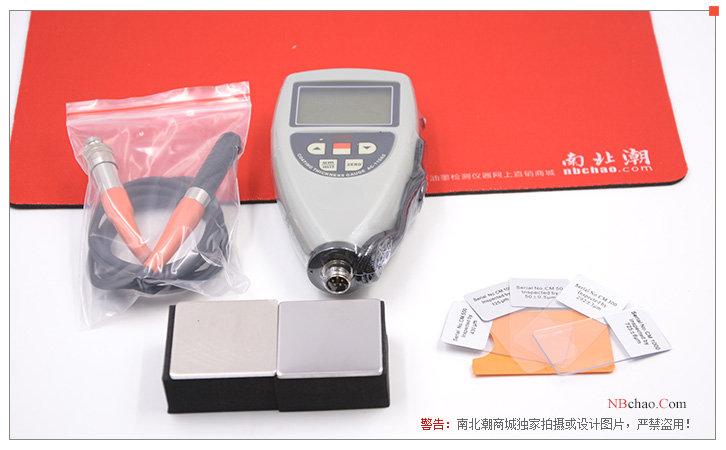

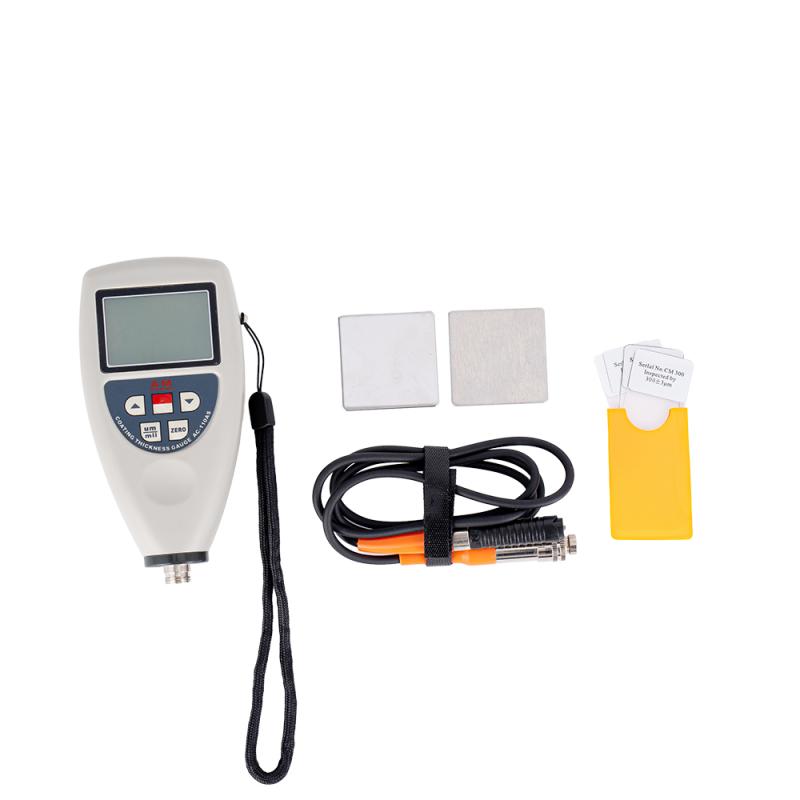

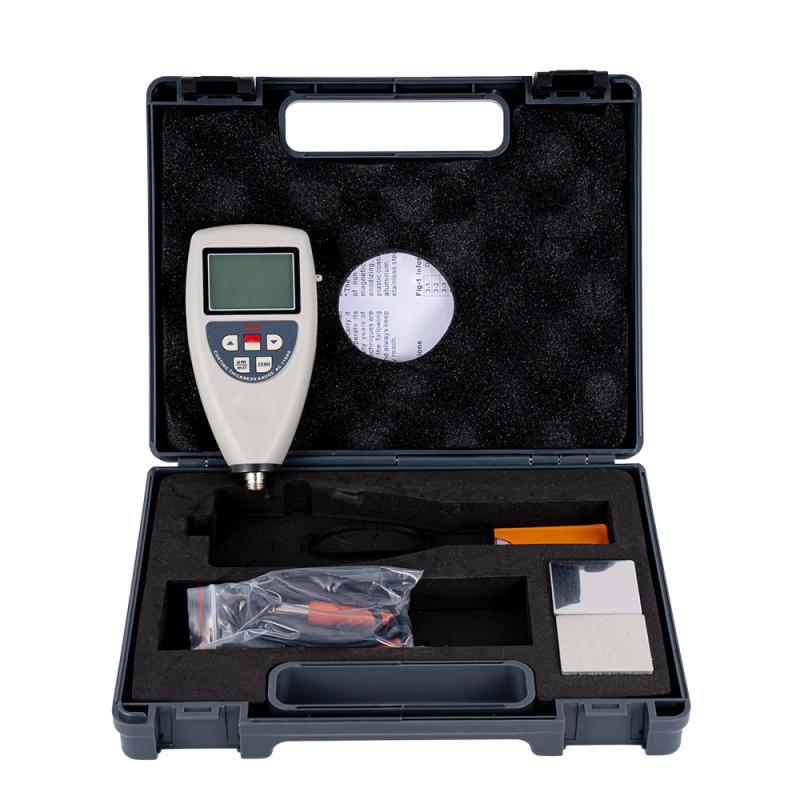

Packing list：Host x1, wrist rope buckle x1, iron base x1, aluminum base x1, measurement Sensors x1, calibrated diaphragm x1 set, portable case x1, manual x1

[Note]Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
