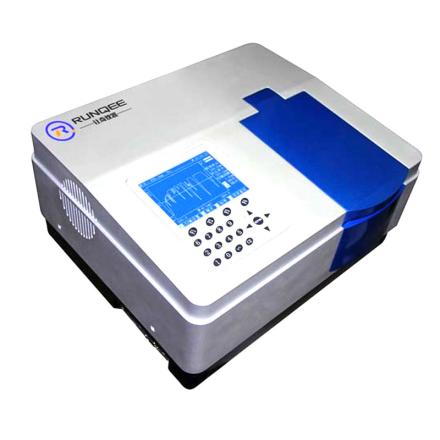

RUNQEE D-8 Double beam of light ratio monitoring UV-Visible Spectrophotometer Specifications
Search
Brand：RUNQEE
Model：D-8
Name：Double beam of light ratio monitoring UV-Visible Spectrophotometer
Specifications
| Optical inspection system | Quasi-double beam of light, CT type optical path; 1200 lines/mm laser holographic Diffraction grating |
| Light spectrum Bandwidth | 4Nm, 1.8nm (adjustable) |
| Wavelength range | 190~1100nm |
| Wavelength Precision | +/- 0.1Nm (D2 656.1 nm ), +/- 0.3nm (full band) |
| Wavelength Repeatability | ±0.15nm |
| Photometric range | 0~200%T、-0.3~3.0A、-9999~9999C |
| Photometric Precision | ±0.002A(0~0.5A)、 ±0.004A(0.5~1A)、 ±0.3%T(0~100%T) |
| Luminosity Repeatability | ±0.1%T(0~100%T)；0.001A(0~0.5A) ；0.002A(0.5~1A) |
| stray light | ≤ 0.05%T |
| Noise level | ±0.001A |
| Stability | ±0.001A/hr@500nm,0A |
| Baseline flatness | ±0.0015A(190~1100nm) |
| monitor | 320 × 240 graphic display LCD screen |
| Power Supply | 80V~ 250V (Power: 100W) |
| Dimensions | 470*400*230mm |
| Weight | 17kg |
| Wavelength resolution | 0.1nm |
| Operation mode | host operation |
Packing list
Host x1, 5 Sample chamber X1, manual x1, certificate x1, warranty card x1
After-sales instructions
Warranty days: 1095 days
[Note] For after-sales services outside the Chinese mainland, if the instrument requires repair, the shipping and possible associated taxes shall be borne by the sender. Generation address of the manual: http://en.nbchao.com/p/14625/Specification.html , which is only used by users who purchase commodities from the NBCHAO.
