Coating Thickness Gauge AMITTARI AC-110BS Coating Thickness Gauge

AC-110BS

Coating Thickness Gauge

Magnetic Induction and eddy Current dual function, can test magnetic and nonmagnetic substrate, thickness range 0~1250μm, error +/- 3%, can store 99 sets of data, in line with ISO2178, ISO2360, GB4956, GB4957 standards.

product description

An Miao AC-110BS Statistical Coating Thickness Gauge (split type) adopts the principle of magnetic induction and eddy current, which can measure all substrates, whether ferrous or non-ferrous; it can store 99 sets of new measurement data values; and With USB data connection and Bluetooth transmission function; the split statistical coating Thickness Gauge provides a variety of probes, making the measurement more mobile.

AC-110BS Statistical Coating Thickness Gauge measurement method complies with international standards ISO2178, ISO2360 and national standards GB4956, GB4957. It adopts computer technology, non-destructive testing technology and other professional technologies to accurately measure the thickness of the measured object without damaging it.

Functional structure

3-1 RS-232C interface; 3-2 Display; 3-3 Add a key; 3-4 Battery cover; 3-5 Delete key; 3-6 Sensor; 3-7 Power key; 3-8 Read key; 3 -9 wrist rope buckle; 3-10 minus one button

Features and advantages

* Wide measuring range and high resolution.

* Automatic memory calibration value, easy to use.

* Small size and light weight.

* Digital backlight display, no parallax.

* The AMITTARI AC-110BS Statistical Coating Thickness Gauge is equipped with an automatic shutdown function to save power.

* The F-type probe can directly measure the thickness of the non-magnetic coating layer (such as: paint, plastic, enamel, copper, aluminum, zinc, chromium, etc.) on the surface of magnetic-conductive materials (such as iron and nickel). It can be applied to the thickness measurement of electroplating layer, paint layer, enamel layer, aluminum tile, copper tile, babbitt tile, phosphating layer, paper, and also can be used for thickness measurement of hull paint and attachments of underwater structural parts.

* Nf type probe can measure the thickness of the insulating covering layer on the non-magnetic metal substrate, such as paint, plastic, rubber coating on the surface of aluminum, copper, zinc, non-magnetic stainless steel, etc., and can also measure the thickness of aluminum or aluminum alloy materials Anodized layer thickness.

* The spring guide sleeve probe with wear-resistant hard metal probe can not only measure on hard or rough surfaces, but also ensure that the probe has constant pressing force and stable sampling value.

* It can store 99 sets of data; realize the statistical function of AC-110BS statistical coating Thickness Gauge by measuring the average value, maximum value and minimum value .

* With the optional RS232C software and cable, it can communicate with PC computer to realize the functions of data collection, processing, analysis and printing.

Pictures

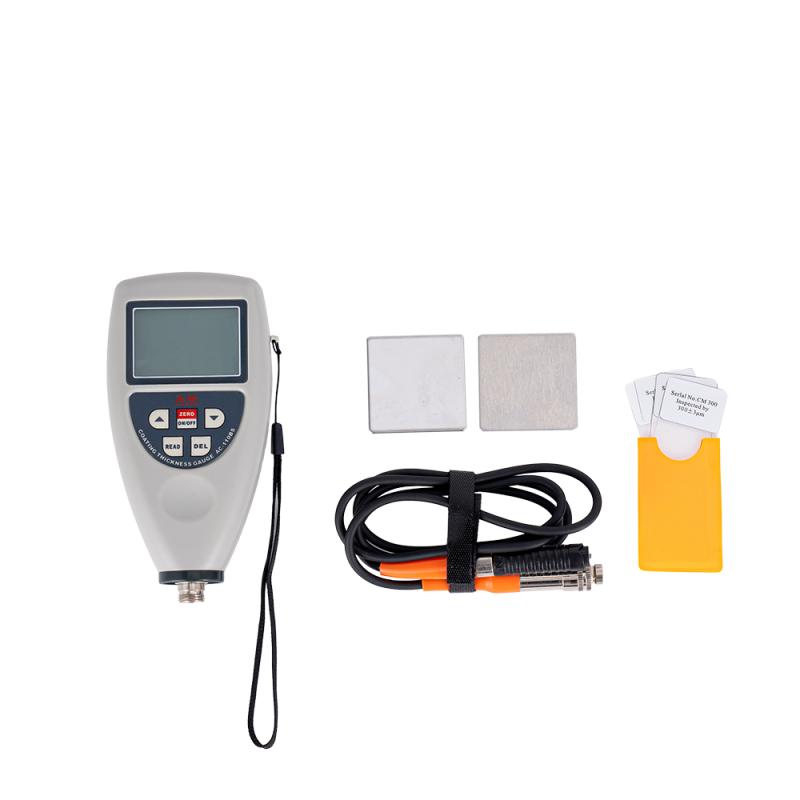

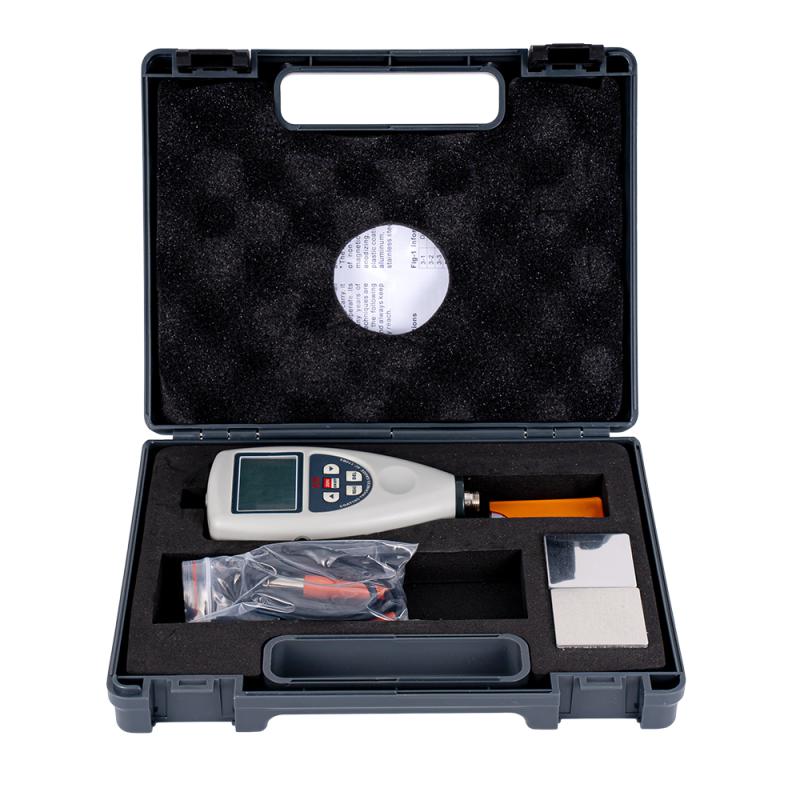

Packing list：Host x1, iron base x1, aluminum base x1, wrist rope buckle x1, calibrated diaphragm x1, portable case x1, manual x1

[Note]Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
