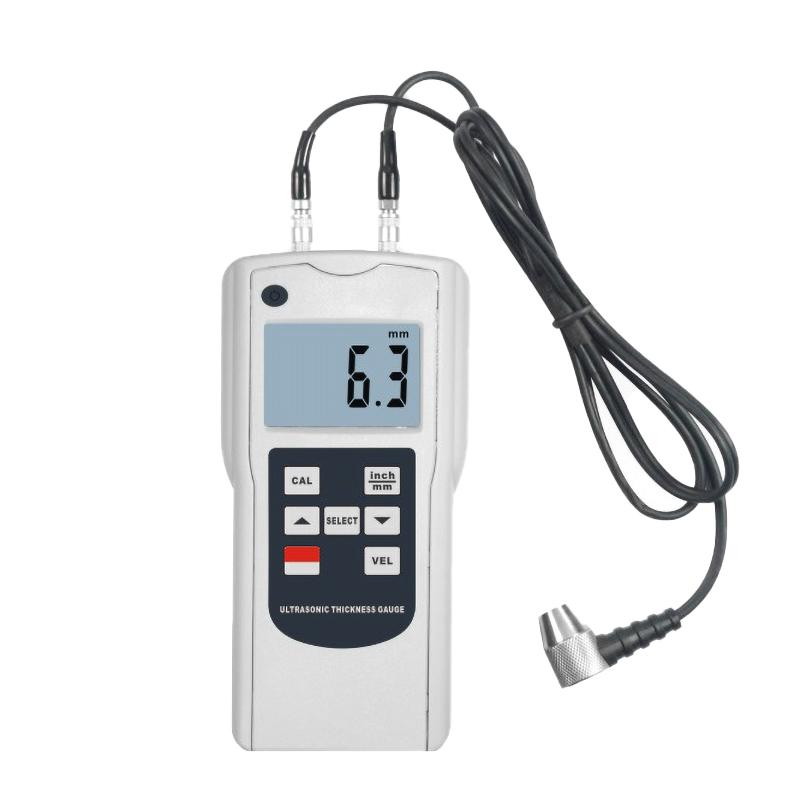

AMITTARI AT-140A Ultrasonic Thickness Gauge 0.1mm resolution Probe diameter φ 8mm, 5HZ

AT-140A

Ultrasonic Thickness Gauge

Measurement range 1~ 200mm, Probe Frequency 5MHz, measurement error +/- (0.5% H + 0.2) mm, Display resolution 0.1mm, is a portable digital display Ultrasonic Thickness Gauge, external probe, with small size, light weight, carrying, simple operation and so on.

AT-140A product description

An Miao AT-140A Ultrasonic Thickness Gauge is a portable digital display ultrasonic Thickness Gauge with an external probe, which has the characteristics of small size, light weight, portability, and simple operation. AT-140A Ultrasonic Thickness Gauge is used to measure the material thickness of various ultrasonic good conductors, the measurement range is 1.0~200mm, and the resolution is 0.1mm.

Features of AT-140A Ultrasonic Thickness Gauge

* Using the optional RS-232C software and cable, it can communicate with the PC computer to realize the functions of data collection, processing, analysis and printing.

* Using computer technology, ultrasonic technology and many other professional technologies, it can accurately measure the thickness of materials.

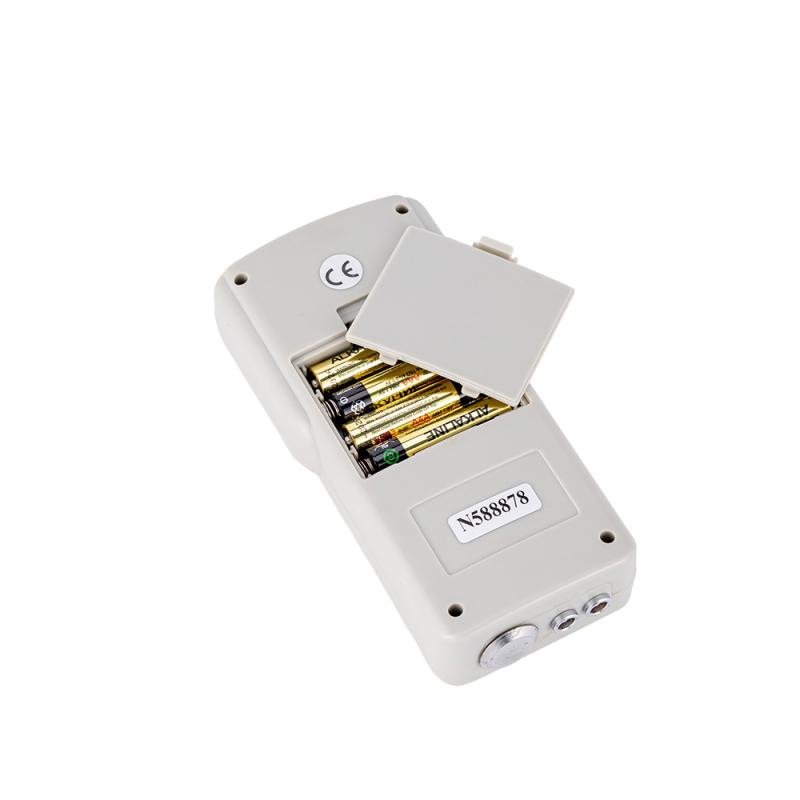

* When the battery Voltage is lower than the specified value, it will be automatically indicated.

* Automatic memory material code and sound velocity value for easy use.

* Digital display, no parallax; with automatic shutdown and manual shutdown functions.

* With coupling status prompt function.

* It has strong transmitting power and high broadband receiving sensitivity. It can adapt to probes of different frequencies, so it can measure severely corroded rough surfaces, paint surfaces, and even some gray cast irons, and its application range covers almost all industries.

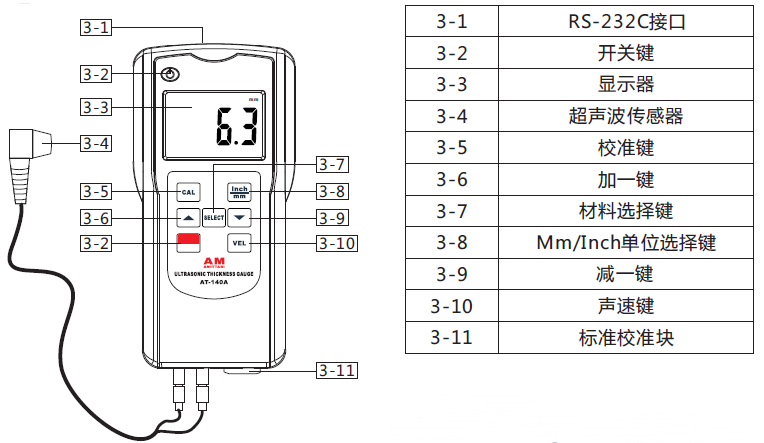

Functional Structure Diagram

Application

AT-140A ultrasonic Thickness Gauge is suitable for boilers, oil storage tanks, pipes, pipes, slabs, forgings, flanges, hulls, decks, Thickness measurement and corrosion measurement of rails, machined parts, etc. The AT-140A ultrasonic Thickness Gauge can be used to measure the thickness of most materials that can transmit ultrasonic waves , such as: metal, ceramics, plastics, nylon, glass, etc.

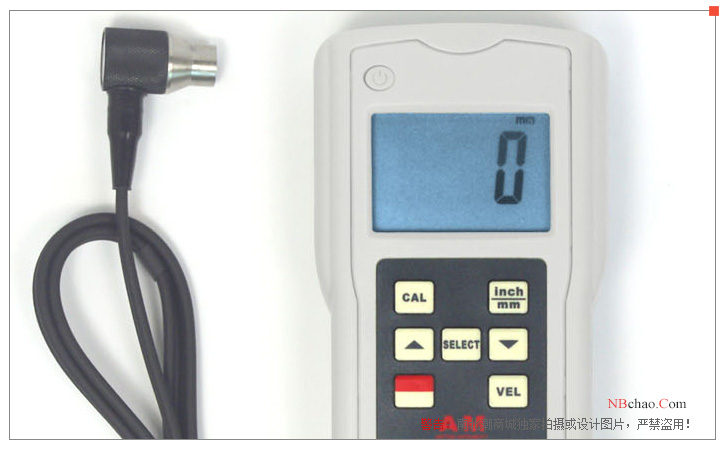

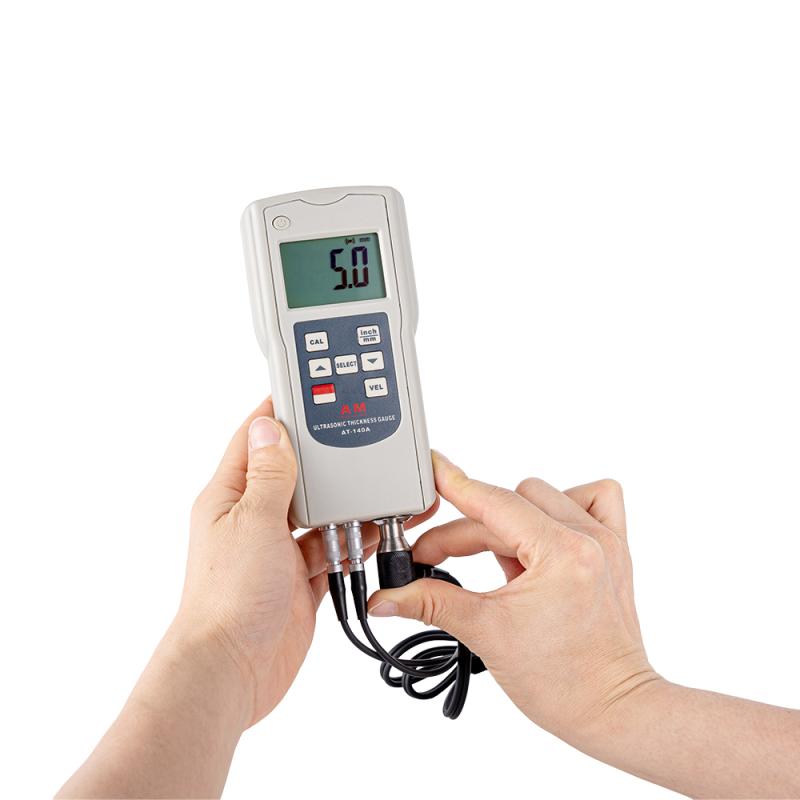

AT-140A display picture

Operation process of AT-140A ultrasonic Thickness Gauge

1) Lightly press the power switch to turn on the power of the whole machine.

2) Press the mm/inch switch lightly to select the appropriate measurement unit.

3) On the premise of confirming that the code of the tested material is selected correctly, couple the ultrasonic sensor to the tested material well. The reading on the display is the measured value.

4) The retention time of the measured value depends on the arrival time of the next measured value. If the measurement stops, the thickness value will be retained until the power is turned off.

5) After the measurement is completed, turn off the power of the whole machine.

shutdown method

At any time, just press the power button once to manually turn off the power of the whole machine; on the other hand, if no button is pressed within 2 minutes, it will automatically shut down to realize the power saving function.

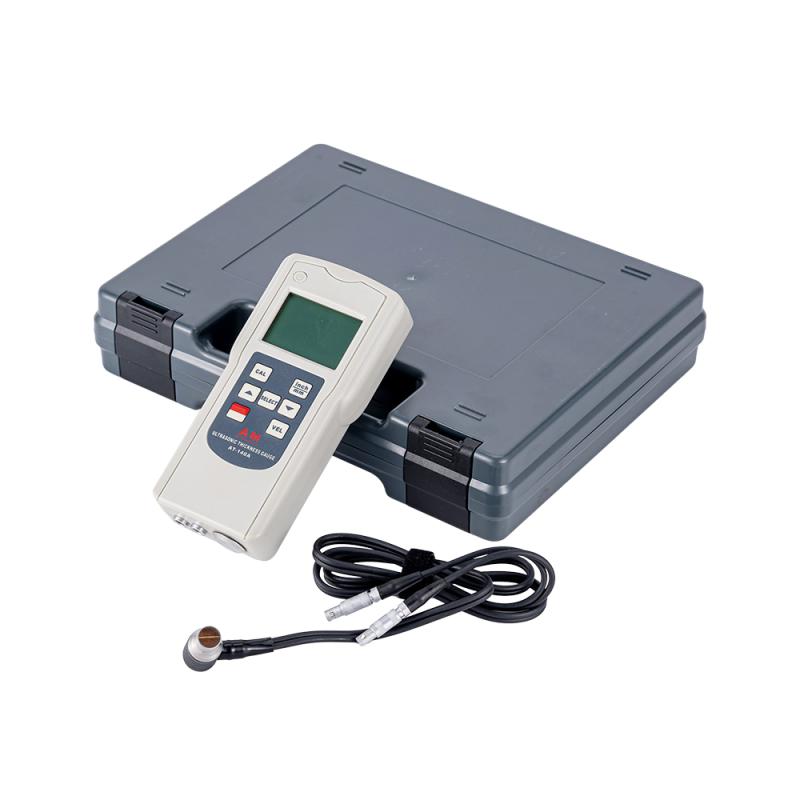

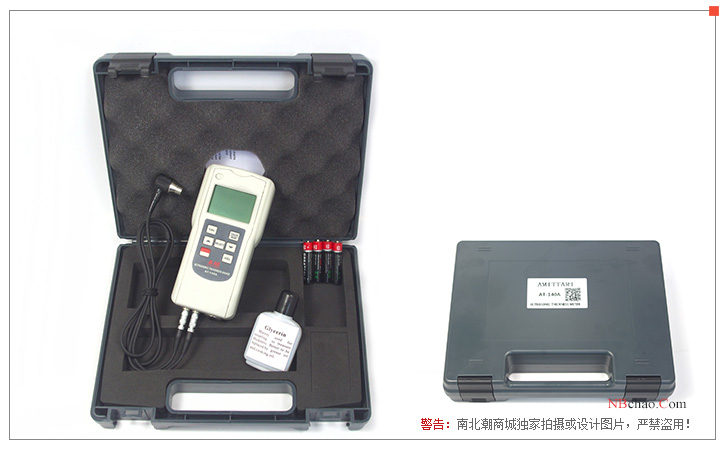

Packing list：Host x1, coupling agent x1, measurement Sensors x1, portable case x1, instruction manual x1

[Note]Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
