AMITTARI AT-140B high-precision Ultrasonic Thickness Gauge resolution 0.01 Measurement range 1-300mm

SE
Supports USB/Bluetooth data output; works with any hard material, aluminum, copper, brass, zinc, polyethylene (PE), polyvinyl chloride (PVC), gray cast iron, steel, cast steel, Glass, ceramic and plastic.
$459.00/set
PromotionLoading...
Coupon
Model：
Certificate
Contact
Details SPEC Con VIDEO OI
Similar products

AMITTARI AT-140B High-Precision Ultrasonic Thickness GaugeSPEC

AMITTARI AT-140B High-Precision Ultrasonic Thickness GaugeDetails

AMITTARI AT-140B High-Precision Ultrasonic Thickness GaugePacking list

SKU
NB001467
Measuring range
1.5~200mm
Probe frequency
5MHz
Probe style
Split probe (UTG-ST)
Probe diameter
F8mm
Probe contact temperature
0~50℃
Measurement error
±(0.5%H+0.2)mm
Display resolution
0.01mm
unit system
mm
Sound speed range
1000~9000m/s
Display
LCD
Operating language
Chinese
Data Interface
USB
Application software
without
Operating Temperature
-5~45℃
Relative Humidity
<85% RH
Power
4 * 1.5V No. 7 battery
power consumption
6V
Host size
140*70*30mm
Weight
130G (without battery)
Application
Any hard material, aluminum, copper, brass, zinc, polyethylene, polyvinyl chloride, gray cast iron, steel, cast steel, Glass, Pottery and porcelain and plastics.
AT-140B
High-Precision Ultrasonic Thickness Gauge
Supports USB/Bluetooth data output; works with any hard material, aluminum, copper, brass, zinc, polyethylene (PE), polyvinyl chloride (PVC), gray cast iron, steel, cast steel, Glass, ceramic and plastic.
AMITTARI AT-140B high-precision Ultrasonic Thickness Gauge resolution 0.01 Measurement range 1-300mm Picture

AT-140B Ultrasonic Thickness Gauge focuses on "high precision", with a measurement accuracy of 0.5%H±0.2mm (H is the thickness of the material to be tested), small and exquisite, and easy to operate. AT-140B has a resolution of 0.01 and can measure material thickness from 1.0-300mm; in addition, AT-140B ultrasonic Thickness Gauge can also measure the sound velocity of materials. It is suitable for thickness measurement of various production equipment, pipeline containers, etc. Materials that AT-140B can measure include but are not limited to any hard material, aluminum, copper, brass, zinc, polyethylene, polyvinyl chloride, gray cast iron, etc. In addition, other good conductors of ultrasonic waves such as steel, cast steel, glass , ceramic and plastic.

AT-140B Function Description

The function of AT-140B Thickness Gauge is composed of 11 functional modules, which are: RS-232C interface, switch key, display, ultrasonic sensor, calibration key, plus one key, material selection key, unit selection key, minus one key, Sound velocity key and calibration standard block.

Functional structure diagram of AT-140B Thickness Gauge

Features of AT-140B Thickness Gauge

1. It has the function of prompting the coupling state.

2. It has automatic shutdown and manual shutdown functions.

3. Automatic memory material code and sound velocity value, easy to use.

4. Use USB data line to output and communicate with PC.

5. Provide Bluetooth data output option [optional].

AT-140B real shot

Front View of AT-140B Ultrasonic Thickness Gauge

Appearance of AT-140B Ultrasonic Thickness Gauge

Button display of AT-140B ultrasonic Thickness Gauge

Back View of AT-140B Ultrasonic Thickness Gauge

AT-140B Ultrasonic Thickness Gauge Probe Calibration Block Details

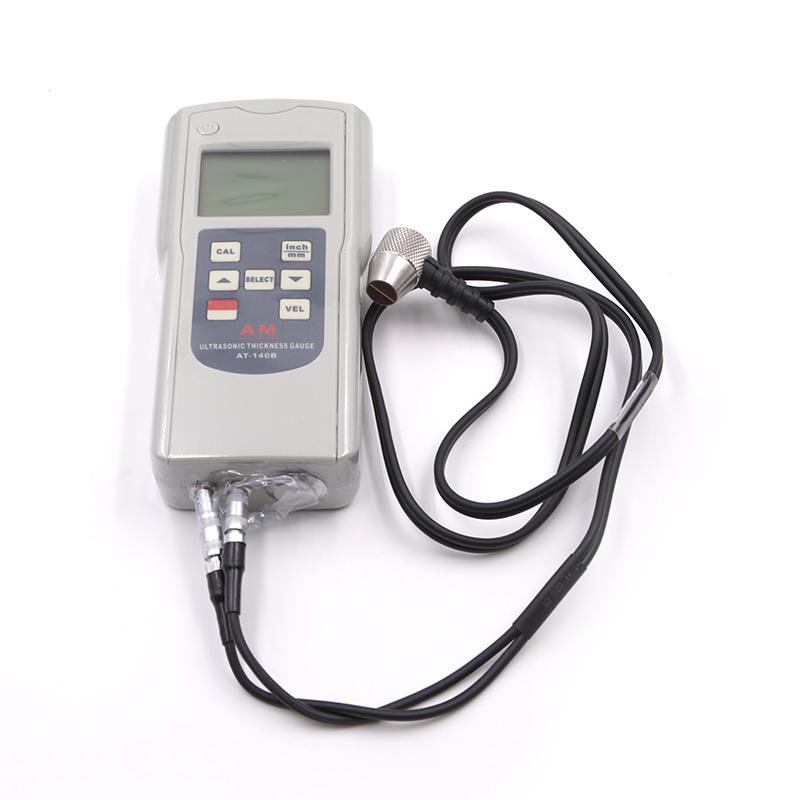

AT-140B Ultrasonic Thickness Gauge Probe Details

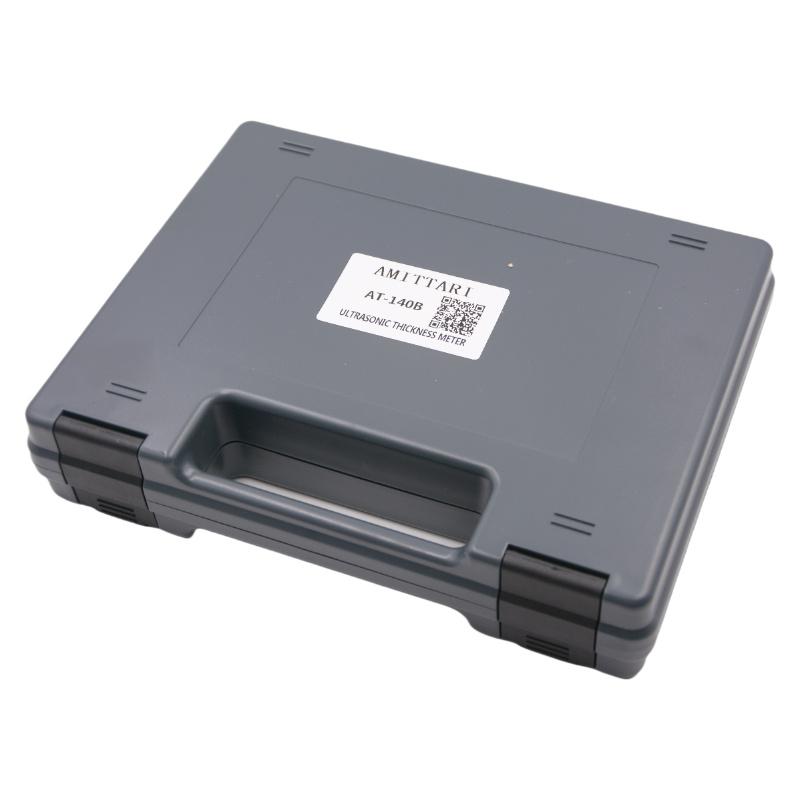

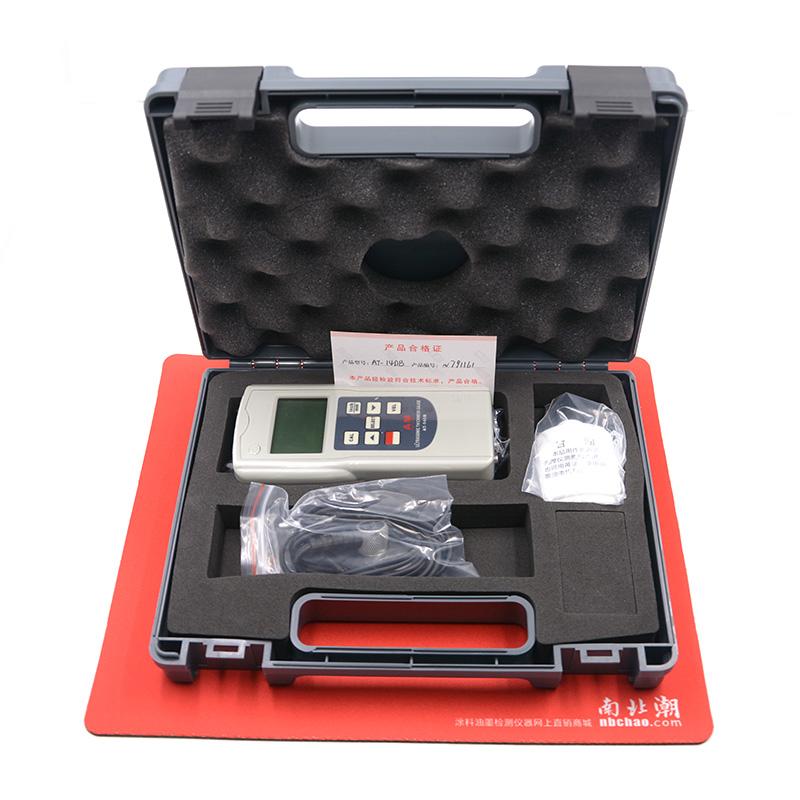

Package accessories diagram of AT-140B ultrasonic Thickness Gauge

AT-140B Ultrasonic Thickness Gauge Figure 1



FAQ
QUltrasonic Thickness Gauge Can Test the total thickness of steel plate + galvanized layer + coating? 3-5mm thick
A AT-140A or AT-140B are OK.
QTo measure, the thickest 10mm wall thickness, the steel plate (wall thickness of the air cylinder) should have a resolution of 0.01mm. Is this suitable?
A suitable
QWhat is the minimum thickness of this AT-140B high-precision Ultrasonic Thickness Gauge?
A The AT-140B high-precision Ultrasonic Thickness Gauge can measure a thickness of 1.5mm.
QCan AT-140H measure the thickness of steel plates? Below 30mm
A Speed of sound, it is recommended that AT-140A and AT-140B can be measured
QAre all Ultrasonic Thickness Gauges available for testing in the ZBN 77001 standard?
A Not necessarily, but this AT-140B Ultrasonic Thickness Gauge can be considered.
QFilm thickness measurement of polyurethane sheet, the maximum range is 110-150mm, the parameters are required to 2 decimal places, desktop, can be connected to a computer, data transmission one-click operation Which one is more suitable?
A For foamed and porous materials, hello, ultrasonic conductors can only be measured, but this material is special, uneven and foamed may not work, and materials with high Density are required, so this material is difficult to measure. It is recommended to use a mechanical thickness gauge.
QHow to calibrate?
A Apply a little oil to the standard 5mm calibrate block. Tap the calibrate key and a flashing character "CAL" appears on the monitor, where the character "CAL" is the abbreviation of English CALIBRATION (calibrate). Couple the ultrasonic Sensors well to the 5mm calibrate block. The monitor will display 5.00 (or 0.197) and "CAL" alternately. After the alternating display is stable, tap the "CAL" key to confirm. Once the calibrate is confirmed, the calibrate result will be automatically stored in the instrument. There is no need to calibrate frequently unless the accuracy of the measurement result is doubted. After calibrating, the material code automatically becomes "d01". To measure non-steel materials, be sure to reset the material code.
QHow to switch measurement units?
A Tap the mm/inch switch to select the appropriate measurement unit.
