General TDSscan 10M-K Pen TDS Meter
SE
TDSscan10M-K
Bante TDSscan10M-K Pen TDS meterSPEC
Bante TDSscan10M-K Pen TDS meterDetails
Bante TDSscan10M-K Pen TDS meterPacking list
- SKU
- NB014677
- Measuring range
- 5~1000ppm
- Accuracy
- ±1%FS
- resolution
- 0.1ppm
- Calibrated point
- 1 point
- Calibrating fluid
- 744.7ppm
- Temperature compensation range
- 0~50 ℃, automatic
- TDS conversion factor
- 0.4~ 1.0 (default 0.5)
- Standardized temperature
- 25℃
- shutdown mode
- Manual or automatic (after 8 minutes of no button operation)
- Sensors Type
- ECSCAN-C1-100K型
- Connector
- 6-Pin
- Environment temperature
- 0~60℃,32~140°F
- Power
- G13A button battery 3 pcs
- Battery life
- About 150 hours
- Dimensions
- 185 * F40mm
- Instrument Weight
- 100g
- Optional accessories

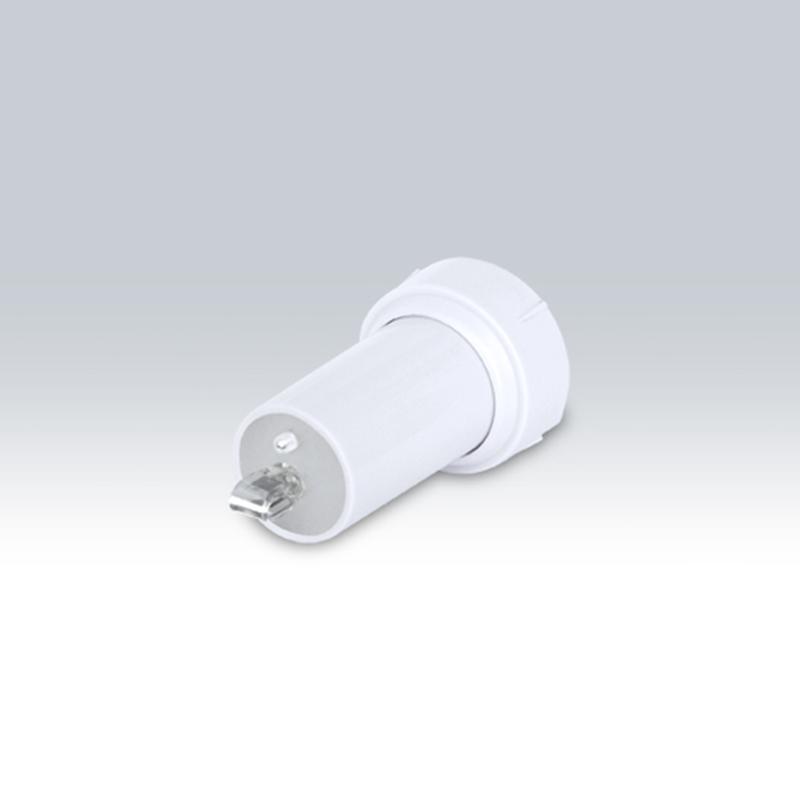

- TDS standard solution, ECscan-C1-100K type Conductivity Detector electrode
- Packaging Dimensions
- 280*230*80mm
- Encasement Weight
- 1.5kg
Introduction

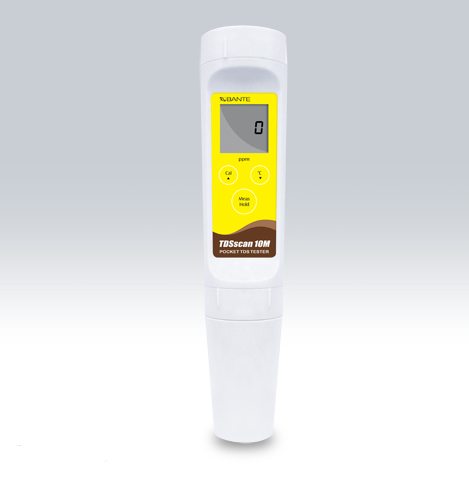

TDSscan10M pen-type TDS meter is a medium-range pen-type TDS meter, which is suitable for measuring the total dissolved solids (TDS) value of conventional liquids such as tap water and drinking water. The measurement accuracy is 1% FS.
Features
• Mid-range pen-style TDS meter with a platinum electrode sensor.
• 1-point key calibration, user-defined calibration solution can be used.
• Adjustable TDS conversion factor to ensure accurate measurement of different water qualities.
• Automatic temperature compensation to ensure accurate measurement over the full range.
• Key data lock, immediately retain the current display value.
• Automatic power off, effectively saving battery power consumption.
• Replaceable electrodes reduce instrument use and maintenance costs.
• Fully waterproof features, to ensure the complete protection of the instrument in harsh environments.
Application
• Water and Wastewater Treatment
• Swimming pool and aquarium
• Agricultural breeding and testing
• Drinking water and other industrial applications
