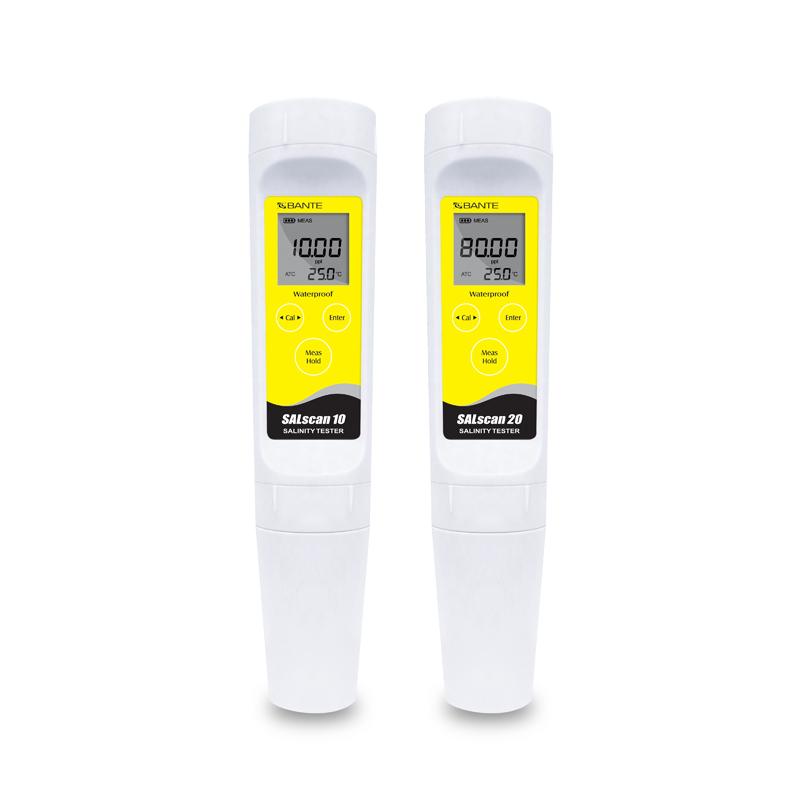

SALscan20 Salinometer Conductivity Detector 0.00~80.00ppt
SE
SALscan20
Bante SALscan20 Pen SalinometerSPEC
Bante SALscan20 Pen SalinometerDetails
Bante SALscan20 Pen SalinometerPacking list
- SKU
- NB014685
- Salinity range
- 0.00~80.00ppt
- Salinity measurement Accuracy
- ±1% F.S
- salinity resolution
- 0.01ppt
- Conductivity Detector Measurement range
- 100.0~2000µS/cm, 20.00, 200.0mS/cm
- Conductivity Detector measurement Accuracy
- ±1% F.S
- Conductivity Detector display resolution
- 0.01, 0.1, 1
- Conductivity Detector calibrated point
- 1 to 3 point
- Conductivity Detector using calibrating fluid
- 1413µS/cm, 12.88mS/cm, 111.8mS/cm
- Temperature Measurement range
- 0~60°C, 32~140°F
- Temperature measurement Accuracy
- ±1°C
- Temperature display
- 0.1°C
- Temperature calibrating point
- 1 point
- Temperature calibrating range
- Measurement ± 10 ℃
- Temperature compensation range
- 0~60°C, 32~140°F
- temperature compensation coefficient
- 2%/°C
- Conductivity Detector cell constant
- K=1
- Standardized temperature
- 25°C
- data lock
- Manual or automatic end point locking
- shutdown mode
- Manual or automatic (after 8 minutes of no button operation)
- One-click reset function
- contain
- Sensors Type
- ECSCAN-C1-10K型
- Power
- 2 AAA batteries
- Battery life
- About 200 hours
- Dimensions
- 185 (L) × 40 (D) mm
- Weight
- 100g
- Optional accessories
- Conductivity Detector standard liquid, ECscan-C1-10K type Conductivity Detector electrode
- Packaging Dimensions
- 280 (L) × 230 (W) × 80 (H) mm
- Encasement Weight
- 1.5kg
Introduction

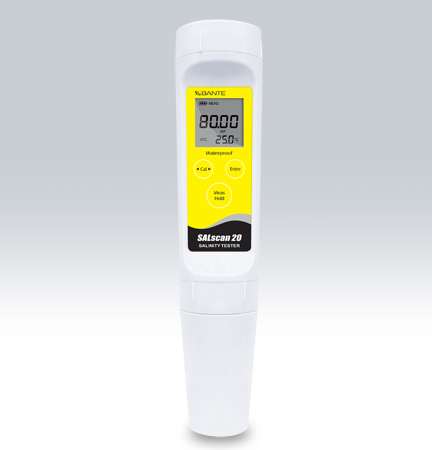

SALscan20 pen type salinity meter High concentration pen type salinity meter, with conductivity measurement function, 1 to 3 point calibration, automatic temperature compensation, built-in system menu can customize 5 functional parameters, the instrument is suitable for measuring high concentration liquid (such as : Salinity and conductivity of seawater), measurement accuracy: 1% FS.
Features
• High-concentration pen-type salinity meter, including conductivity measurement function.
• Platinum electrode sensor, providing fast and stable measurement results.
• 1 to 3 point key calibration, user-defined calibration solution can be used.
• Automatic temperature compensation to provide accurate measurements over the full range.
• Automatic end point lock retains stable readings for viewing or recording.
• Low battery warning icon to indicate remaining battery power.
• Automatic power off, effectively saving battery power consumption.
• Built-in system menu, which can customize the number of calibration points, temperature unit, automatic or manual data lock, timing or manual shutdown and other 5 functional parameters.
• One key reset (Reset), automatically restore the meter to the factory default settings.
• Replaceable electrodes reduce instrument maintenance and use costs.
• Full waterproof performance to ensure the complete protection of the instrument in harsh environments.
Application
• Seafood testing
• Inspection of salted food
• Aquarium
• Marine life rearing
• Other industrial applications
