Specifications

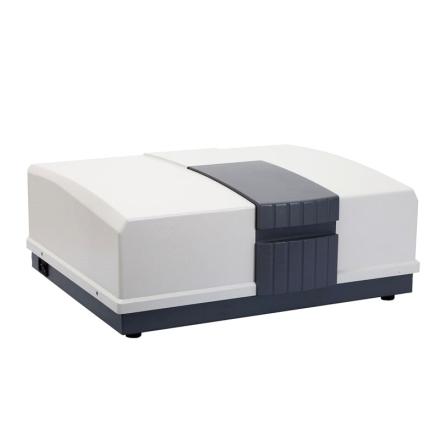

| Optical inspection system | G-10 |
| Light spectrum Bandwidth | Dual beam of light, continuously adjustable 0.1-5 nm, can customize multi-level Light spectrum Bandwidth (0.1, 0.2, 0.5, 1.0, 2.0, 3.0, 4.0, 5.0nm) |
| Wavelength range | 190~1100nm |
| Wavelength Repeatability | ≤0.1nm |
| Photometric range | -4.0~4.0A |
| stray light | ±0.0008 Abs |
| Noise level | ±0.0003 Abs |
| Baseline flatness | ≤ +/- 0.0004 Abs/h (at 500nm, after preheating for 2h) |
| Dimensions | 600*505*240mm |
| Wavelength MPE | +/- 0.1 nm (656.1 nm D2 ）, +/- 0.3nm (Full Wavelength range) |
| Transmittance Precision | ±0.2%T |
| Transmittance Repeatability | ≤0.1%T |
| Baseline drift | ±0.0003 Abs |
Packing list
host x1, manual x1, certificate x1, warranty card x1
After-sales instructions
Warranty days: 1095 days
[Note] For after-sales services outside the Chinese mainland, if the instrument requires repair, the shipping and possible associated taxes shall be borne by the sender. Generation address of the manual: http://en.nbchao.com/p/14725/Specification.html , which is only used by users who purchase commodities from the NBCHAO.
