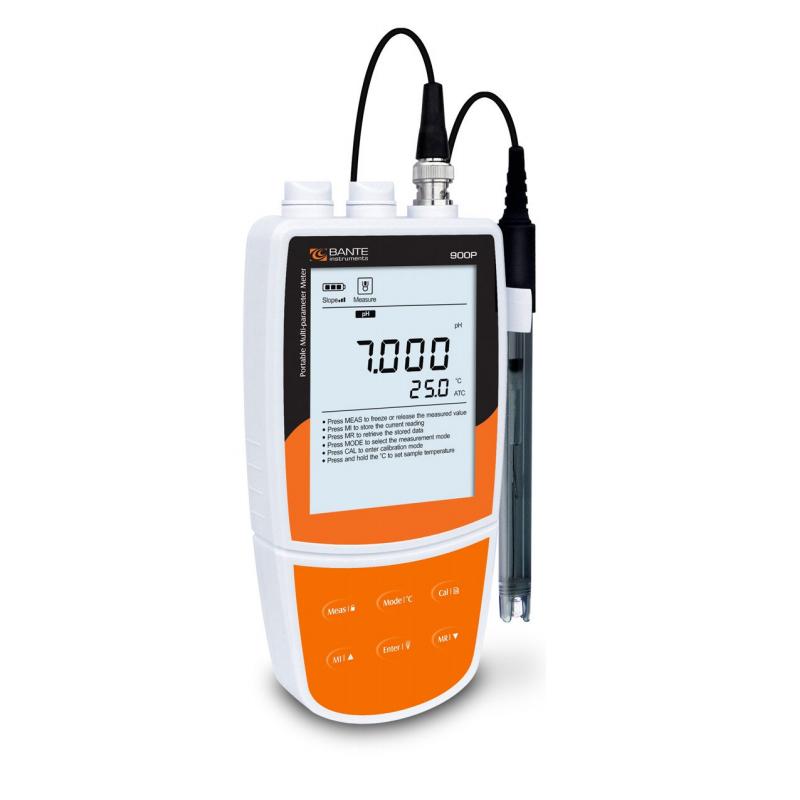

Bante904P-CN Portable multiparameter Water Quality Meter
SE
Bante904P-CN
Bante Bante904P-CN Portable Multi-Parameter Water Quality MeterSPEC
Bante Bante904P-CN Portable Multi-Parameter Water Quality MeterDetails

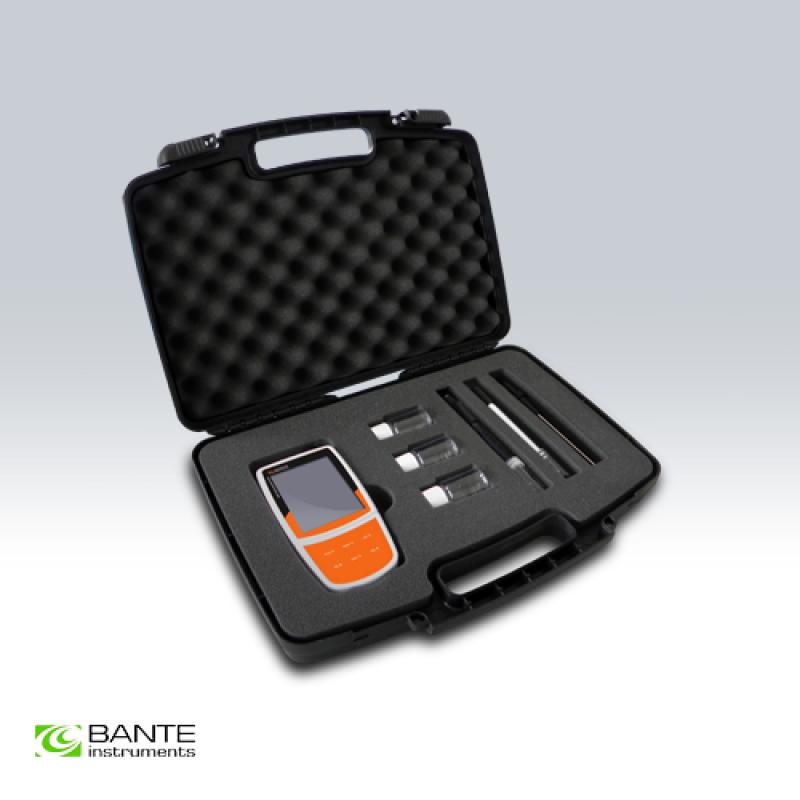

Bante Bante904P-CN Portable Multi-Parameter Water Quality MeterPacking list
- SKU
- NB014747
- Conductivity range
- 0~20mS/cm (max. 200mS/cm)
- Measurement Accuracy of conductivity
- ±0.5%FS
- EC resolution
- 0.001, 0.01, 0.1, 1
- Conductivity calibrated point
- 1 to 5 point
- Conductivity calibrating fluid
- 10µS/cm, 84µS/cm, 1413µS/cm, 12.88mS/cm, 111.8mS/cm
- EC Temperature Compensation Range
- 0~100℃, 32~212°F
- EC Temperature Compensation Mode
- Manual or automatic
- EC Temperature Compensation Coefficient
- 0.0~10.0%/℃
- EC Temperature Compensation Mode mode
- Linear or pure water
- Conductivity Detector cell constant
- K = 0.1, 1, 10, custom
- Standardized temperature
- 20 ℃, 25 ℃, optional
- TDS range
- 0~10ppt (max 200ppt)
- TDS Measurement Accuracy
- ±1%FS
- TDS conversion factor
- 0.1~ 1.0 (default 0.5)
- Salinity range
- 0~10ppt (max 80ppt)
- Measurement Accuracy of salinity
- ±1%FS
- Measurement mode of salinity
- Utility salinity (psu) or seawater salinity (ppt)
- Resistivity range
- 0~10MΩ (up to 20MΩ)
- Measurement Accuracy of resistivity
- ±1%FS
- Resistivity resolution
- 0.01, 0.1, 1
- DO range
- 0.00~20.00mg/L
- DO Measurement Accuracy
- ±0.2mg/L
- DOS resolution
- 0.1, 0.01 mg/L, optional
- DO temperature compensation range
- 0~50℃
- DO temperature compensation
- automatic
- Pressure compensation range
- 60.0~112.5kPa, 450~850mmHg
- Salinity compensation range
- 0~50g/L
- DO% Measurement range
- 0.0~200.0%
- DO% Measurement Accuracy
- ±2.0%
- DO% resolution
- 0.1, 1%
- Measurement range
- 0~105℃, 32~221℉
- Measurement Accuracy
- ±0.5℃
- Temperature Resolution
- 0.1℃
- Temperature calibrating point
- 1 point
- Temperature unit
- ℃, ° F, optional
- Data stability condition
- Fast or high-precision
- Calibrated reminder
- 1 to 31 days or closed
- shutdown mode
- Manual or automatic (10, 20, 30 minutes after no button operation)
- Data storage
- 500 sets
- Communication interface
- USB
- Connector
- 6-Pin MINI Connector
- Power Supply
- 3 AA batteries
- Battery life
- Approximately 150 hours (when the LCD backlight is turned off)
- Dimension
- 170*85*30mm
- instrument Weight
- 300g
- Optional Accessories
- TP-10K temperature probe, dissolved Oxygen electrode film cap, dissolved Oxygen electrode filling solution, Conductivity Detector standard solution, CON-0.1 type Conductivity Detector electrode, CON-1 type Conductivity Detector electrode, CON-10 type Conductivity Detector electrode, DO100 type dissolved Oxygen electrode,
- Packaging Dimensions
- 430*310*100mm
- Encasement Weight
- 2kg
Bante904P Portable Conductivity/Dissolved Oxygen Meter
Multi-parameter portable conductivity meter, including 5 measurement functions, the meter is suitable for measuring liquid conductivity, total dissolved solids (TDS), salinity, resistivity, dissolved oxygen concentration and saturation.
Conductivity/TDS/salinity/resistivity mode features
• Multi-parameter Water Quality Analyzer with large backlit LCD display.
• 1 to 5 point key calibration, automatic identification of conductivity standard solution.
• Selectable cell constant (K=0.1/1/10), TDS conversion factor, normalized temperature (20 or 25°C), linear and pure water temperature compensation, seawater and practical salinity measurement modes.
conductivity meter
Dissolved Oxygen Mode Features
• 1 or 2 point pushbutton calibration using air saturated water or zero oxygen liquid.
• Compensation for salinity and atmospheric pressure to improve the measurement accuracy of the instrument.
common features
• Automatic temperature compensation to ensure accurate measurement over the full range.
• Automatic Calibration Reminder to remind users to calibrate the meter on a regular basis.
• Automatic end point locking, retaining stable measurement values for easy viewing and recording.
• Automatic electrode diagnosis, you can check the electrode slope value (K).
conductivity meter
• The system menu can customize 13 functional parameters such as the number of calibration points, stability standard, data lock mode, and automatic shutdown.
• One key reset (Reset) automatically restores the instrument to the factory default settings.
• Expanded memory can store up to 500 sets of measurement data.
• The built-in clock automatically marks the date and time of stored data to comply with GLP regulations.
• USB communication interface to send stored data to PC.
• Multi-mode power supply scheme (battery, power adapter, computer's USB port) ensures the smooth application of the instrument.
