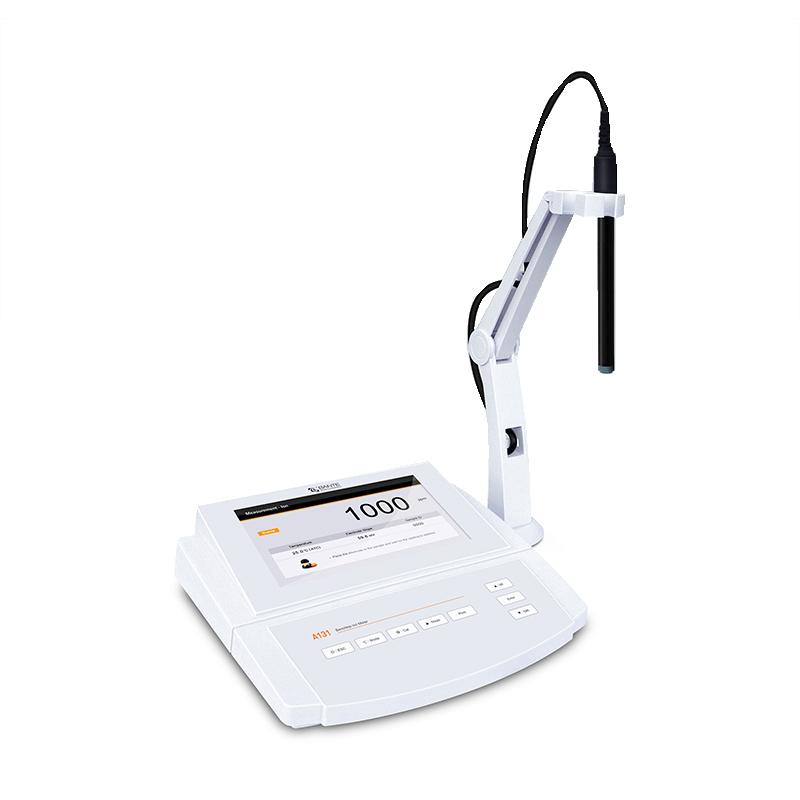

BANTE A131-F Laboratory Ion Meter Fluorine ion
SE
A131-F
Bante A131-F Laboratory Ion MeterSPEC
Bante A131-F Laboratory Ion MeterDetails
Bante A131-F Laboratory Ion MeterPacking list
- SKU
- NB014769
- Ion Measurement Range
- 1 × 10-6 M~ saturation
- Ion measurement Accuracy
- ±0.5% F.S
- Display resolution
- 0.001, 0.01, 0.1, 1
- Ion calibrated point
- 2 to 5 point
- Ion measurement mode
- Direct reading method, known addition method, known reduction method, sample addition method, sample reduction method
- mV range
- -2000~2000mV
- mV measurement Accuracy
- ±0.2mV
- mV Display resolution
- 0.1mV
- mV calibrated point
- 1 point (only for R.mV mode)
- mV measurement mode
- Relative or absolute mV
- Temperature Measurement Range
- 0~105℃, 32~221℉
- Temperature measurement Accuracy
- ±0.5℃
- Display resolution
- 0.1℃
- Temperature calibrating point
- 1 point
- Temperature unit
- ℃/℉
- Temperature compensation range
- 0~100℃, 32~212℉
- Temperature compensation method
- Manual/Automatic
- data lock
- Manual or automatic end point locking
- Data stability condition
- Standard or high-precision
- Calibrated reminder
- 1 to 31 days or closed
- Interval reading
- 10, 30, 60 seconds, 10, 30 minutes or off
- One-click reset function
- contain
- data storage
- 1000 sets
- Interface
- USB
- Connector
- BNC
- Display
- 7-Inch TFT LCD
- Power supply type
- DC12V power adapter
- Dimensions
- 240*200*80*mm
- Instrument Weight
- 1.7kg
- Optional
- Ionic standard solution, ionic strength regulator, TP-10K temperature probe
- Packaging Dimensions
- 300*240*170mm
- Encasement Weight
- 2kg
A131 Precision LABOratory Ion Meter
Precision laboratory Ion Meter, 7-inch TFT display screen, 5 ion measurement methods are optional, the system menu contains 13 optional parameters, the instrument is suitable for measuring the ion concentration of liquid and water hardness value.
Ion mode features:
• Precision laboratory Ion Meter with 7-inch TFT display.

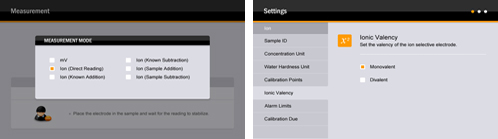

• Optional ion measurement methods, including direct reading method, known addition method, known subtraction method, sample addition method and sample subtraction method.
• Optional concentration units, including ppm, mg/L, mol/L, mmol/L.
• 2 to 5-point key calibration, including 8 optional concentration calibration points.
• Automatic identification of ion-selective electrodes without specifying ion types.
• Electrode management can store the slope of 3 ion electrodes and recall the calibration data of each electrode.
• Calibration report provides calibration standards and electrode slope details.
laboratory Ion Meter
Water hardness mode features:
• 2 to 5 point key calibration from low to high concentration.
• Optional water hardness units, including German degrees, British degrees, French degrees, mmol/L and mg/L.
General features:
• Calibration due reminder to remind users to calibrate the meter regularly.
• Automatic end point locking, retaining stable measurement values for easy viewing and recording.
• Interval reading mode, regularly send measured values to PC or printer.
• Password protection to prevent unauthorized calibration and settings.
• Expanded memory can store up to 1000 sets of data.
• USB communication interface is easy to connect external devices.
• One key reset (Reset) automatically restores the instrument to the factory default settings.
Series
| model | parameter | describe |
| A131-NH4 | Ammonium | Measuring range: 5×10-6 ~1M, Accuracy: ±0.5% FS |
| A131-Br | bromine | Measuring range: 5×10-6 ~1M, Accuracy: ±0.5% FS |
| A131-Ca | calcium | Measuring range: 5×10-7 ~1M, Accuracy: ±1% FS |
| A131-CL | chlorine | Measuring range: 5×10-6 ~1M, Accuracy: ±0.5% FS |
| A131-Cn | Cyanide | Measuring range: 5×10-6 ~0.01M, Accuracy: ±1% FS |
| A131-F | fluorine | Measuring range: 1×10-6 M~saturation, accuracy: ±0.5% FS |
| A131-NO3 | Nitrate | Measuring range: 7×10-6 ~1M, Accuracy: ±0.5% FS |
| A131-Ag | silver | Measuring range: 1×10-7 ~1M, Accuracy: ±1% FS |
| A131-Na | sodium | Measuring range: 1×10-5 ~1M, Accuracy: ±0.5% FS |
| A131-Cd | cadmium | Measuring range: 1×10-6 ~0.1M, Accuracy: ±1% FS |
| A131-Cu | copper | Measuring range: 1×10-8 ~0.1M, Accuracy: ±1% FS |
| A131-I | iodine | Measuring range: 5×10-8 ~1M, Accuracy: ±1% FS |
| A131-Pb | lead | Measuring range: 1×10-8 ~0.1M, Accuracy: ±1% FS |
| A131-K | Potassium | Measuring range: 1×10-6 ~1M, Accuracy: ±1% FS |
| A131-S | sulfur | Measuring range: 1×10-7 ~1M, Accuracy: ±1% FS |
| A131-NH3 | ammonia | Measuring range: 1×10-6 ~1M, Accuracy: ±1% FS |
| A131-WH | water hardness | Measuring range: 0.05~200mmol/L, accuracy: ±1% FS |
- 1SN/T 5051-2018《Determination of fluorinion, chloridion, sulfate ion and nitrate ion in water soluble phosphate—lon chromatography》
- 2JB/T 6858-2018《Test method of pH meters and Ion Meters》
- 3JB/T 6245-2017《Laboratory Ion Meters》
- 4HJ 955-2018《Ambient air.Determination of fluoride.Filter sampling / fluoride ion-selective electrode method》
- 5JB/T 6858-1993《Test methods for pH Meters and Ion Meters》
- 6GB/T 26811-2011《Ion selective electrodes》
