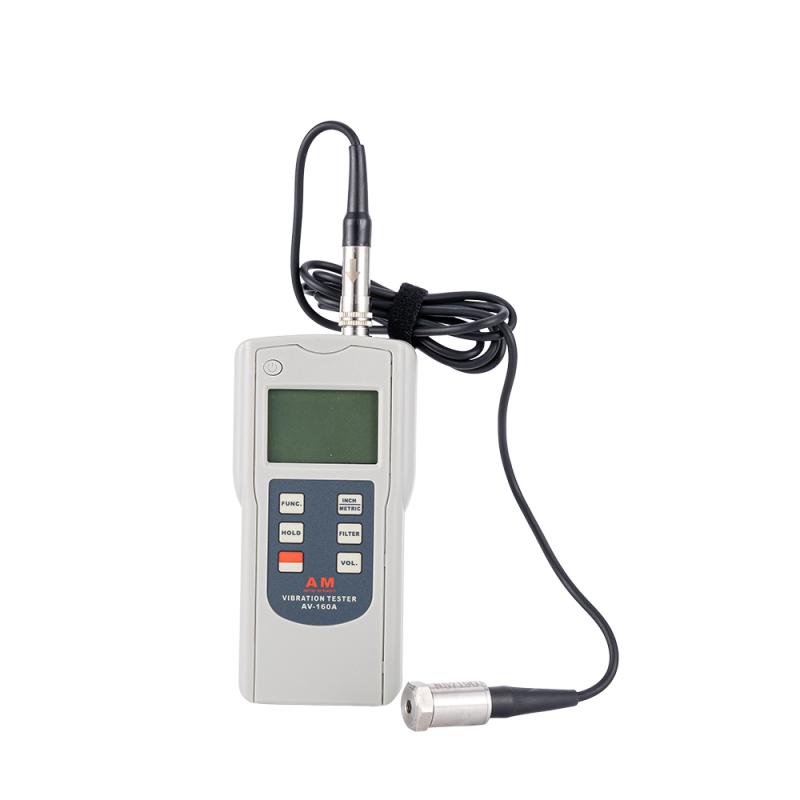

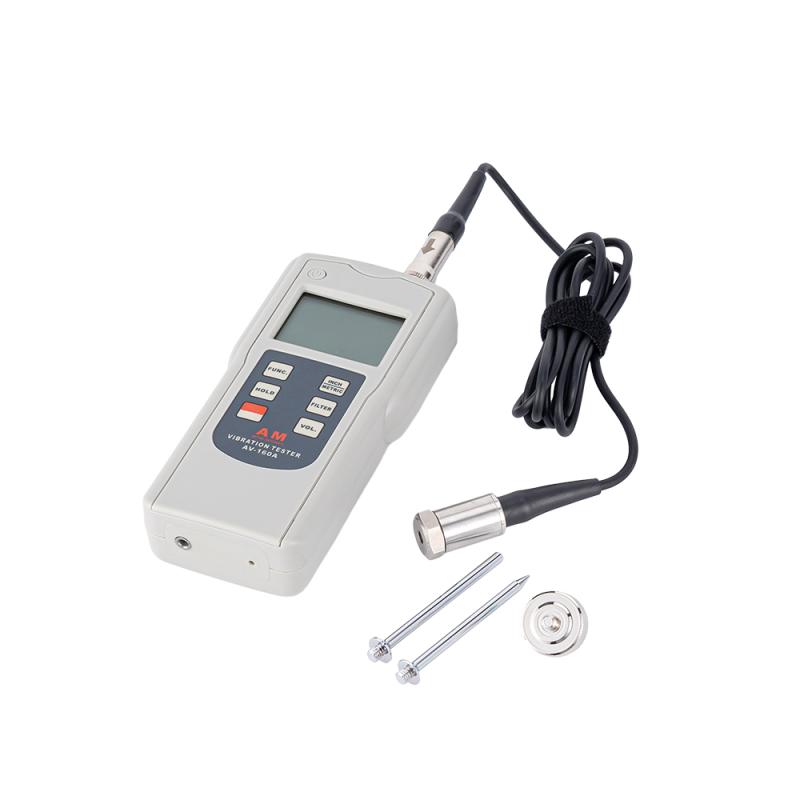

Vibrometer AMITTARI AV-160A detects imbalances and deviations in moving machinery
SE
AV-160A
-
3D three-axis vibration instrument AMITTARI AV-160D simultaneous measurement of three-axis or single-axis vibration parameters$ 658.00SE -
Vibrator AMITTARI AV-160B displays three parameters of "Displacement", "Speed" and "Acceleration"$ 459.00SE -
LANDTEK VM6360 Vibration Meter Frequency up to 10Hz~ 10KHz$ 428.00SE
AMITTARI AV-160A VibratorSPEC
AMITTARI AV-160A VibratorDetails

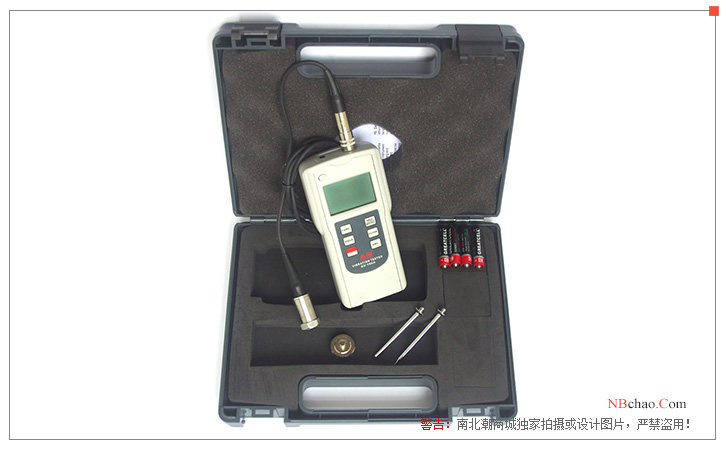

AMITTARI AV-160A VibratorPacking list
- SKU
- NB001479
- display
- 4-Position 18mm LCD display
- Sensors Type
- Piezoelectric Vibration Sensors
- Accuracy
- ± (5% n + 2) words
- Displacement Measurement range
- 0.001~4.000mm
- Speed Measurement range
- 0.1~400mm/s
- Acceleration Measurement range
- 0.1~400.0m/s²
- Displacement frequency range
- 10Hz~1KHz
- Speed frequency range
- 10Hz~1KHz
- Acceleration frequency range
- 10Hz~10KHz
- Operating Temperature
- 0~50℃
- Relative Humidity
- <90% RH
- output
- 2.0V AC load resistance 10k
- Dimensions
- 140*70*30mm
- Power
- 4X1.5vAAA (UM-4) AA battery
- Weight
- About 130g (without battery)
- Optional accessories
- Headphones, USB data cable, RS-232C cable and software
Overview of AV-160A Vibration Meter
An Miao AV-160A Vibration Meter is used to measure periodic motion to detect the imbalance and deviation of moving machinery. AV-160A Vibration Meter is specially designed for on-site measurement of various mechanical vibrations in order to provide data for quality control, running time and prior equipment maintenance. The AV-160A Vibration Meter uses a high-performance accelerometer to achieve accurate and reproducible measurements.
Features
* With bearing condition measurement function.
* AV-160A Vibration Meter has AC signal output, which is convenient for auscultation and recording.
* Wide frequency range, in the acceleration mode, the frequency can reach 10-10KHz.
* Use piezoelectric acceleration sensor to convert into vibration signal.
* AV-160A Vibration Meter can be equipped with earphones to be used as a stethoscope.
* Use USB data line output to communicate with PC.
* Provide Bluetooth data output option.
* Conforms to international standard ISO2954 for periodic motion measurement to detect imbalance and deviation of moving machinery.
* Designed for on-site measurement of various mechanical vibrations to provide data for quality control, running time and prior equipment maintenance.

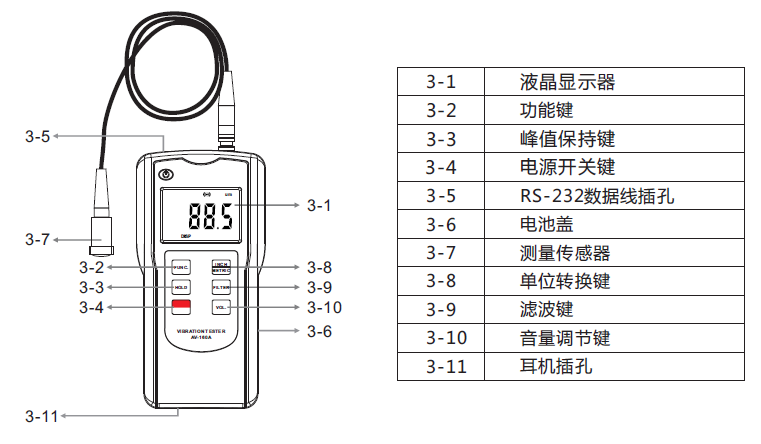

AV-160A Structure Diagram

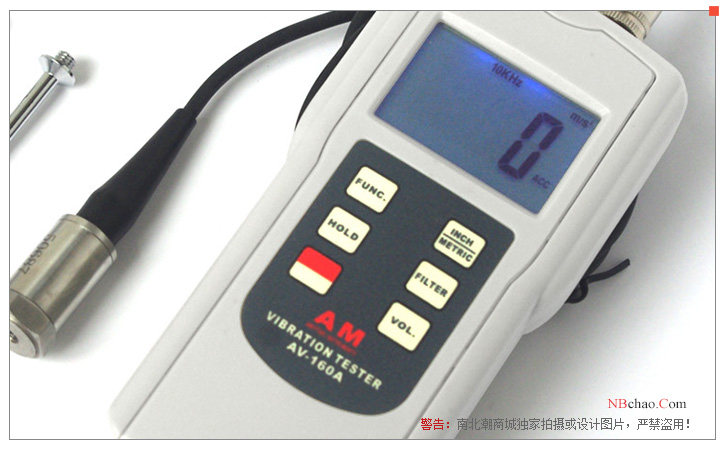

AV-160A display picture
Machine vibration classification selection table
| Vibration intensity | Applicable machine category | |||
| Vibration velocity V rms (mm/s) | I | II | III | IV |
| 0~0.28 | A | A | A | A |
| 0.28~0.45 | ||||
| 0.45~0.71 | ||||
| 0.71~1.12 | B | |||
| 1.12~1.8 | B | |||
| 1.8~2.8 | C | B | ||
| 2.8~4.5 | C | B | ||
| 4.5~7.1 | D. | C | ||
| 7.1~11.2 | D. | C | ||
| 11.2~18 | D. | |||
| 18~28 | D. | |||
| 28~45 | ||||
| >45 | ||||
Note: (1) Class I is a small motor (motor less than 15kw, etc.); Class II is a medium-sized machine (motor 15kw~75kw, etc.); Class III is a large prime mover (hard foundation); Class IV is a large prime mover ( Elastic base)
(2) A / B / C / D are vibration levels; A is good, B is satisfactory, C is not satisfactory, and D is not allowed. The measured speed (RMS) values shall be in three orthogonal directions of the bearing housing.
