Portable Glossiness Meter AMITTARI AG-104B Projection Angle 45 °

SE
AMITTARI AG-104B Portable Glossiness Meter is a single-angle portable Glossiness Meter with a test projection angle of 45 °, AG-104B Portable Glossiness Meter measurement Gloss range is 0~200GU, AG-104B is suitable for ceramic, film, water-based paint, Paints, furniture, Spinning & weaving products and anodic oxidation aluminum gloss measurement.
$382.00/set
PromotionLoading...
Coupon
Model：
Certificate
Contact
Details SPEC Con VIDEO OI
Similar products

AMITTARI AG-104B Integral GlossmeterSPEC

AMITTARI AG-104B Integral GlossmeterDetails

AMITTARI AG-104B Integral GlossmeterPacking list

SKU
NB001483
Geometry
45°
Measurement range
0~200GU
Repeatability
±0.5GU
Measuring Areas
7*14mm
Error of indication
±1.2GU
Division Value
0.1GU
Standards
ASTM D523、ASTM D1455、ASTM C346 、ASTM C584、 ASTM D2457、DIN67530、ENISO7668、JISZ8741、MFT30064、TAPPIT480、 Gb9754、 GB/T13891、GB7706、GB 8807
Data Interface
USB interface, RS-232, Bluetooth
data storage
254 groups
Operating language
Chinese
Dimensions
136*44*78mm
Weight
350g
Power
Built-in 3.7v lithium battery
software
Yes.
Stability
±0.4GU
Operating Temperature
0~40℃
Relative Humidity
≤85%
Measurement port shape
ellipse
AG-104B
Integral Glossmeter
Portable Glossiness Meter AMITTARI AG-104B Projection Angle 45 ° Picture

Overview of AG-104B Portable Gloss Meter

An Miao AG-104B Portable Gloss Meter is a single-angle gloss meter with a measuring angle of 45°, which belongs to A Miao's integral gloss meter series. AG-104B Portable Gloss Meter can measure the gloss in the range of 0~200GU, the measurement repeatability is ±0.5GU, the division value is 0.1GU, it has automatic and manual shutdown function, small and compact shape design, comfortable and convenient operation.

An Miao Gloss Meter AG-104B is specially used to measure the gloss of ceramics, films, textiles and anodized aluminum.

Features

* Stable quality, reliable performance, professional technical indicators.

* Precise, lightweight shape, easy to carry, automatic calibration, no need for manual adjustment.

* AG-104B Portable Gloss Meter has automatic shutdown, manual shutdown and power supply underVoltage indication functions.

* Use "USB/RS-232 data line output" to communicate with PC.

* Provide "Bluetooth Bluetooth Data Output" selection.

Pictures

An Miao AG-104B Portable Gloss Meter Appearance

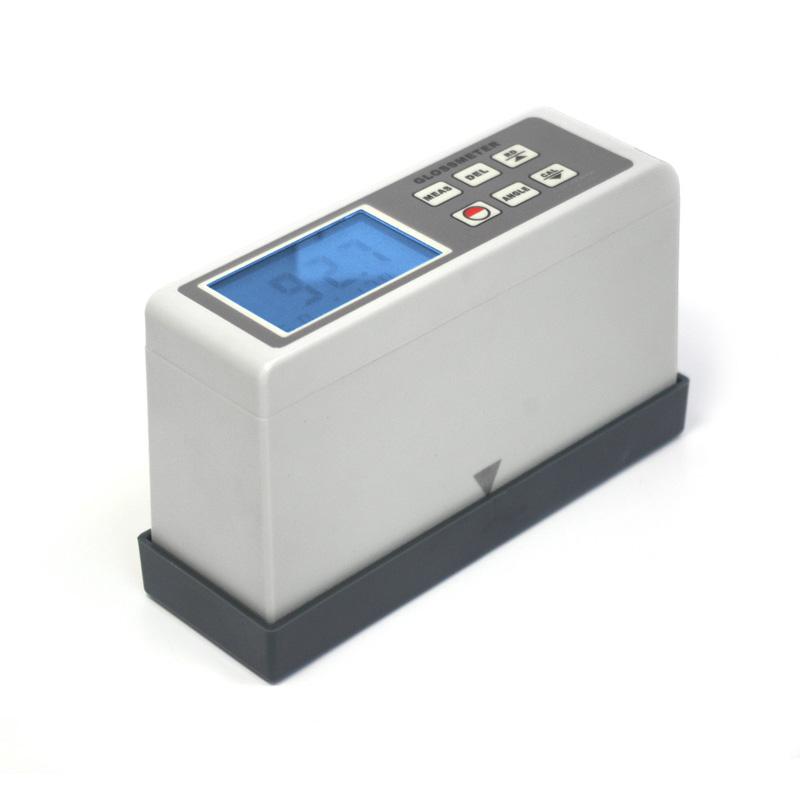

Amy AG-104B Portable Gloss Meter Side View

An Miao AG-104B Portable Gloss Meter Button Panel

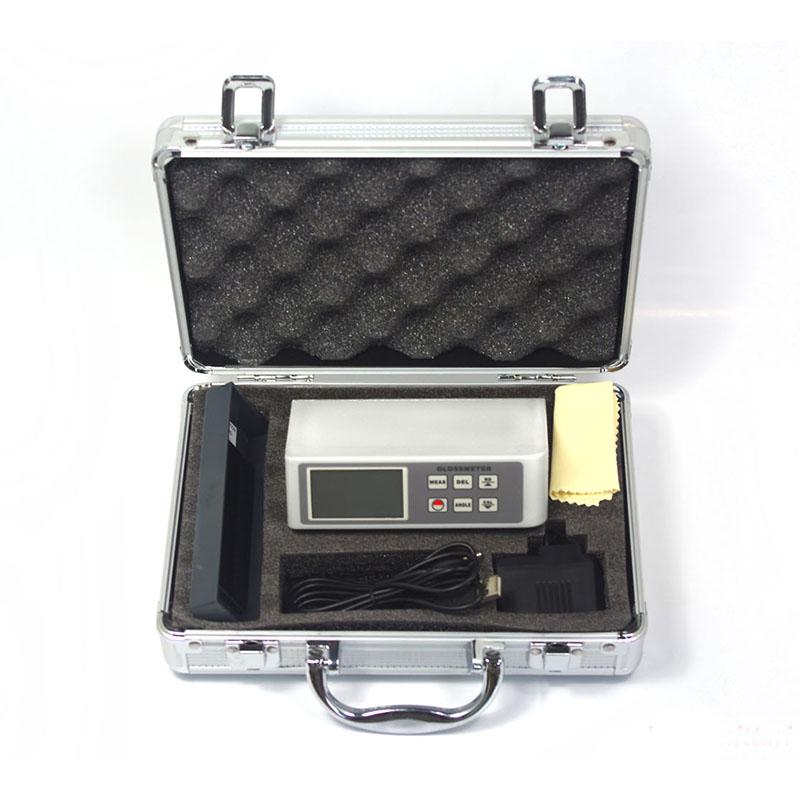

An Miao AG-104B Portable Gloss Meter Accessories Diagram

An Miao AG-104B Portable Gloss Meter Outer Packing Box


FAQ
QAccording to this standard to test the Glossiness of his sample, the unit of Glossiness is required to be%? So the glossmeter model AG-104B, the measured result, is also a unit of%?
A Yes, the unit of Glossiness can be expressed as% or a number.
QIs the AG-104B gloss auto-calibrated or manually calibrated?
A Hello, auto calibration.
QDoes the ANGLE button convert Geometry?
A Hello, yes, press this key to switch between different Geometries.
QGloss meter for measuring the angle of tiles?
A Tile Terminology Pottery and porcelain, recommended Gloss at 45 °
QDo you have the monolithic glossmeter required in the JJG696 standard?
A This AG-104B integral glossmeter will do.
QHow to choose the film Gloss measurement?
A Thin film gloss measurement can use a 45 ° gloss meter.
QCan this gloss measure Pottery and porcelain?
A Hello, yes, this AG-104B gloss instrument is 45 ° Geometry.
