BANTE BI-650 Industrial Online Conductivity Meter
SE
BI-650
Bante BI-650 Industrial Online Conductivity MeterSPEC
Bante BI-650 Industrial Online Conductivity MeterDetails
Bante BI-650 Industrial Online Conductivity MeterPacking list
- SKU
- NB014833
- Measuring range
- 0~20mS/cm (最大 200mS/cm)
- resolution
- 0.01, 0.1, 1
- Power
- DC24V
- Dimensions
- 96*96*75mm
- Weight
- 350g
- Conductivity Detector measurement Accuracy
- ±1% F.S
- Conductivity Detector calibrated point
- 1 to 3 point
- Calibrating fluid
- 84uS/cm, 1413uS/cm, 12.88mS/cm, 111.8mS/cm
- TDS range
- 0~10ppt (Max. 200ppt)
- TDS measurement Accuracy
- ±1% F.S.
- TDS conversion factor
- 0.1~ 1.0 (default 0.5)
- Temperature Measurement range
- 0~100℃
- Temperature measurement Accuracy
- ±1℃
- Temperature display resolution
- 0.1℃
- signal output
- 4~ 20mA, maximum load 500Ω
- High/low alarm settings
- 0.02uS/cm~20.0mS/cm
- Data Interface
- RS485
- Temperature compensation range
- 0~100℃
- temperature compensation coefficient
- 0.0~10.0%/℃
- Conductivity Detector cell constant
- K=0.1, 1, 10
- Standardized temperature
- 25℃
- Operating Temperature
- 0~60℃
- Optional accessories

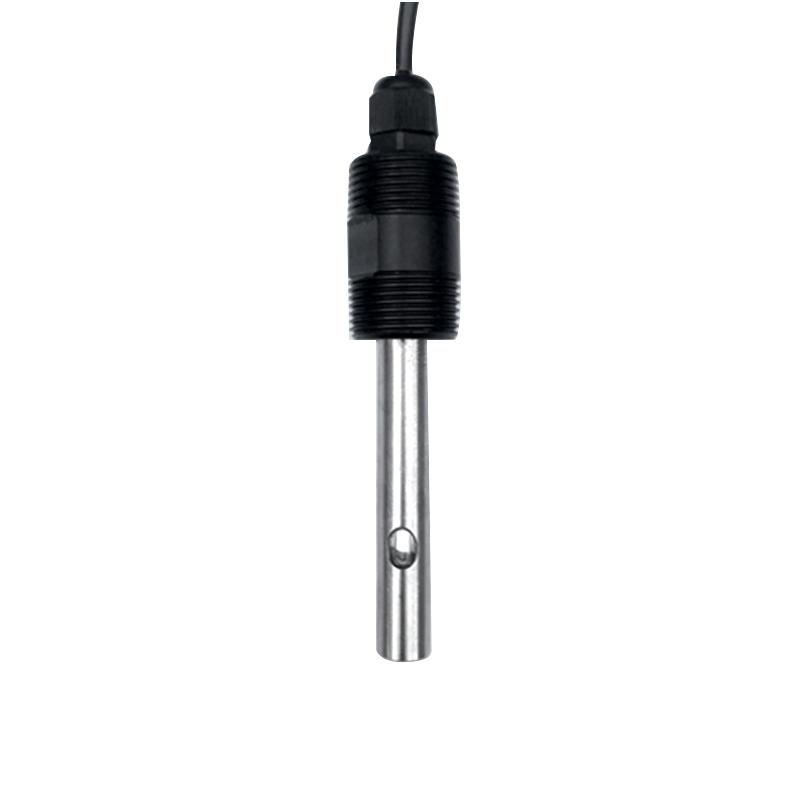

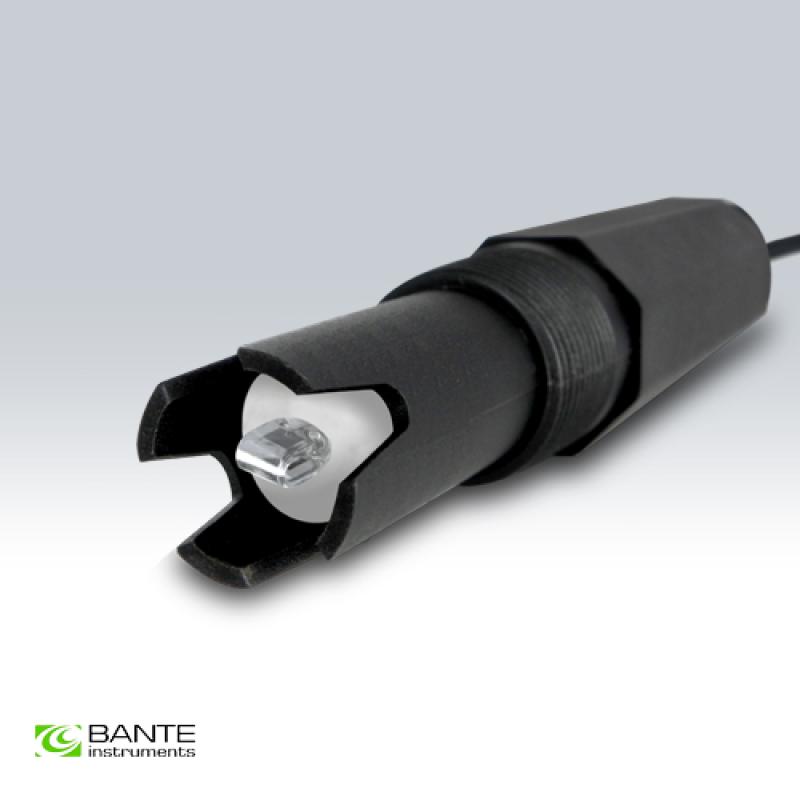

- IE-50MT type Industrial Conductivity Detector electrode, IE-50LT type Industrial Conductivity Detector electrode, IE-50HT type Industrial Conductivity Detector electrode, Conductivity Detector standard liquid
- Packaging Dimensions
- 260*200*110mm
- Encasement Weight
- 1.5kg
- Temperature compensation method
- Manual/Automatic

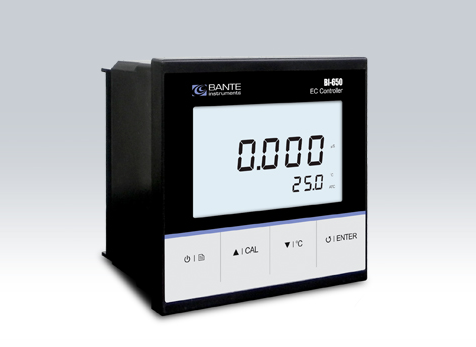

BI-650 Industrial Online Conductivity Meter
Economical industrial online conductivity meter, with TDS measurement function, 3-point key calibration, 4 to 20mA signal output, the meter is suitable for monitoring water conductivity and total dissolved solids in chemical, metallurgy, environmental protection, pharmaceutical and food industries.
Features
• Economical industrial online conductivity meter, supports 1 to 3 point calibration.
• 4 to 20mA signal output, the corresponding conductivity value can be selected.
• High or low alarm limit setting with customizable hysteresis.
• Optional cell constant (K=0.1/1/10), suitable for matching different types of conductivity electrodes.
• Optional temperature compensation coefficient and TDS conversion factor to meet the measurement requirements of different water quality.
• Automatic temperature compensation to ensure accurate measurement over the full range.
• Manual temperature calibration to improve the temperature measurement accuracy of the instrument.
• RS485 communication output, in line with industrial instrumentation standards.
• Built-in system menu, which can customize 9 functional parameters such as the number of calibration points, cell constant, temperature compensation coefficient, and alarm limit.
• One-button reset (RESET) automatically restores the instrument to factory default settings.
- 1JJG 2059-2014《Measuring Instruments for Electrolytic Conductivity》
- 2JB/T 9366-2017《Laboratory conductivity meters》
- 3SL 78-1994《Determination of conductivity (Conductivity instrument method)》
- 4GB/T 13580.3-1992《Determination of specific conductance in the wet precipitation》
- 5GB/T 18932.15-2003《Method for the determination of electrical conduct-ivity in honey》
- 6GB/T 11007-2008《Test method of electrolytic conductivity analyzers》
- 7GB/T 23977-2009《Dyestuffs - Determination of content of salt - Conductance method》
- 8GB/T 41079.2-2022《Test methods for physical properties of liquid metals—Part 2: Determination of electrical conductivity》
- 9GB/T 6908-2018《Analysis of water used in boiler and cooling system—Determination of electrical conductivity》
- 10GB/T 7977-2007《Paper,board and pulps - Determination of conductivity of aqueous extracts》
