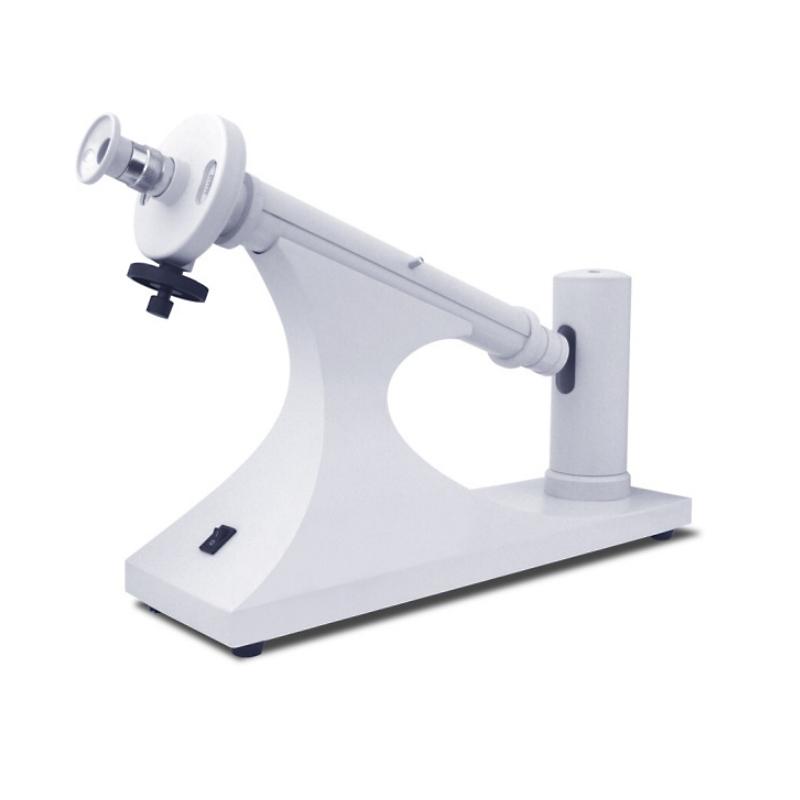

BANTE WXG-4 Disc Polarimeter -180 °~ 180 °

WXG-4

Disc polarimeter

Classical disc polarimeter, large range (+/- 180 °), easy to operate, the instrument is suitable for measuring the optical rotation of Optical rotation compound solution, Measurement accuracy: 0.05 °.

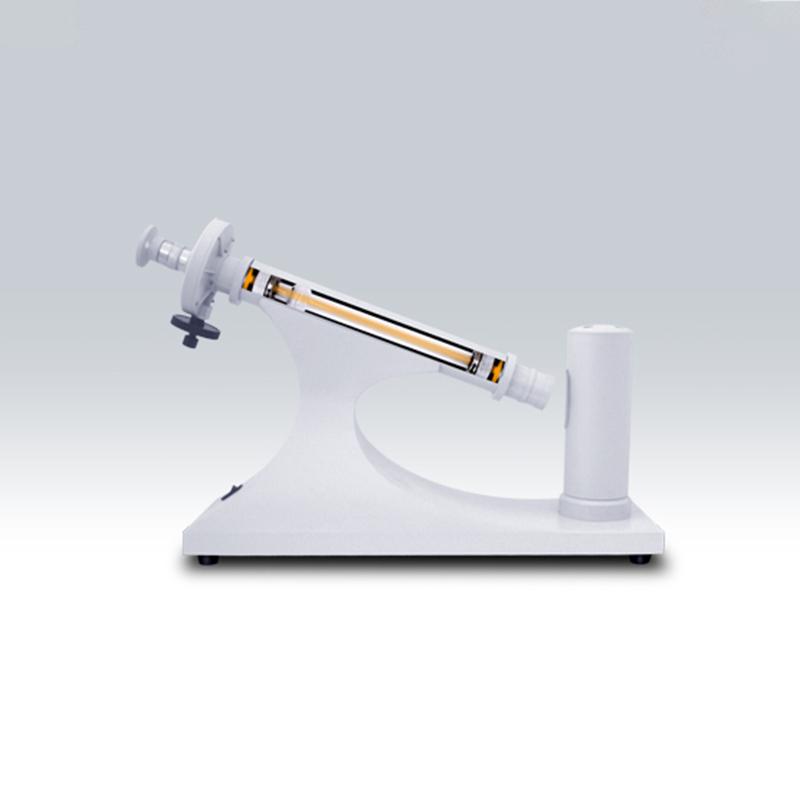

WXG-4 Disc Polarimeter

The classic WXG-4 disc polarimeter is easy to operate and has a wide range (±180 degrees). The instrument is suitable for measuring the optical rotation of optically active compound solutions, and the measurement accuracy is 0.05 degrees.

Operating Features

The WXG-4 disc polarimeter is equipped with a standard sodium lamp with a wavelength of 589nm. After the power is turned on, the light source of the sodium lamp is projected onto the condenser, and after the polarizer, it is divided into ordinary light and extraordinary light. Through the eyepiece of the instrument, you can See a light display that is dark on one side and bright on the other.

Put the test tube containing the optically active compound solution into the sample chamber, turn the handwheel slowly to find the light that is consistent with the zero point, and then read the reading on the dial from the magnifying glass, which is the optical rotation value of the sample. After the measurement, you can calculate the purity, concentration, content and specific rotation of the substance through the optical rotation value.

Disk Polarimeter

Applications:

• Research and teaching

• Pharmaceutical and chemical industry

• Food and sugar industries

• Other industrial applications

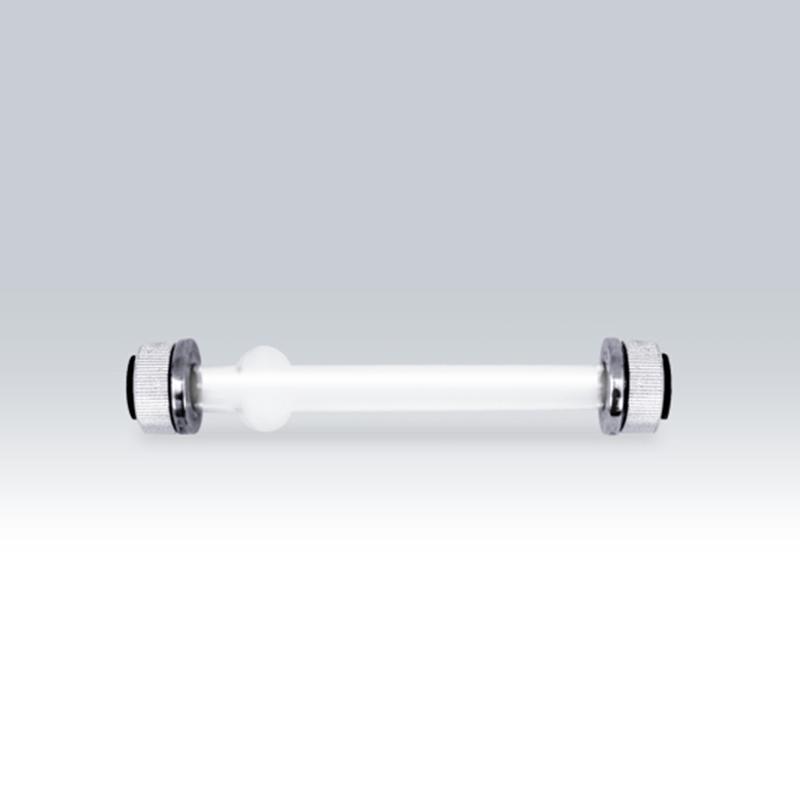

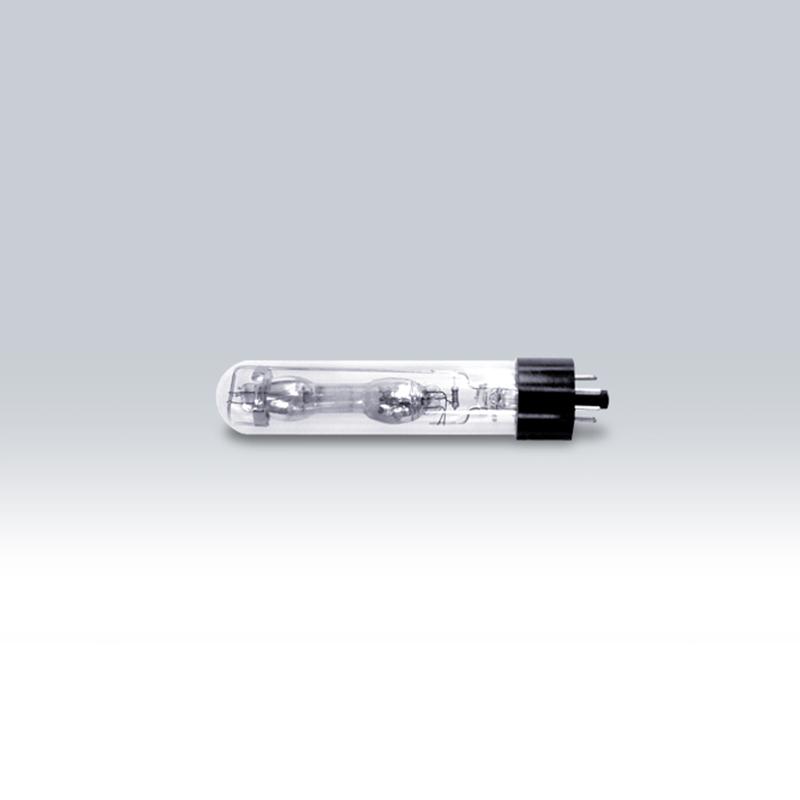

Packing list：Host X1, 100mm Glass testtube X1, 200mm Glass testtube X1, sodium lamp (built-in instrument) X1, manual X1, certificate X1, warranty card X1

[Note]Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
