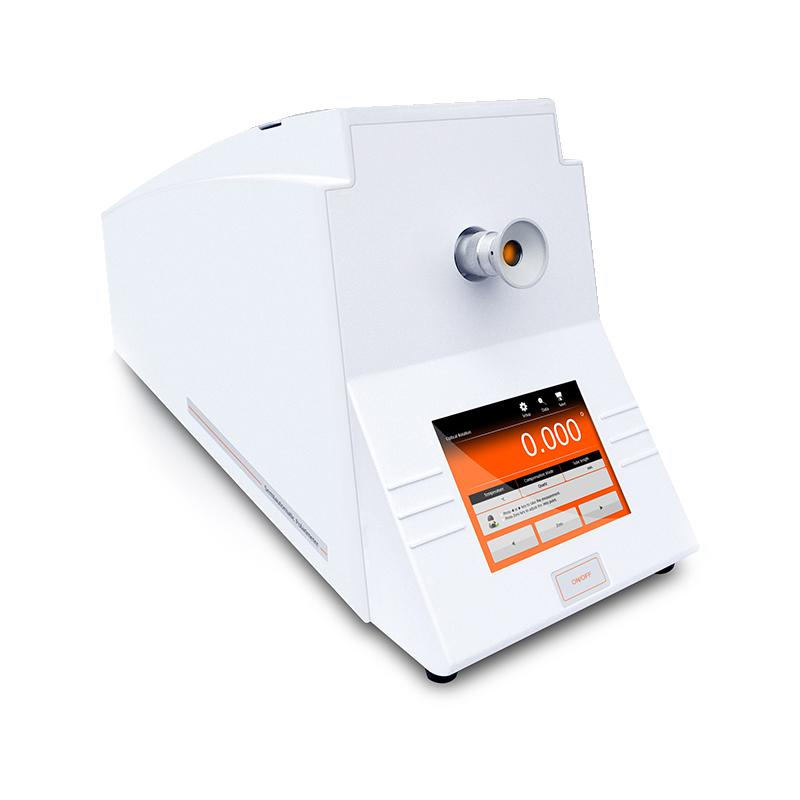

BANTE POL-200 Disc Polarimeter

POL-200

Disc polarimeter

Multiparameter semi-automatic Polarimeter, 1 to 3 point calibrated, with setting menu, the instrument is suitable for determining the optical rotation, specific rotation, concentration and sugar content of Optical rotation compound solution, Measurement accuracy: 0.02 °.

POL-200 Semi-automatic Polarimeter

Multi-parameter semi-automatic polarimeter, equipped with a 5.6-inch touch screen, 1 to 3-point calibration, built-in system menu can set a number of functional parameters, the instrument is suitable for measuring the optical rotation, specific rotation, concentration and sugar content of optically active compound solutions, and measurement accuracy : 0.02 degrees.

Features

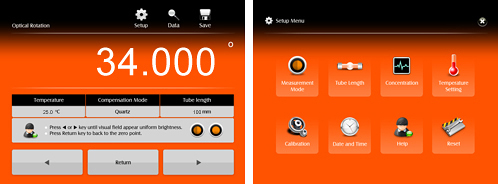

• Multi-parameter semi-automatic polarimeter, equipped with a 5.6-inch TFT touch screen.

• 4 measurement functions are optional, including optical rotation, specific rotation, concentration and international sugar content.

• Long-life LED with 589nm filter, avoiding the 200-hour service life limit of traditional light sources.

• Built-in temperature sensor to sense the temperature change of the sample chamber in real time.

• Touch button design, just press the < or > key to start the measurement process.

• Automatic zero-return system, restore the optical zero point with one key.

• Automatic temperature compensation, instant conversion of measured values to specific rotation values at 20°C.

Semi-automatic polarimeter

• Optional test tube length (100, 200mm or custom), automatically calculates the measured value of non-standard test tubes.

• Manual zero point correction to adjust the optical field of view and remove zero point errors.

• 1 to 3-point calibration to ensure measurement accuracy within the full range.

• Automatic information prompts to help users understand the currently available operating steps.

• 100 sets of data storage, automatic marking time, date and input sample name.

• USB communication interface can send stored data to personal computer.

• Built-in text file detailing how to use the instrument.

• One-button reset function (Reset), automatically restore the instrument to the factory state.

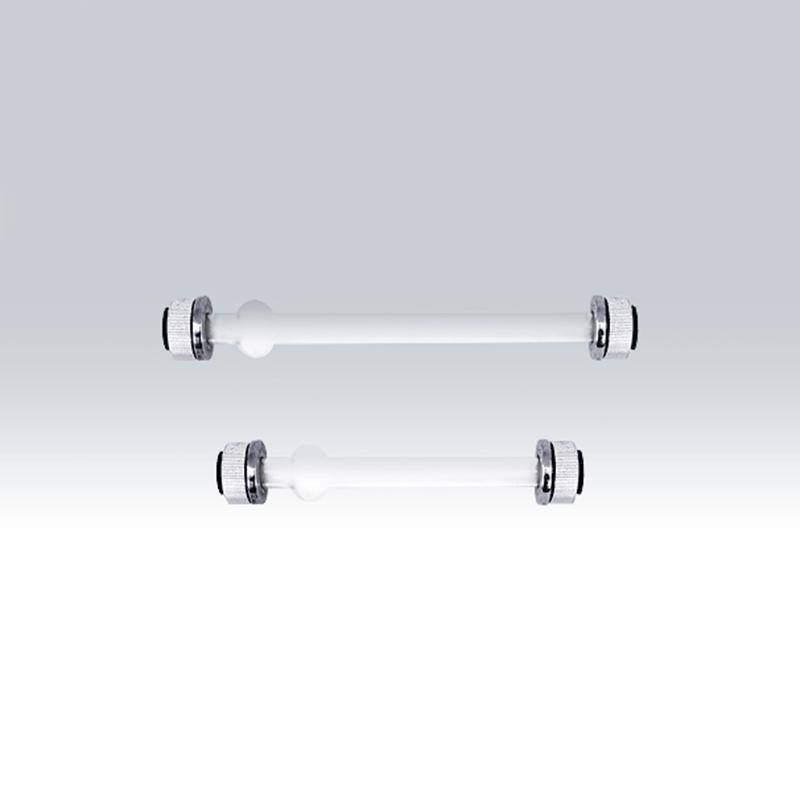

Packing list：Host X1, 100mm Glass testtube X1, 200mm Glass testtube X1, power cord X1, manual X1, certificate X1, warranty card X1

[Note]Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
