Induction Wood Moisture Meter AMITTARI AM-128S High Frequency Electromagnetic Wave Induction Wood Moisture Meter

AM-128S

Inductive wood Moisture Meter

Overview of the AM-128S Inductive Wood Moisture Meter

AM-128S Inductive Wood Moisture Meter is an inductive wood Moisture Meter that adopts the measurement method of inductive and non-destructive testing, and the measurement principle is:High-frequency electromagnetic wave measurementsThe dielectric constant of the measured object is determined, and then the moisture of the measured object is measured.The AM-128S inductive wood Moisture Meter can measure in the range of 0~70%, which can be used for moisture determination of different materials by setting different measurement codes, and through LCD digital display and LED light-emitting tube status prompt.

Application

AM-128S Inductive Wood Moisture MeterIt is widely used in the measurement of moisture in various materials such as wood, wood fiber materials such as bamboo products, wood, cotton, paper, construction, soil and other non-conductive materials.

Features and advantages

* There are two display modes, i.e., digital display on the LCD and status indication of the LED light emitting tube. The combination of the two displays helps users make an accurate and reliable judgment on the extent of problems that moisture may cause.

* With automatic shutdown function, power saving.

* 99 sets of data can be stored, and the statistical function of the instrument can be realized by measuring the average, maximum and minimum values.

* It can be widely used for moisture measurement of fibrous substances, such as buildings, building materials, various non-metallic materials, paper, bamboo products, cotton, textiles, soil, and other occasions that need to measure moisture.

* With the optional RS232C software and cable, it can communicate with the PC computer to realize the functions of data acquisition, processing, analysis and printing.

* For different measured materials, this instrument has a variety of measurement codes for users to choose. By selecting different codes, the measurement results can be made more accurate.

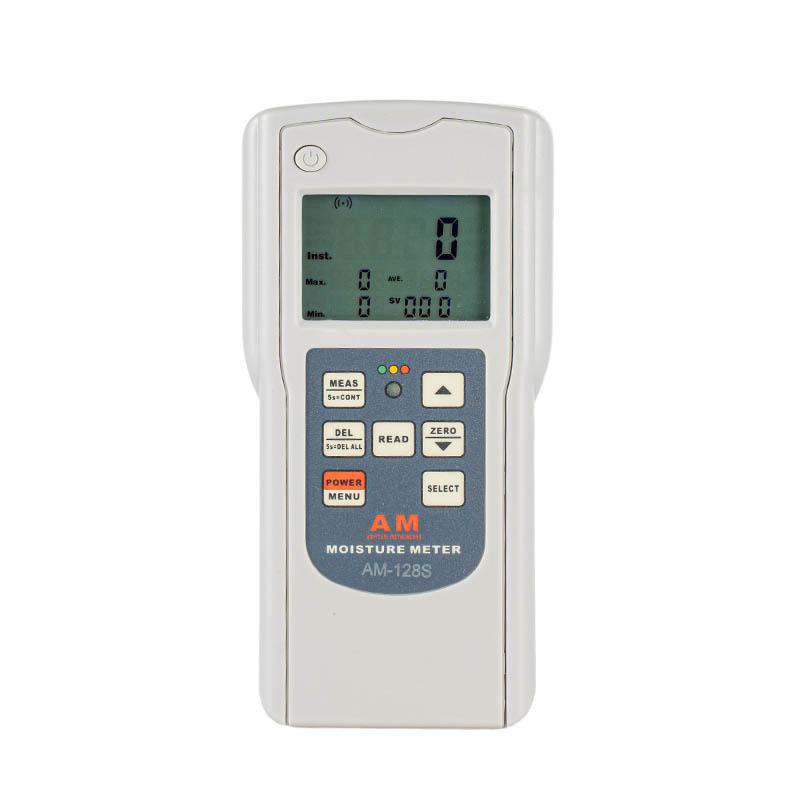

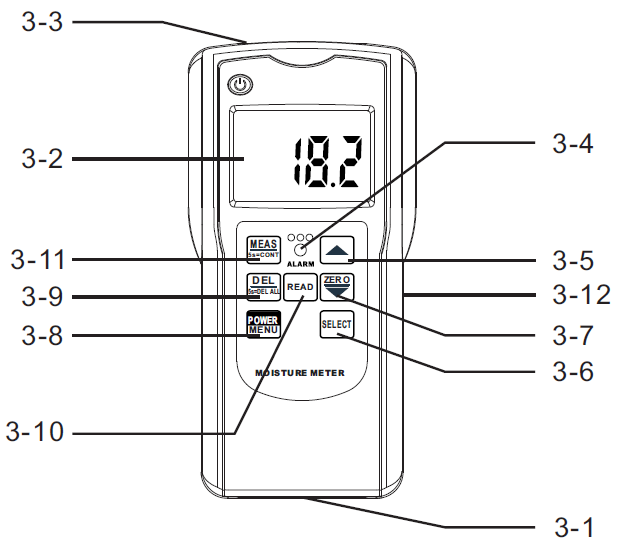

AM-128SStructural diagram

3-1 Inductive sensors

3-2 monitors

3-3 RS232C interface

3-4 Moisture status indicator

3-5 Plus key

3-6 Decrease/zero key

3-7 Code selection key

3-8 Power/Menu Keys

3-9 Delete key

3-10 Read key

3-11 Measuring keys

3-12 battery compartment/cover

AM-128S display diagram

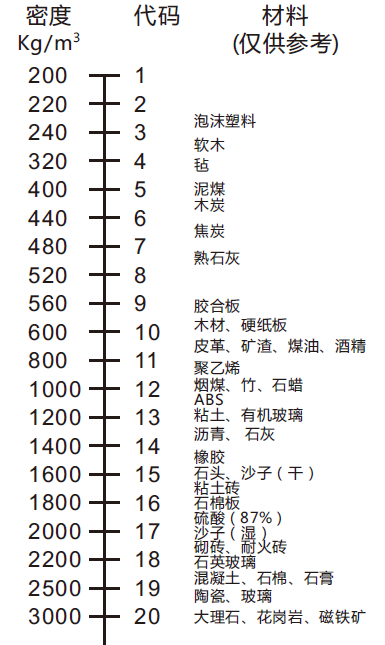

Materials & Codes

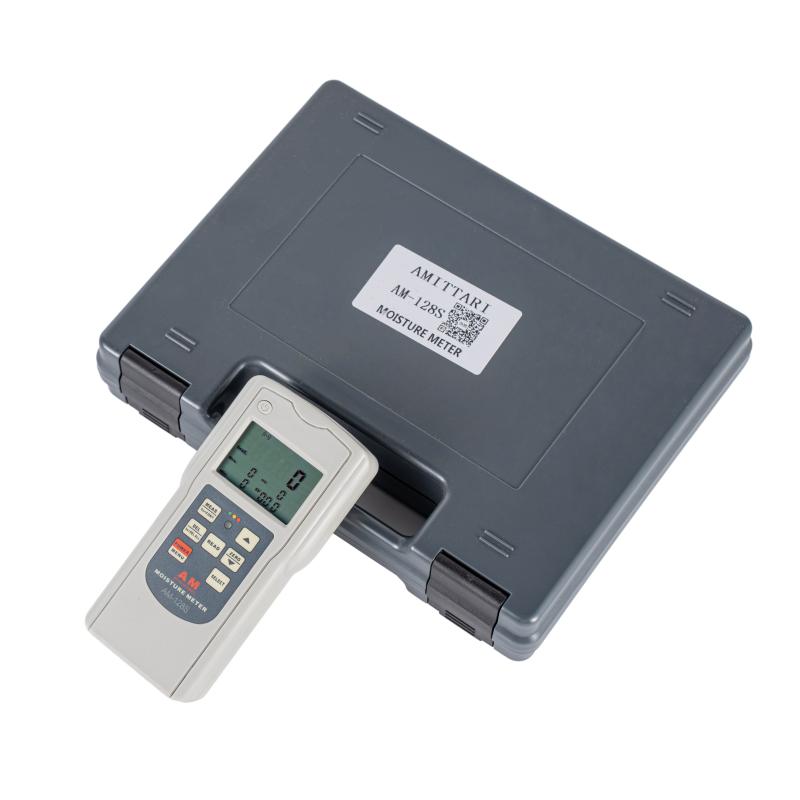

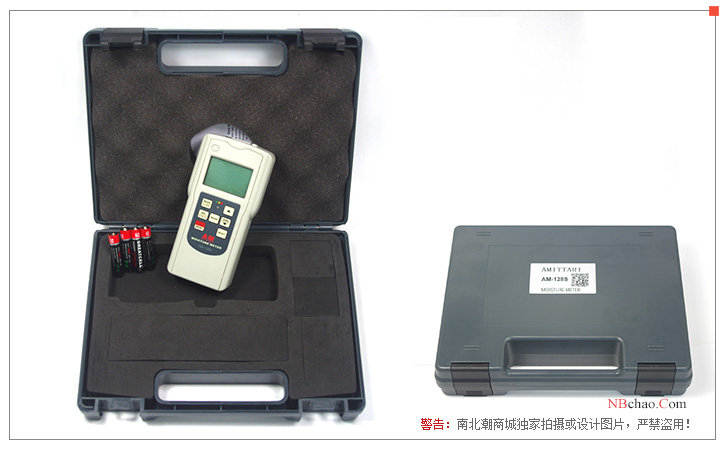

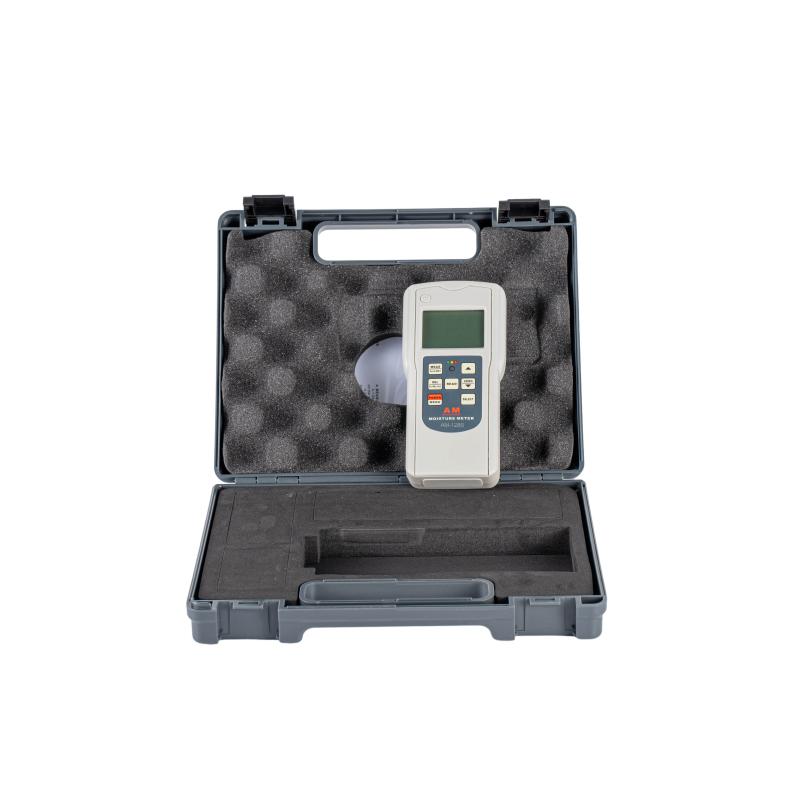

Packing list：Host x1, Portable box x1, Manual x1, Built-in Sensors x1

[Note]Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
