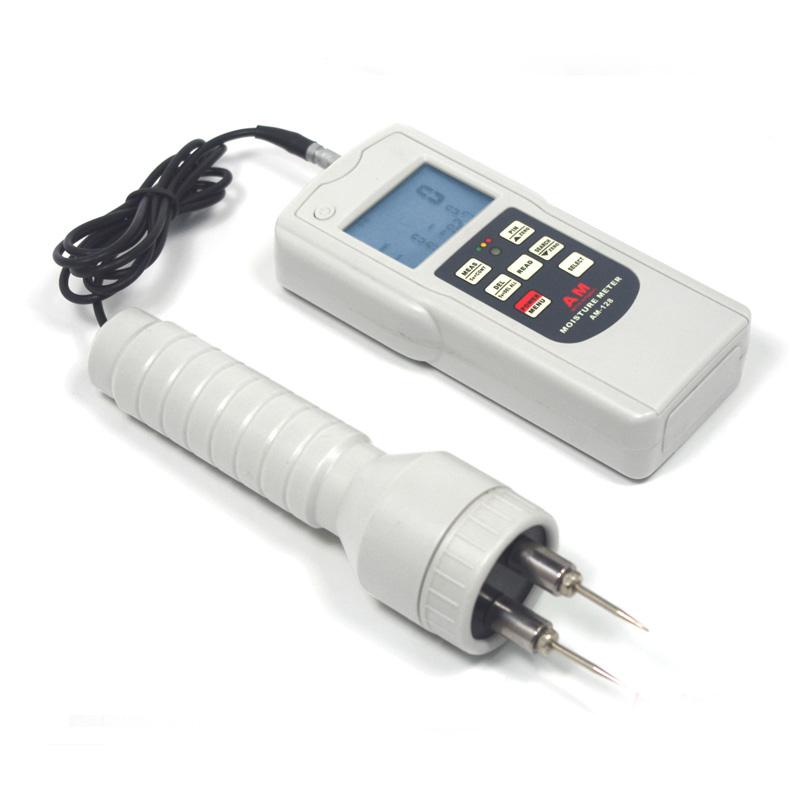

Needle induction dual-use wood Moisture Meter AMITTARI AM-128PS
SE
AM-128PS
AMITTARI AM-128PS Needle induction dual-use wood Moisture MeterSPEC

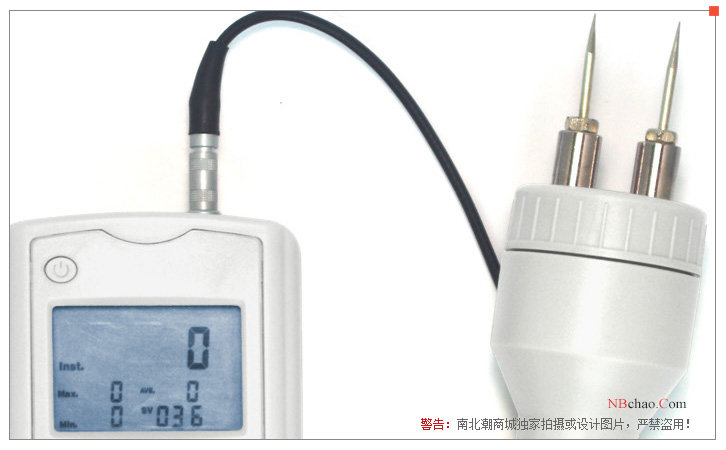

AMITTARI AM-128PS Needle induction dual-use wood Moisture MeterDetails

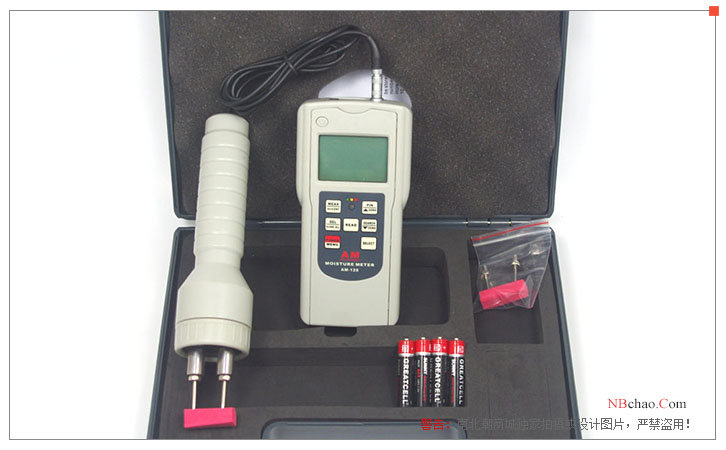

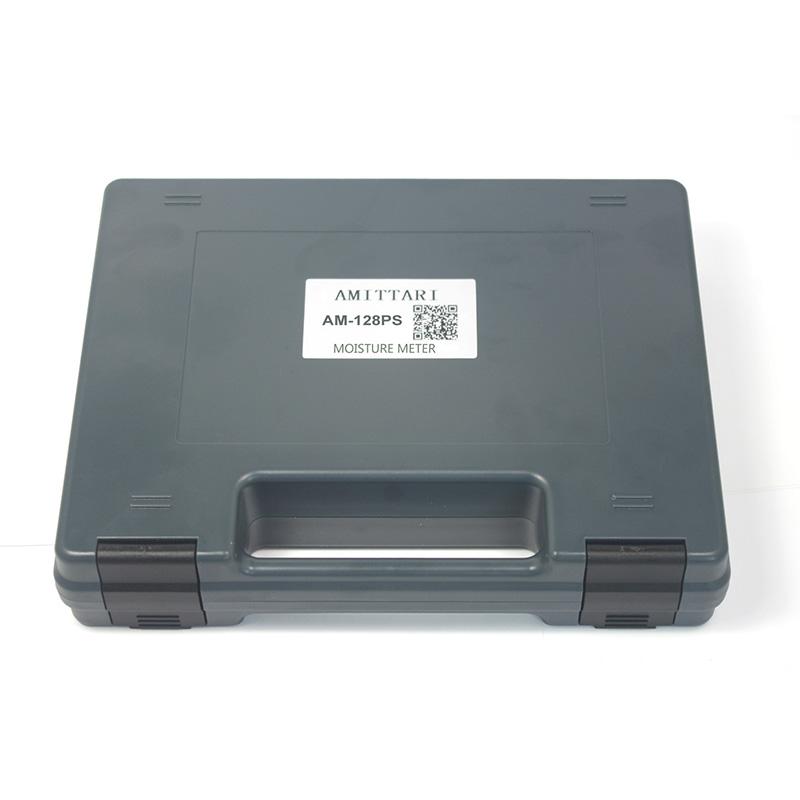

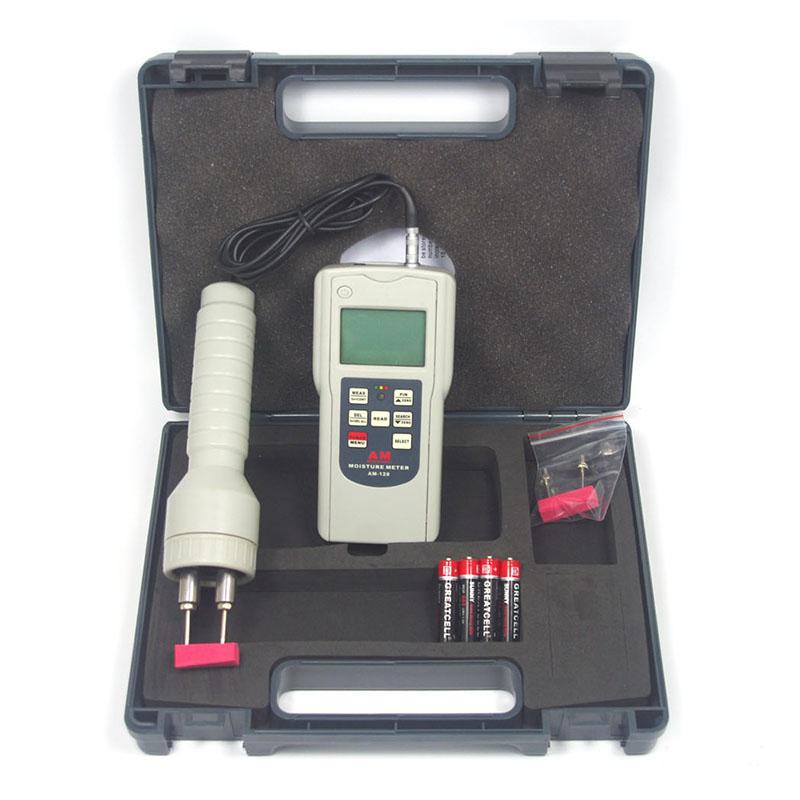

AMITTARI AM-128PS Needle induction dual-use wood Moisture MeterPacking list
- SKU
- NB001487
- Display light
- LED display light; used to display values and moisture status; green light on, indicating safe moisture status; yellow light on, indicating critical moisture status; red light on, indicating wet moisture status
- Measuring range
- 0~80% (needle type, standard file Cd00); 0~70% (standard file Cd10) The Measurement range varies with the code.
- resolution
- 0.1
- Accuracy
- ±(0.5%n+0.5)
- Power
- 4 AA batteries
- Host size
- 130*70*30mm
- Weight
- 130G (without battery)

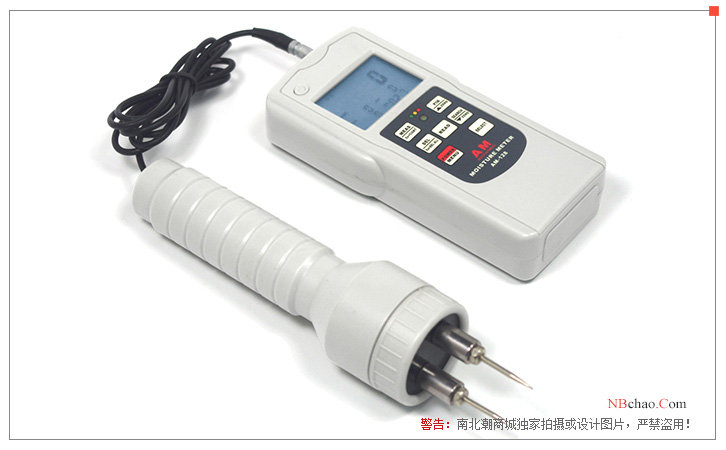

Overview of AM-128PS
Amiao AM-128PS needle-type induction dual-purpose wood Moisture Meter is a split structure design. It is equipped with needle-type and induction sensors as standard. The moisture range that can be measured is 0-80% and 0-70%. AM-128PS needle-type induction dual-purpose wood Moisture Meter is a multi-functional type, which can be widely used in non-conductive materials such as wood and wood fiber materials such as bamboo products, tobacco, cotton, woodware, Chinese medicinal materials, paper, construction, and soil. And other materials moisture measurement.
feature of product
* AM-128PS has two measurement modes, needle measurement mode and inductive measurement mode.
* With "auto power off" and "Bluetooth" and other functions.
* With automatic shutdown and manual shutdown functions and underVoltage alarm indication function.
* AM-128PS needle-type induction dual-purpose wood Moisture Meter adopts USB data line output to communicate with PC.
* Provide Bluetooth data output option.
* For different materials to be tested, there are a variety of measurement codes for users to choose. By selecting different codes, the measurement results can be made more accurate.
* Two display methods, that is, the digital display on the LCD and the status indication of the LED light-emitting tube. The combination of the two displays can help the user make an accurate and reliable judgment on the extent of the problem that moisture may cause.

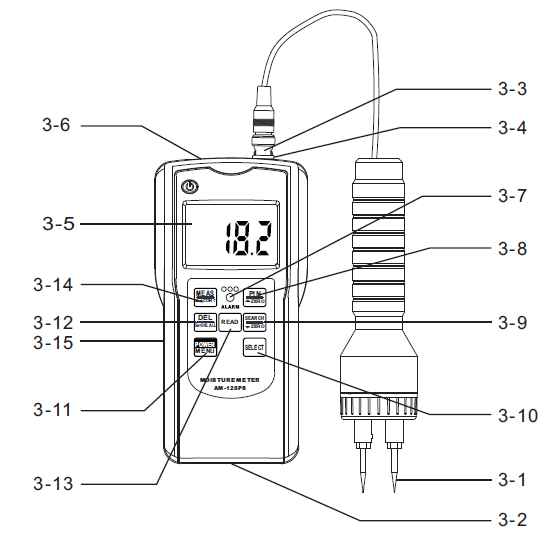

Functional Structure Diagram
3-1 Needle sensor; 3-2 Inductive sensor; 3-3 Rod plug; 3-4 Rod jack; 3-5 Display; 3-6 RS232C interface; 3-7 Moisture status indicator
3-8 plus/needle zero calibration key; 3-9 minus/inductive zero calibration key; 3-10 code selection key; 3-11 power/menu key; 3-12 delete key; 3-13 read key
3-14 Measuring key; 3-15 Battery box/cover

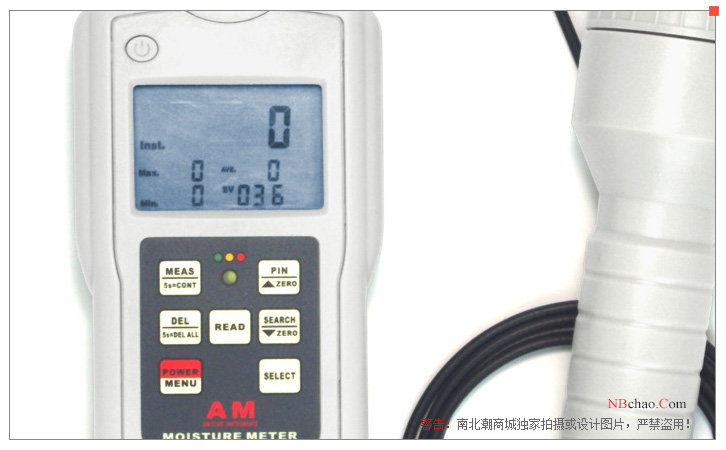

AM-128PS display picture
Precautions for use
1. Due to the uneven distribution of moisture in the measured object, the moisture contained in different surfaces of the same measured object will be different, so the measured results will also be different.
2. The insertion depth of the needle measurement will directly affect the result of the guide measurement. Generally, the deeper the depth, the greater the measured moisture value. Therefore, please pay attention to the consistency of the insertion depth.
3. Precautions for inductive measurement
1) If the surface of the material is smooth, just press it lightly; if the surface is rough, use a little more force when measuring.
2) If there are water droplets or dirt on the surface of the material, wipe the surface clean before measuring.
3) Within 50 mm below the sensor, there must be no hands and metal objects, otherwise it will cause measurement errors.
Materials and codes
| material code | material name |
| Cd00 | North American fir, dipterocarp ceylon, dipterocarp, ancient rue, eucalyptus, spotted eucalyptus, small-capped eucalyptus, heterochromatic eucalyptus, syringa, brown sycamore, eucalyptus, Twist pine, scots pine , Twist pine, Twist pine, Twisted pine, Scots pine, Yellow pine, European redwood tree, American red rubber tree, spotted rubber tree, European ash, white birch, balsa wood, boxwood, African cypress, cypress, maple , Black Poplar, Indian Rosewood, American Oak, European Oak, Japanese Oak, Ximen, Rosewood (Ebony, Rosewood, etc.), Sandalwood, Australian Rosewood, Capu, American Walnut, Sugar Maple, Large Acer, Quercus robur, bamboo and its products |
| Cd01 | Evergum, Meranti, Narrowleaf Araucaria, Largeleaf Araucaria, North American Sequoia, Merbau, Huon Pine, Douglas Fir, Maritime Pine, Southern Rubber Tree, California Redwood Tree, American Ash, Western Mahogany , Light Brown Queensland Maple, New Guinea Walnut, New Zealand White Pine, Giant Pan, Red Sala, Indian Sala |
| Cd02 | Jarrah, Australian Eucalyptus, African Silver Birch, Australian Silver Birch, Its Tree, Nigerian Sapphire, European Walnut, Queensland Walnut, Oak, Trellis, White Timber, European Clover, Silver Birch, North American Joe Cypress, North American larch, European larch, Japanese larch, Podocarpus spikenosa, European black pine, Corsican black pine, longleaf pine, yellow pine, red cedar, ponderosa pine, American long clover pine, Caribbean pine , Pine radiata, Pine radiata, European spruce, European yew, European fir, Picea spruce, Western hemlock, Hemlock hemlock, Yew, Greenheart ocotea, Soilwood, Chestnut |
| Cd03 | New Zealand kauri, New Zealand fir, Binkatou, Turkish oak, African neem, bittern, Turkish oak, American elm, English elm, elm elm, white elm, Burmese eggplant, lime, podocarpus, New Zealand luohan loose |
| Cd04 | Acer sycamore, Hickory glabra, Pillar mangrove, Small fig tree, Western larch, Western larch, Rosewood, African rosewood, Teak, Ragwood, Hickory, American light ragwood |
| Cd05 | West African red bean, African red bean, persimmon tree, American persimmon, Indian rosewood, basswood, hornbeam wood, prismatic wood, dragon wood, yellow cedar |
| Cd06 | Brasilia, Neem hump, Neem white |
| Cd07 | Tall Fir, Queensland Kauri, Queensland Fir, African Mahogany, African Walnut, Weeping Birch, Croton, European Sweet Cherry, Cherry, Small Pecan Hickory, Black Humpback, European Birch, Cedar, Thousand Miles |
| Cd08 | paper, cardboard |
| Cd09 | buildings, walls, concrete |

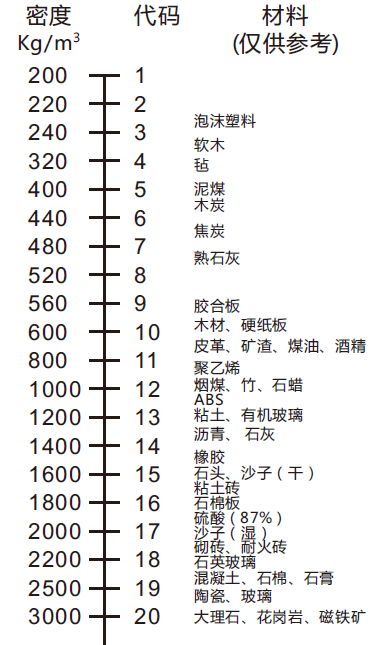

Density and Code
