Whiteness meter AMITTARI AWM-216 Flat surface object or powder whiteness measurement

AWM-216

Whiteness meter

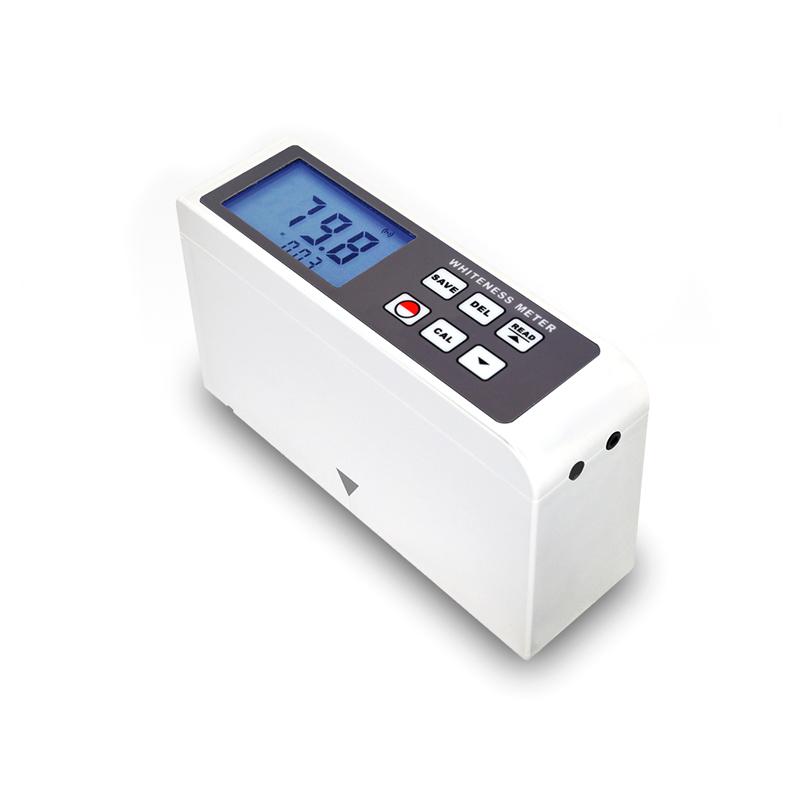

AWM-216 Whiteness Meter overview

AMITTARI AWM-216 Whiteness Meter is a horizontal digital display Whiteness Meter with a white shell, which is used to directly measure the whiteness value of flat surface objects or powders. The measuring range of AWM-216 Whiteness Meter is 0~120, The resolution is 0.1. AWM-216 Whiteness Meter adopts LED 457nm light source and simple optical path design to accurately and quantitatively reflect the whiteness value after fluorescent whitening, which meets various national standards. The measuring aperture is rectangular and the size is 18x11mm.

AWM-216 Features

1. Adopt high-quality imported components and components, with good reliability.

2. Reasonable and concise optical path design, using a modified color filter system, can quantitatively reflect the whiteness value after fluorescent whitening.

3. The Whiteness Meter is composed of light source, optical system, detection system, data processing and display system. The whiteness calculation formula of AWM-216 Whiteness Meter is blue light whiteness R457.

4. Define the whiteness value of a perfect diffuse reflector whose diffuse reflectance is 1 in the visible spectrum range is 100, and the whiteness value of a black surface with a spectral reflectance factor of 0 is 0.

5. There is no need to warm up after starting up, and the measurement can be carried out after simple calibration, which is easy to operate

6. With data storage function, it can store 254 sets of data.

7. AWM-216 uses USB and RS-232C data line output to connect with PC for data collection.

8. In addition, there is an option for Bluetooth data output.

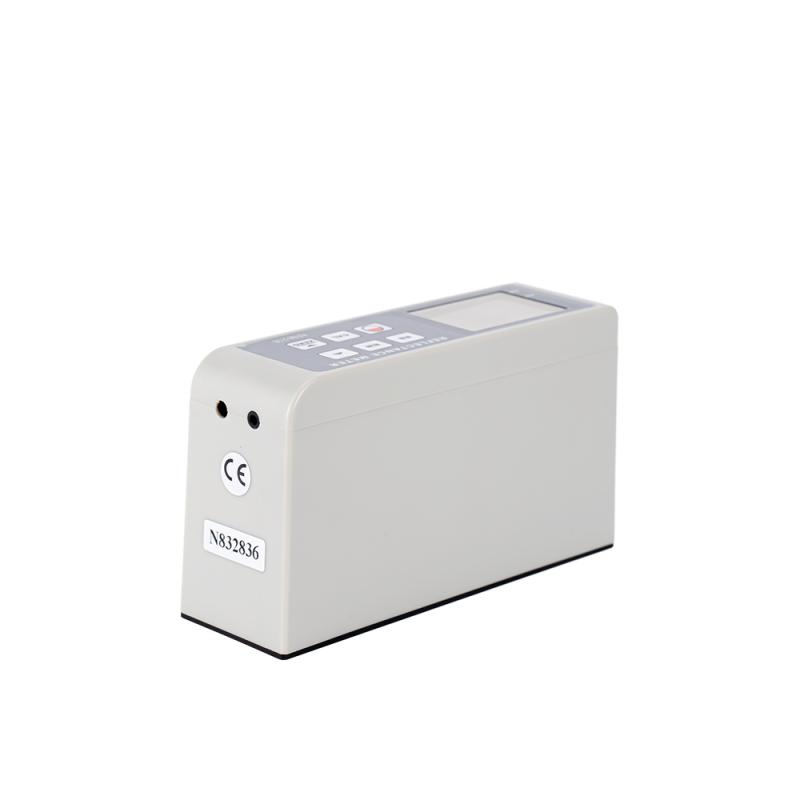

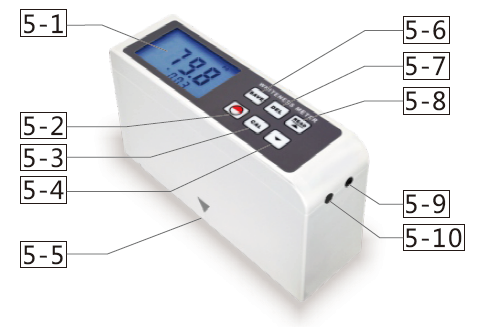

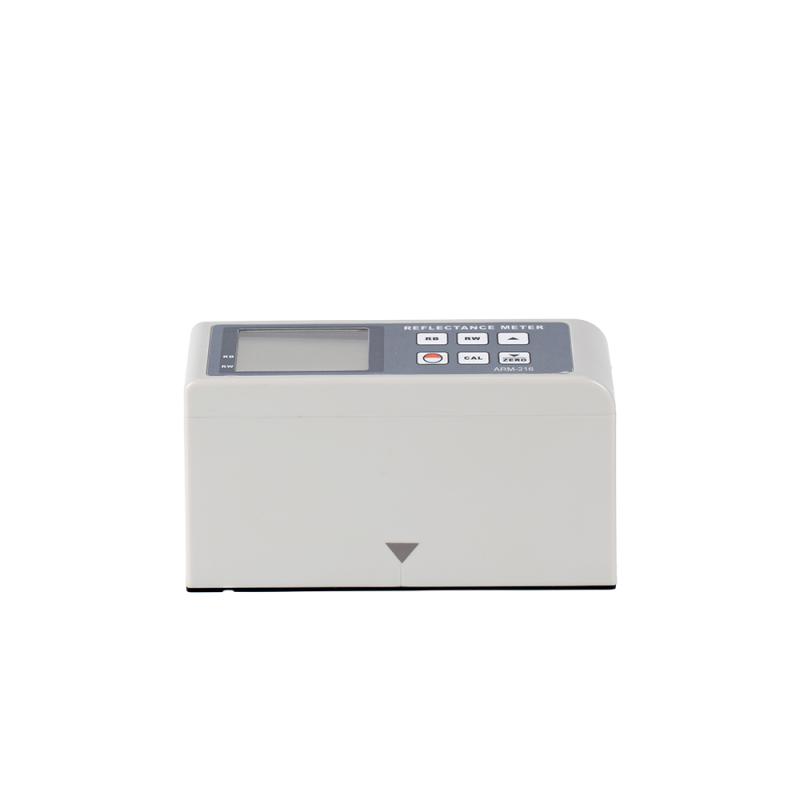

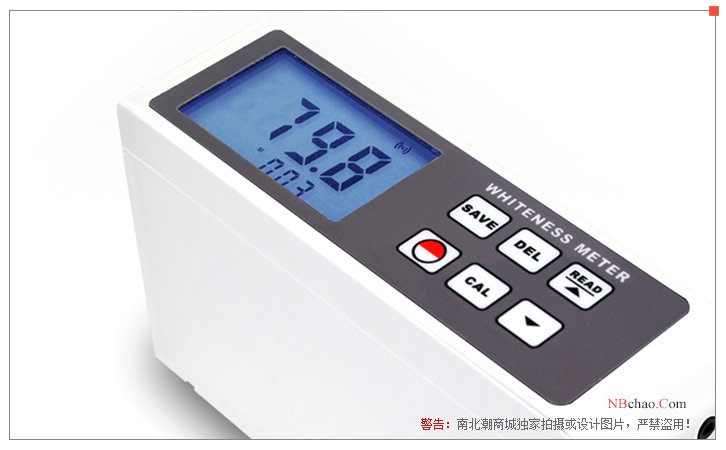

Functional Structure Diagram

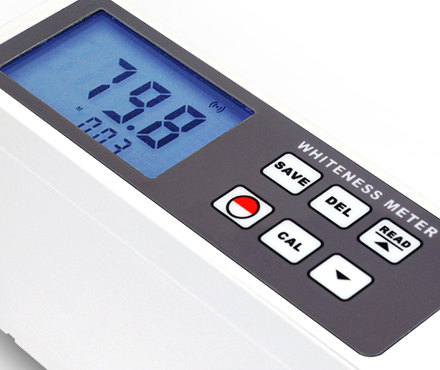

5-1 Display

5-2 Power button

5-3 CAL calibration key

5-4 ▼ minus key

5-5 Bottom Sensor

5-6 SAVE storage key

5-7 DEL delete key

5-8 READ/▲

read/key

5-9 RS232 interface

5-10 AC Interface

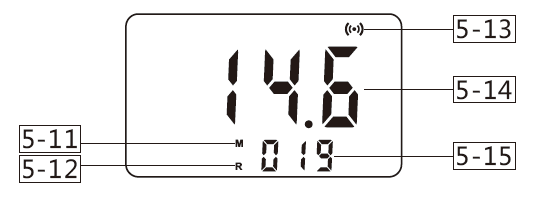

5-11 M Measurement Symbols

5-12 R read symbol

5-13 Coupling symbols

5-14 Measurement data

5-15 Number of data groups

Applications

AWM-216 Whiteness Meter is mainly used to directly measure the whiteness value of objects or powders with flat surfaces. It can be widely used in textile printing and dyeing, paint coatings, chemical building materials, paper cardboard, plastic products, white cement, ceramics, enamel, talcum powder, Whiteness measurement of starch, flour, salt, detergent, cosmetics and other substances.

Standards

AWM-216 Whiteness Meter complies with JJG 512-2002 Whiteness Meter verification regulations, GB3978, GB3979, GB7973, GB7974, ISO2470, GB8904.2, QB1840, GB2913, GB13025.2, GB1543, ISO2471, GB10339, GB5950, GB1291 1. GB2409 and other standards

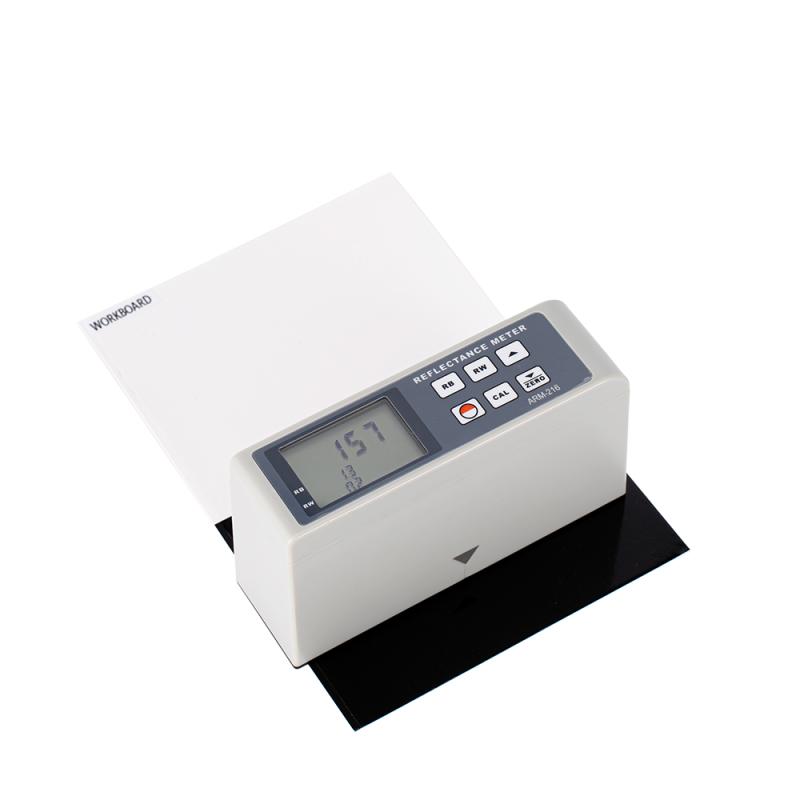

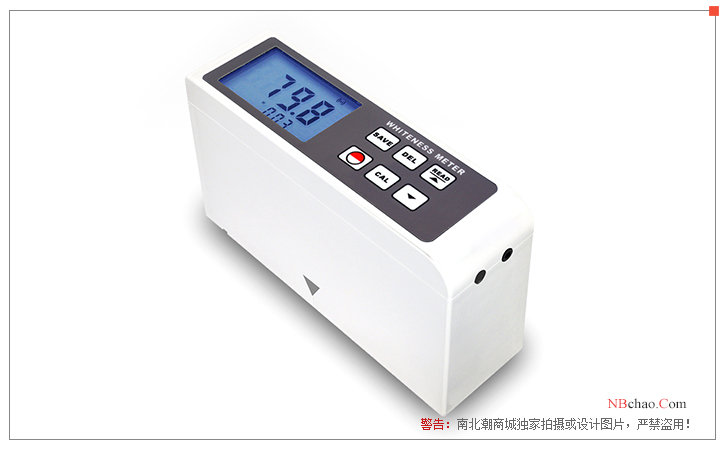

AWM-216 display picture

Principle

The measurement and reception of AWM-216 Whiteness Meter adopts the principle of photoelectric effect. The radiance energy value of the diffuse reflection of the sample surface is received by the photocell, amplified by a high-precision automatic zero-stabilizing operational amplifier, and then input to the calibration circuit for energy value calibration, and then the digital display directly displays the whiteness value of the sample.

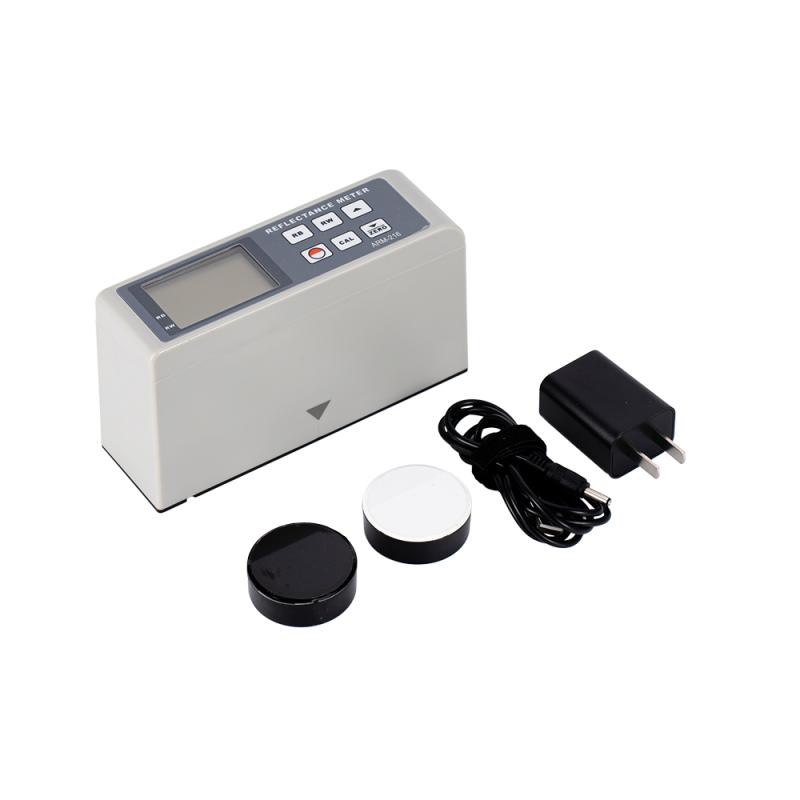

Packing list：Host x1, Standard whiteboard x1, Optical inspection cleaning cloth x1, Power adapter x1, Portable case x1, Instruction manual x1

[Note]Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
