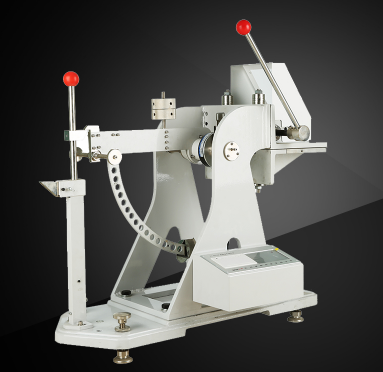

YANTE YT-PRT48 Puncture strength Tester measurement strength: 0~48J
SE
YT-PRT48
-
CHINA NBC-8506 Microcomputer Intelligent Penetration Strength Testing Machine$ 1599.00SE -
CHINA ZY-CC Piercing Tester$ 1936.00SE -
PUYUN PY-H617 Microcomputer Piercing Strength Tester 1-48J$ 1750.00SE -
YINUO YN-CCY48 Microcomputer Penetration Strength Tester 1-48J$ 2418.00SE -
HP-CC48B Cardboard Puncture strength Tester$ 2200.00SE
YanTe YT-PRT48 Puncture strength TesterSPEC
YanTe YT-PRT48 Puncture strength TesterDetails
YanTe YT-PRT48 Puncture strength TesterPacking list
- SKU
- NB014929
- Power supply Voltage
- AC(100~240)V，(50/60)Hz
- Operating Environment
- Temperature (10~35) ℃, Relative Humidity < 85%
- Measurement gear
- A file B file C file D file
- Measurement range
- 0~6J、0~12J、0~24J、0~48J
- Error of indication
- A file: +/- 0.05J; B file: +/- 0.1J; C file: +/- 0.2J; D file: +/- 0.5J
- Friction sleeve resistance
- ≤0.25J
- Pyramid characteristic size
- Three base edges length 60 * 60 * 60mm, height (25 +/- 0.7) mm
- Edge fillet radius
- R(1.5±0.1)mm
- printout
- Built-in thermal printer
- Communication interface
- RS232
- Dimensions
- 820*450*860mm
- Weight
- 110Kg (Net Weight)
- Communication interface
- RS232 interface and microcomputer software (optional)
Introduction
YT-PRT48 puncture strength Tester is a special testing instrument for puncture resistance (puncture strength) of corrugated cardboard. Measure the puncture resistance (joules) of corrugated cardboard samples, understand the puncture resistance of corrugated cardboard boxes, and simulate the damage of boxes when they are violently hit by other boxes or conical objects during handling and transportation.
Application
Cardboard, cardboard, plastic board, hollow board, leather, film, fireproof board, cement bag, etc.
Features
Determination of puncture strength
Product Features
Robust steel structure avoids energy loss caused by vibrations during testing
Separator mechanism with protection system, safety shield and self-tightening clamp with adjustable pressure
Using 5-inch color touch screen, Chinese display, touch buttons, make the operation simple and easy to understand
Automatically measure, count, print test results, and have data saving function
The thermal printing core is adopted, which does not need to use ink and ribbon, no noise during work, and fast printing speed
The instrument is equipped with a standard RS232 interface, which can be used for communication with microcomputer software (purchased separately)
