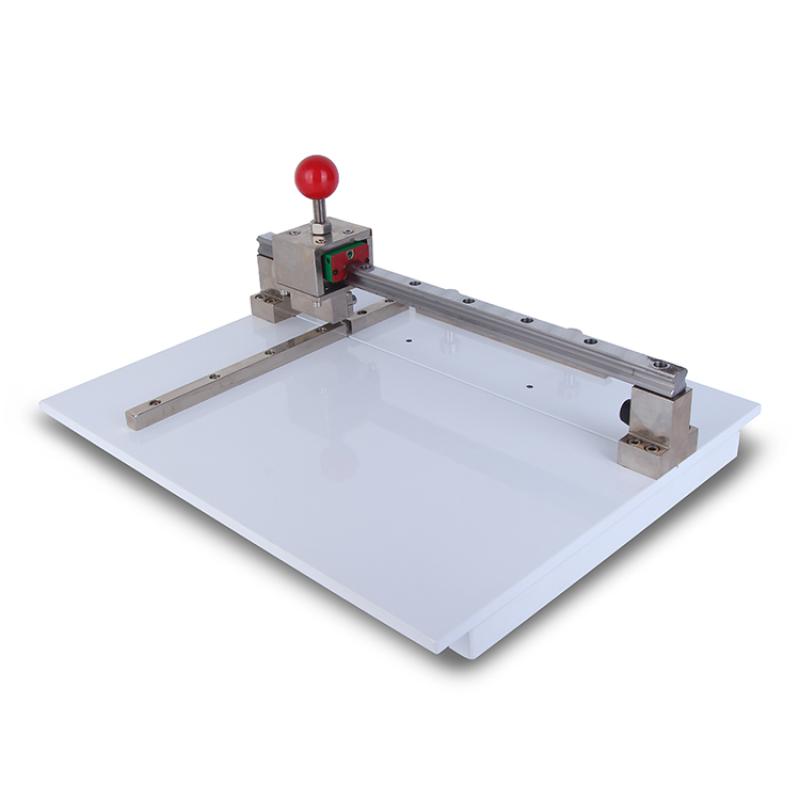

YANTE YT-BY25 Sampler edge compression strength test adhesive strength 100 * 25mm
SESpecial sampling tool designed for corrugated fibreboard edge compression strength test and adhesive strength test, can quickly and accurately cut the specified size of the sample (25 * 100mm), to meet the needs of corrugated fibreboard and carton production, scientific research and mass supervision and inspection
$598.00/set
PromotionLoading...
Coupon
Model：
YT-BY25
Similar products
-
CHINA NBC-8503B Corrugated Sampler paper Cardboard edge press knife$ 242.00SE -
CHINA ZY-BYD side pressure gluing Sampler corrugated fibreboard test aid$ 378.00SE -
YINUO YN-ECT Edge pressure/gluing Sampler Edge pressure sampling 100 * 25mm gluing sampling 80 * 25mm$ 436.00SE -
JINGHUAYIQI LD-BYQ-01 Sampler corrugated fibreboard sampling 25 * 100mm$ 302.00SE

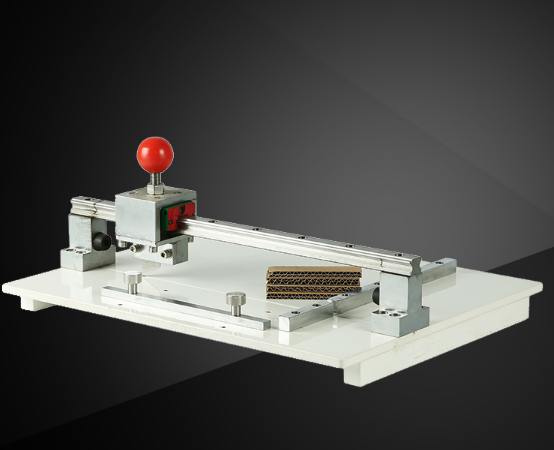

YanTe YT-BY25 Side Pressure SamplerSPEC
YanTe YT-BY25 Side Pressure SamplerDetails
YanTe YT-BY25 Side Pressure SamplerPacking list
- SKU
- NB014940
- Sampling size
- 25*100mm
- Sampling error
- ±0.5
- Sampling length
- 280mm
- Sampling thickness range
- 18mm
- Dimensions
- 440*380*200mm
- Net Weight
- 20kg
YT-BY25
Side Pressure Sampler
Special sampling tool designed for corrugated fibreboard edge compression strength test and adhesive strength test, can quickly and accurately cut the specified size of the sample (25 * 100mm), to meet the needs of corrugated fibreboard and carton production, scientific research and mass supervision and inspection
Applications
Yante YT-BY25 side pressure sampler is a special sampling device required for corrugated cardboard side pressure strength test and adhesive strength test. It can quickly and accurately cut samples of specified size. It is a satisfactory auxiliary test equipment for inspection and other departments.
FAQ
QWhat is the maximum sampling Film thickness for this Sampler?
A
Film thickness is 18mm.
QHow can this side pressure Sampler be stored better when it is not used much?
A
Hello, when not in use for a long time, anti-rust oil should be applied to the blade, guide shaft, etc., and a cover should be added to prevent dust.
QHow about the error of YT-BY25 side pressure Sampler? Is the accuracy high?
A
Hello, the sampling size error of this Sampler is ± 0.5mm.
QCan this YANTE side pressure Sampler correspond to GB/T10339?
A
Yes, please refer to the NBchao standards page for specific standards.
Knowledge
Standard
- 1GB/T 2679.17-1997《Corrugated fibreboard--Determination of edgewise crush resistance(Edge reinforced method)》
- 2GB/T 451.2-2002《Paper and board--Determination of grammage》
- 3GB/T 450-2008《Paper and board－Sampling for testing and identification of machine and cross direction, wire side and felt side》
- 4GB/T 10339-2018《Paper, board and pulp—Determination of light scattering and absorption coefficients(Kubelka-Munk method)》
