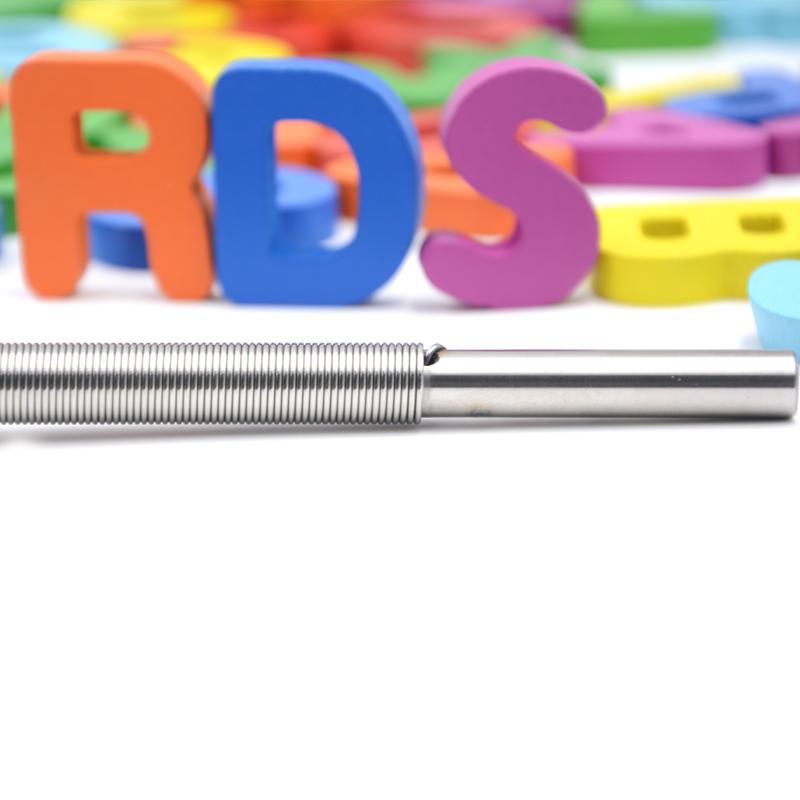

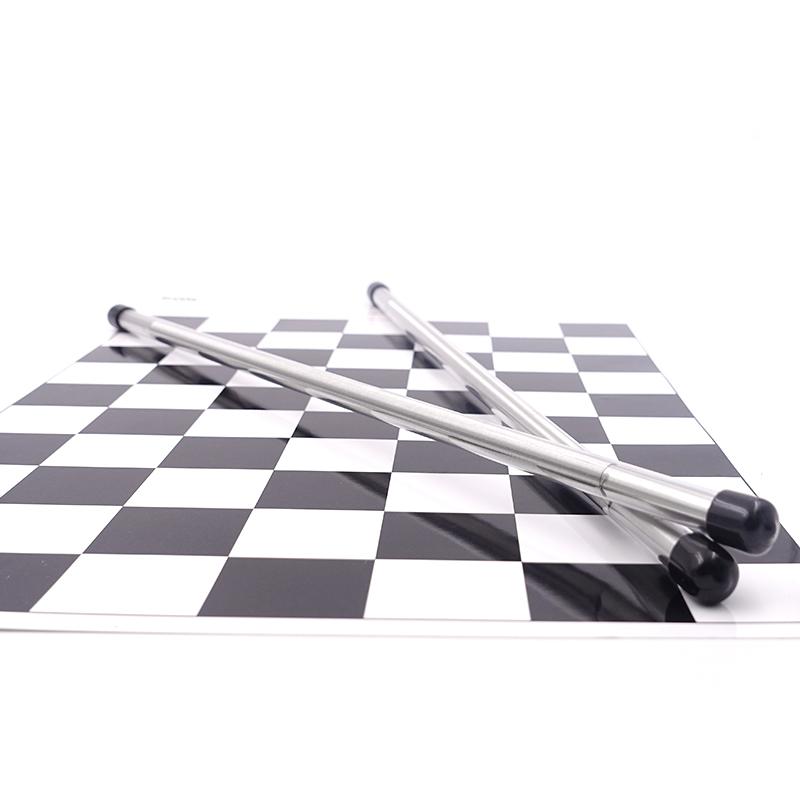

RDS 16 #3/8 "Mayer Rods WFT 36.6μm Length 400mm

SE
Wire-wound, wet film thickness 36.6μm, diameter 9.52mm, Total length 400mm, Spreader width 300mm, hand width 50 + 50mm, material stainless steel, Wire diameter 0.41mm.
$161.00/piece
PromotionLoading...
Coupon
Model：
Certificate
Contact
Details SPEC Con VIDEO CAT OI
Similar products

RDS 16# 3/8" Applicator rod 3/8 "SPEC

RDS 16# 3/8" Applicator rod 3/8 "Details

RDS 16# 3/8" Applicator rod 3/8 "Packing list

SKU
NB000015
Production process
wire-wound
WFT
36.6μm
diameter
9.52mm
Total length
400mm
application width
300mm
Grip Width
50+50mm
material
stainless steel
Wire diameter
0.41mm
16# 3/8"
Applicator rod 3/8 "
Wire-wound, wet film thickness 36.6μm, diameter 9.52mm, Total length 400mm, Spreader width 300mm, hand width 50 + 50mm, material stainless steel, Wire diameter 0.41mm.

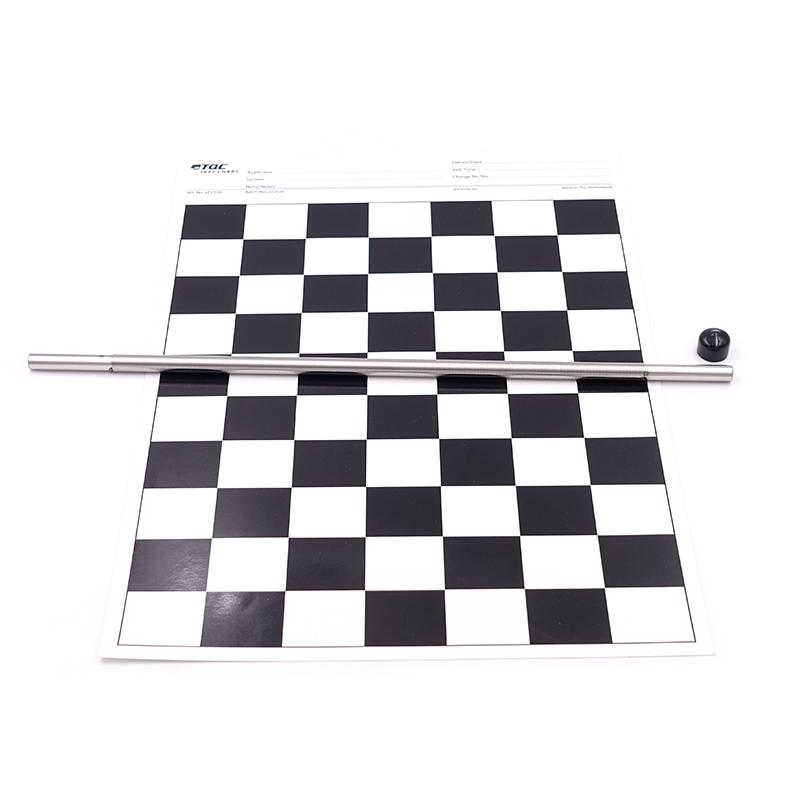

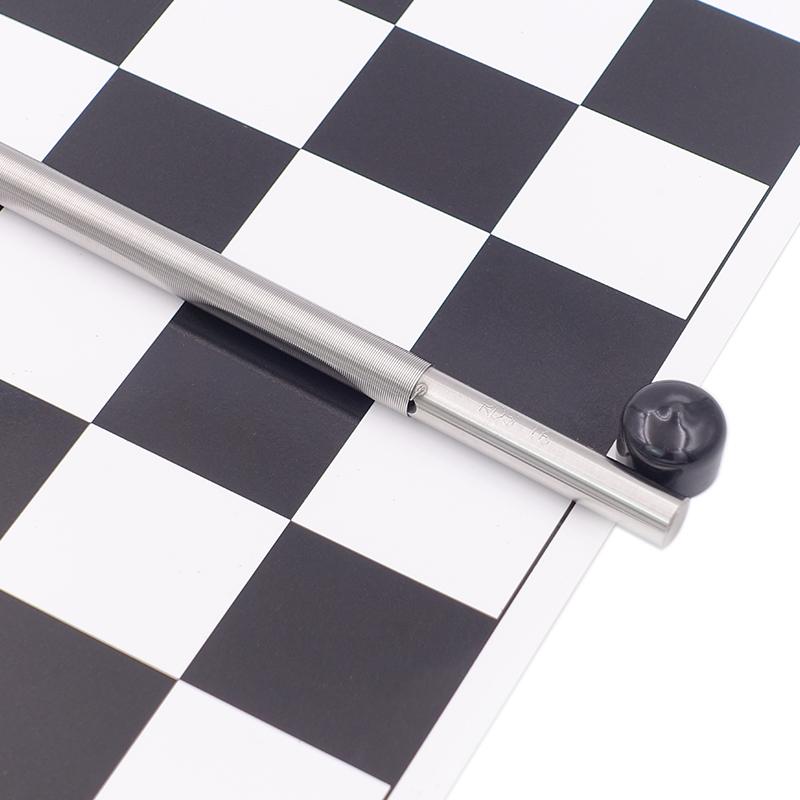

RDS 16 #3/8 "Mayer Rods WFT 36.6μm Length 400mm Picture

RDS coating Rods Figure 1

RDS coating Rods Figure 2

RDS coating Rods Figure 3

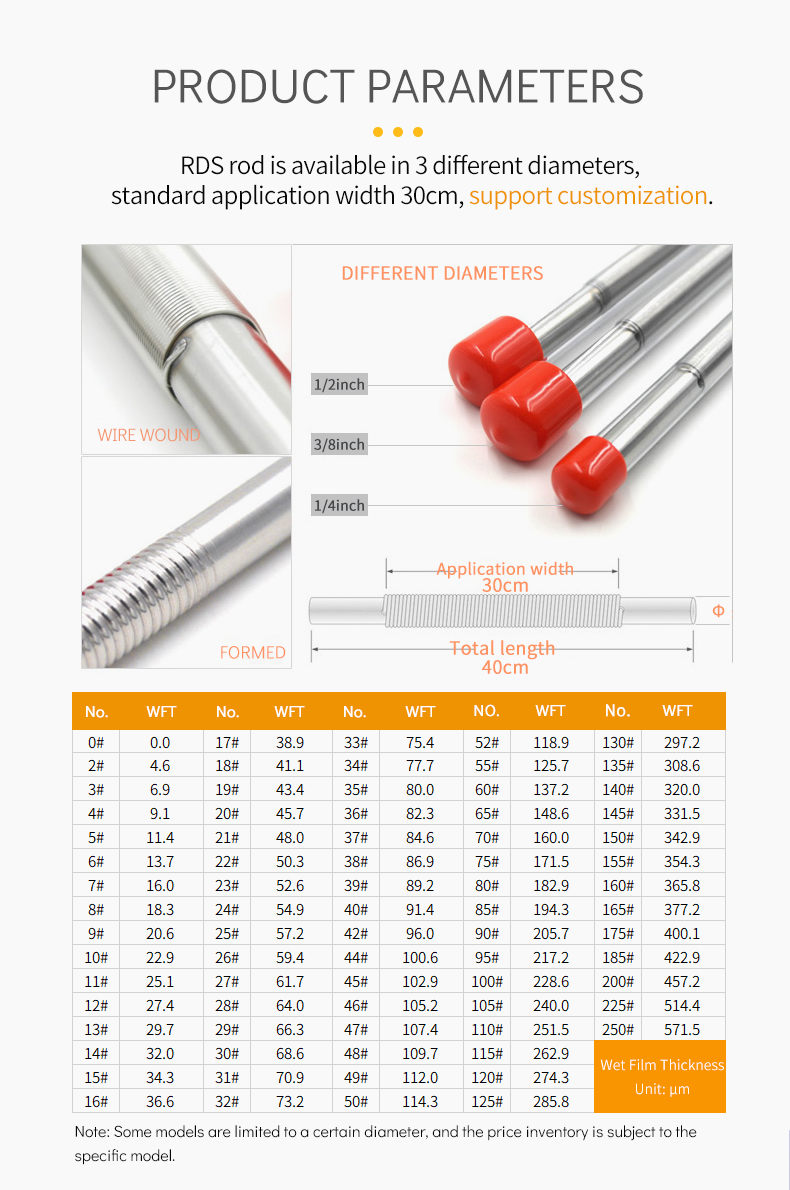

RDS coating Rods Figure 4

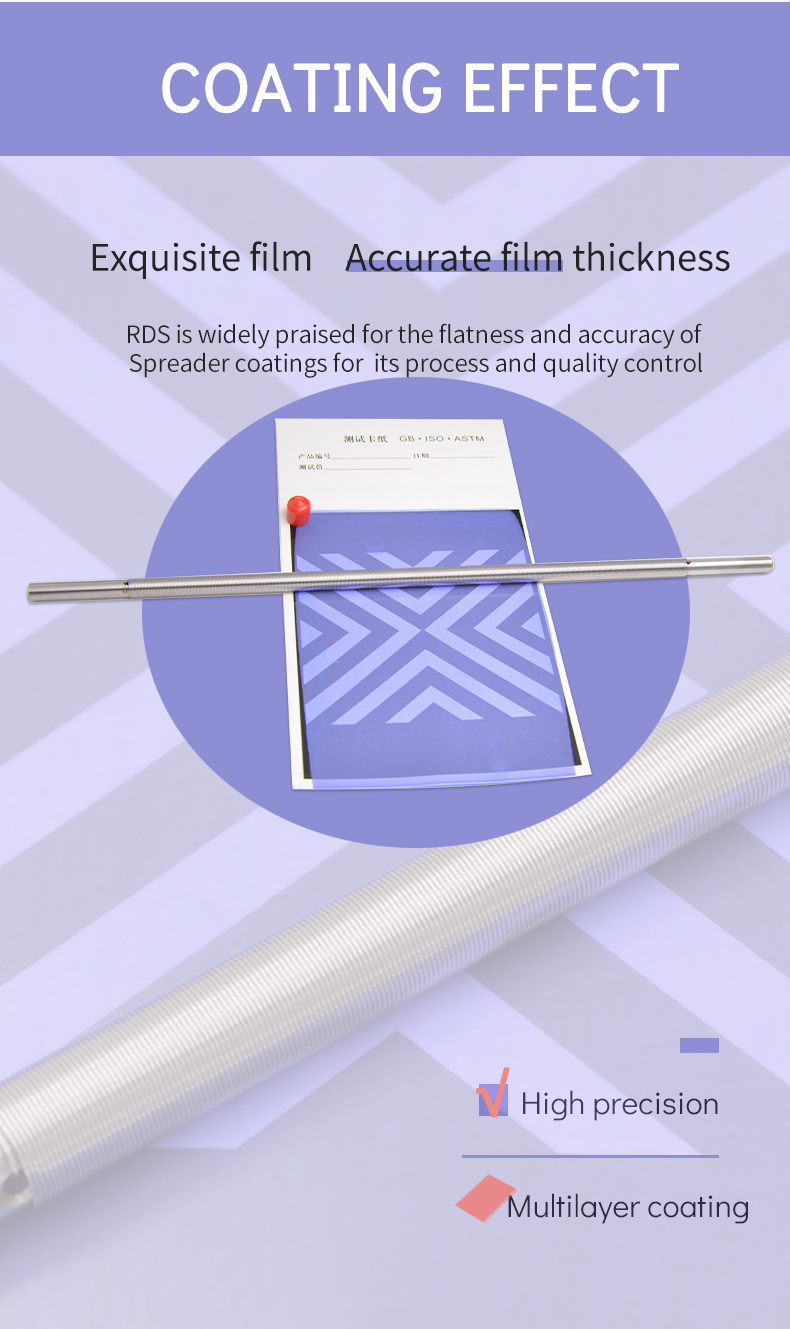

RDS coating Rods Figure 5

RDS coating Rods Figure 6

RDS coating Rods Figure 7

RDS coating Rods Figure 8

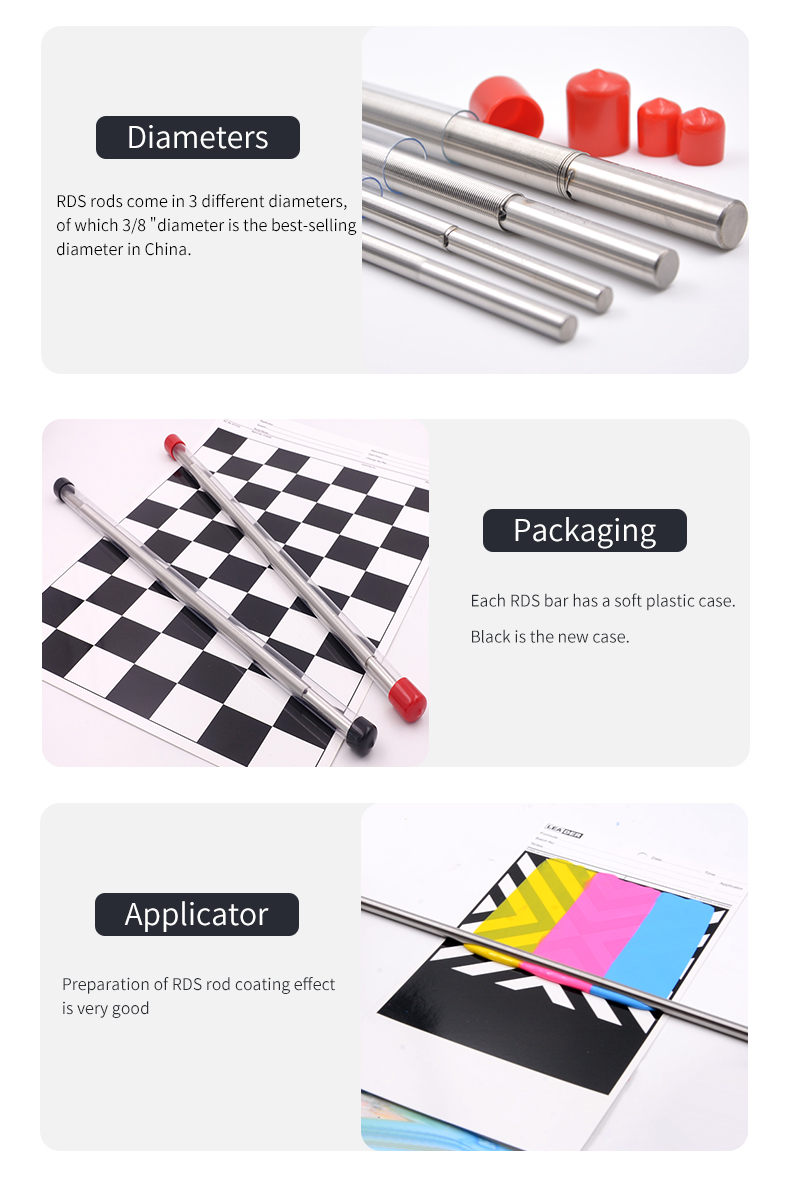

RDS coating Rods Figure 9

RDS coating Rods Figure 10



FAQ
QHow long are these 2 sticks?
A RDS wire rod is 40cm total length, application width 30cm.
QIs the RDS Applicator rod guaranteed? How long is the warranty period?
A Hello, Applicator rods are consumables that do not support warranty and have no warranty period.
QHow much um is the line 16 stick?
A American RDS rod 16 #corresponding wet film thickness is 36.6um.
QHello, how thick is No. 16 Mayer Rods film?
A Hello, the 16 #stick corresponds to the wet film thickness of 36.6um.
QIs 3/8 "the diameter of the RDS Mayer Rods? How many mm?
A Hello, yes, the diameter is 3/8 in inches, about 9.5mm.
QHow thick is film 16?
A 16 #rod, corresponding to wet film thickness 36.6um
QDo you need to match the RDS No. 16 scraper with a handle?
A Hello, the total length of the RDS scraper is 40cm, and there are 5cm hand-holding parts at both ends. There is no need for a handle.
QDo you support customization? Such as wet film thickness and length?
A Spreader rod length and main rod diameter support customization, but wet film thickness RDS has provided dozens of specifications covering more than 200 microns, and in principle does not accept customization.
QDo you have the Applicator rod involved in GB/T13217.1?
A The 16 #3/8 "Applicator rod will do
QCan silicone coatings be applied to quartz Glass substrates?
A Yes, choose quartz Glass as the substrate, with Mayer Rods Coating prepared above coated on the surface of the treated quartz Glass substrate, at room temperature to evaporate the solvent into the oven, at a certain temperature curing film formation.
