QFH Cross Hatch Cutter 1/2/3 mm Tooth QFH Cross Hatch Cutter 6 Tooth

SE
1 + 2 + 3mm tooth spacing; 6 teeth; multi-blade swirl/spin head; in line with ISO2409 standard.
$187.00/set
PromotionLoading...
Coupon
Model：
Certificate
Contact
Details SPEC Con VIDEO OI
Similar products

JingKeLian QFH 6 teeth Cross-cut adhesion TesterSPEC

JingKeLian QFH 6 teeth Cross-cut adhesion TesterDetails

JingKeLian QFH 6 teeth Cross-cut adhesion TesterPacking list

SKU
NB001507
Number of teeth
6 teeth
Tooth spacing
1mm、2mm、3mm
Application standard
ISO2409-1974
QFH 6 teeth
Cross-cut adhesion Tester
1 + 2 + 3mm tooth spacing; 6 teeth; multi-blade swirl/spin head; in line with ISO2409 standard.

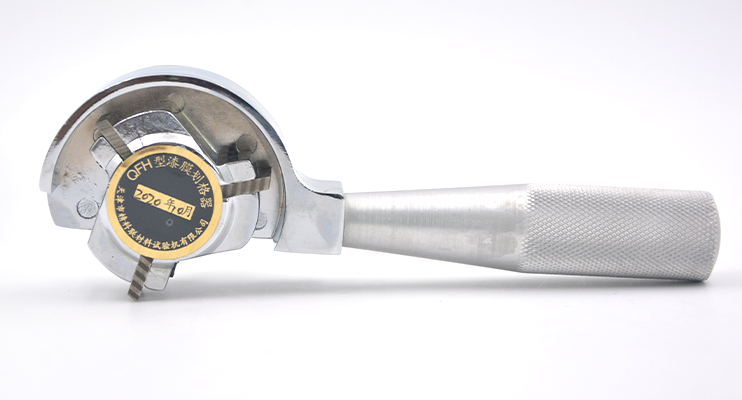

QFH Cross Hatch Cutter 1/2/3 mm Tooth QFH Cross Hatch Cutter 6 Tooth Picture

overview

JinKeLian QFH paint film crosshatcher is a special paint film crosshatcher used for coating adhesion test in the organic coating industry, which complies with ISO2409-1974 standard. In order to be suitable for different coating thickness tests, the QFH paint film scratcher provides three kinds of multi-blade cutting knives with spacing of 1mm, 2mm and 3mm, among which the multi-blade cutting knife with 1mm spacing is suitable for the test of coating thickness The multi-blade cutting knife with 2mm spacing is suitable for test pieces with coating film thickness <60~120um, and the multi-blade cutting knife with 3mm spacing is designed for special purposes.

Application

QFH paint film scratcher is suitable for testing the adhesion of organic coatings in laboratories or various construction sites.

FAQ
QWhat is the hydrophobic surface adhesion testing?
A This cross-cut method can
QQFH Cross Hatch Cutter. Is there a speed requirement?
A Hello, under normal circumstances, it is enough to maintain a speed of 20~ 50mm/s.
QIs the coating thickness of the three tool heads of the QFH scratcher the same?
A Hello, 1mm spacing is suitable for film Film thickness < 60um, 2mm spacing is suitable for film Film thickness < 60~ 120um, 3mm spacing is designed for special purposes.
QI want to do a test on the HG/T3829 standard. Is this cross-cut adhesion tester okay?
A Sure
QHello, are the three specifications of blades (1/2/3mm) on the same knife head? In addition, does this knife head contain 6 teeth and 11 teeth?
A Hello, the blades of these three specifications (1/2/3mm) are on the same knife head; in addition, customers of this scratching knife can choose one of 6 teeth or 11 teeth. Thank you for your consultation.
QAre the three teeth of this QFH scratch adhesion tester different?
A Hello, yes, the spacing is 1mm, 2mm, and 3mm respectively.
